Here you will find all available parts and drawings of the 'Metabo 01755002 (KFMPB15-10F)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

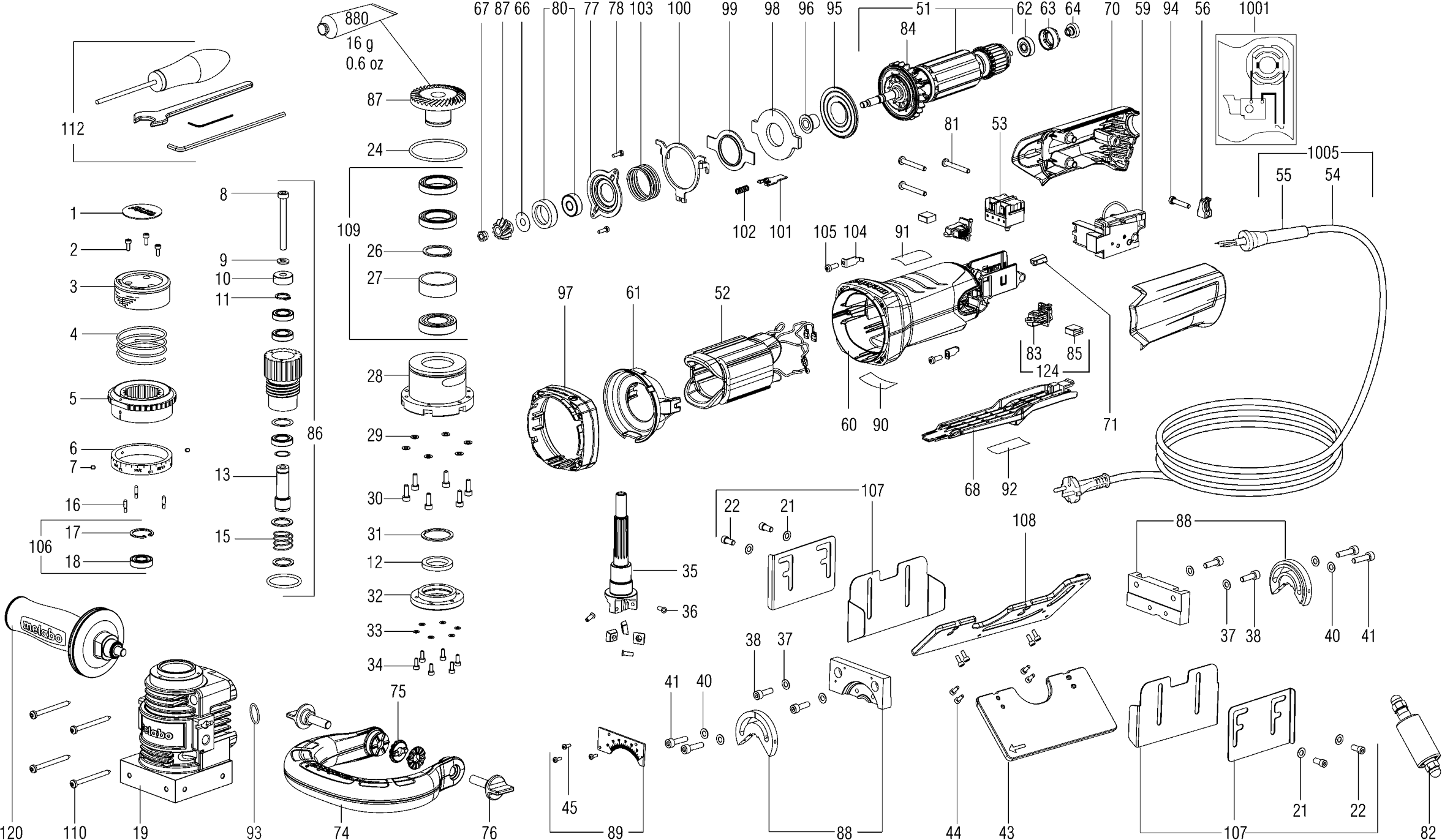

Technical drawing of model Metabo 01755002 (KFMPB15-10F)
Spare parts list of model Metabo 01755002 (KFMPB15-10F)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Typeplaatje | ||||
| 1 | 338129290 | 1.68 | 2.03 | |
| Cilinderkopschroef | ||||
| 2 | 141121980 | 1.56 | 1.89 | |
| Cap | ||||
| 3 | 341211660 | 60.59 | 73.31 | |
| Pressure spring | ||||
| 4 | 342004090 | 13.48 | 16.31 | |
| Verstelring | ||||
| 5 | 341211670 | 175.84 | 212.77 | |
| Maataanduiding | ||||
| 6 | 341211680 | 43.15 | 52.21 | |
| Stelschroef | ||||
| 7 | 141124550 | 1.56 | 1.89 | |
| Schroef M6x55 | ||||
| 8 | 341705370 | 3.71 | 4.49 | |
| Spring washer | ||||
| 9 | 141150280 | 1.56 | 1.89 | |
| Afstandshuls | ||||
| 10 | 341211690 | 5.18 | 6.27 | |
| RETAINING RING | ||||
| 11 | 141180060 | 1.56 | 1.89 | |
| Felt ring | ||||
| 12 | 344071080 | 7.22 | 8.74 | |
| Sleeve | ||||
| 13 | 341211710 | 37.65 | 45.56 | |
| Pressure spring | ||||
| 15 | 342004100 | 5.18 | 6.27 | |
| Pin | ||||
| 16 | 341520350 | 13.48 | 16.31 | |
| Retaining ring | ||||
| 17 | 141180660 | 1.68 | 2.03 | |
| Deep Groove Ball Bearing, 10X 22X 6 | ||||
| 18 | 143115370 | 8.89 | 10.76 | |
| Tandwielhuis | ||||
| 19 | 315105570 | 603.09 | 729.74 | |
| Toothed lock washer | ||||
| 21 | 141150420 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 22 | 141113670 | 1.68 | 2.03 | |
| O-ring | ||||
| 24 | 344113520 | 1.68 | 2.03 | |
| Retaining ring | ||||
| 26 | 141180150 | 1.56 | 1.89 | |
| Transformation ring | ||||
| 27 | 341211760 | 16.25 | 19.66 | |
| Housing | ||||
| 28 | 341211740 | 201.99 | 244.41 | |
| Toothed lock washer | ||||
| 29 | 141150410 | 1.68 | 2.03 | |
| Cilinderkopschroef | ||||
| 30 | 141113590 | 1.68 | 2.03 | |
| Retaining ring | ||||
| 31 | 141180370 | 1.56 | 1.89 | |
| Flange | ||||
| 32 | 341211750 | 37.65 | 45.56 | |
| Tandveerring | ||||
| 33 | 141152270 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 34 | 141121980 | 1.56 | 1.89 | |
| Spindle | ||||
| 35 | 341605070 | 539.38 | 652.65 | |
| Schroef,M4x10 TX15 | ||||
| 36 | 341705330 | 13.48 | 16.31 | |
| Toothed lock washer | ||||
| 37 | 141150420 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 38 | 141113690 | 1.68 | 2.03 | |
| Spring washer | ||||
| 40 | 141150270 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 41 | 141113710 | 1.68 | 2.03 | |
| Geleidingsrail A | ||||
| 43 | 341162150 | 348.32 | 421.47 | |
| Cilinderkopschroef | ||||
| 44 | 141121980 | 1.56 | 1.89 | |
| Srew | ||||
| 45 | 341722580 | 1.56 | 1.89 | |
| Anker compl., 230V | ||||
| 51 | 310011140 | 87.60 | 106.00 | |
| Field | ||||
| 52 | 311012180 | 48.48 | 58.66 | |
| Schakelaar 2-polig | ||||
| 53 | 343410280 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 54 | 399999990 | |||
| No information available, not orderable | ||||
| 55 | 399999990 | |||
| Cable clip | ||||
| 56 | 343362490 | 1.68 | 2.03 | |
| Elektro.unit,230V / 50/60Hz | ||||
| 59 | 343083750 | 48.48 | 58.66 | |
| Motor housing | ||||
| 60 | 315013710 | 10.38 | 12.56 | |
| Luchtgeleidingsschijf | ||||
| 61 | 339151210 | 1.56 | 1.89 | |
| Groefkogellager,6x19x6 | ||||
| 62 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 63 | 344097870 | 1.56 | 1.89 | |
| Tachoschijf | ||||
| 64 | 343433060 | 2.28 | 2.76 | |
| Washer,7.05x19.5x0.2 | ||||
| 66 | 339006390 | 1.56 | 1.89 | |
| Zeskantmoer | ||||
| 67 | 341100940 | 1.68 | 2.03 | |
| Schakelhendel | ||||
| 68 | 343434570 | 3.02 | 3.65 | |
| Two-part engine hood, black | ||||
| 70 | 316070220 | 11.74 | 14.21 | |
| Motor cap 2 parts black | ||||
| 70 | 343433920 | 5.87 | 7.10 | |
| Light guide | ||||
| 71 | 343435170 | 1.56 | 1.89 | |
| Beugelgreep compl. | ||||
| 74 | 343399690 | 18.80 | 22.75 | |
| Slotted disc | ||||
| 75 | 341071240 | 12.23 | 14.80 | |
| Vleugelschroef compl. | ||||
| 76 | 341112850 | 2.28 | 2.76 | |
| Vaste lagerdeksel | ||||
| 77 | 339137240 | 4.51 | 5.46 | |
| Lensschroef | ||||
| 78 | 141124170 | 1.56 | 1.89 | |
| Complete bushing | ||||
| 80 | 316063730 | 24.23 | 29.32 | |
| Self-tap. fill. h. screw | ||||
| 81 | 141116980 | 1.56 | 1.89 | |
| Rol compl. | ||||
| 82 | 316063390 | 148.53 | 179.72 | |
| Brush holder set | ||||
| 83 | 316065420 | 12.23 | 14.80 | |
| Waaier m. Stofbeschermkorf | ||||
| 84 | 316054850 | 3.71 | 4.49 | |
| Carbon brush set uitsch. | ||||
| 85 | 316065450 | 11.74 | 14.21 | |
| Complete internal threaded ring | ||||
| 86 | 316094170 | 296.22 | 358.43 | |
| Tandwiel set | ||||
| 87 | 316094190 | 375.44 | 454.28 | |
| Huis compl. | ||||
| 88 | 316094210 | 256.98 | 310.95 | |
| Hoek compl. | ||||
| 89 | 316094230 | 32.27 | 39.05 | |
| Typeplaatje | ||||
| 90 | 338066380 | 1.56 | 1.89 | |
| Aanduidingsplaatje waarschuwing | ||||
| 91 | 338127220 | 3.71 | 4.49 | |
| No information available, not orderable | ||||
| 92 | 399999990 | |||
| O-Ring | ||||
| 93 | 143196040 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 94 | 141117060 | 1.68 | 2.03 | |
| Rollenhouder | ||||
| 95 | 341013460 | 12.23 | 14.80 | |
| Afstandshuls | ||||
| 96 | 341212170 | 2.28 | 2.76 | |
| Tussenflens | ||||
| 97 | 343435920 | 5.18 | 6.27 | |
| Remvoering | ||||
| 98 | 339011590 | 7.22 | 8.74 | |
| Draagplaat | ||||
| 99 | 343433710 | 1.56 | 1.89 | |
| Schakelhendel | ||||
| 100 | 339136010 | 1.68 | 2.03 | |
| Schakel-element | ||||
| 101 | 343433700 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 102 | 342003420 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 103 | 342003930 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 104 | 399999990 | |||
| No information available, not orderable | ||||
| 105 | 399999990 | |||
| Complete Groove ball bearing | ||||
| 106 | 316094890 | 26.95 | 32.61 | |
| Complete protective plate | ||||
| 107 | 316094900 | 100.74 | 121.90 | |
| Guide rail complete. | ||||
| 108 | 316094910 | 539.38 | 652.65 | |
| Groefkogellager cpl. | ||||
| 109 | 316094920 | 94.12 | 113.89 | |
| Self-tap. fill. h. screw | ||||
| 110 | 341701470 | 1.56 | 1.89 | |
| Screwdriver set | ||||
| 112 | 316064340 | 32.27 | 39.05 | |
| Handgreep extra compl. | ||||
| 120 | 316046590 | 8.89 | 10.76 | |
| Carbon brush set with holder 230V | ||||
| 124 | 316067170 | 21.64 | 26.18 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130970 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 1001 | 338505950 | |||
| Cable with sleeve | ||||
| 1005 | 316067340 | 21.64 | 26.18 | |
