Here you will find all available parts and drawings of the 'Metabo 01752002 ( KFM15-10F )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

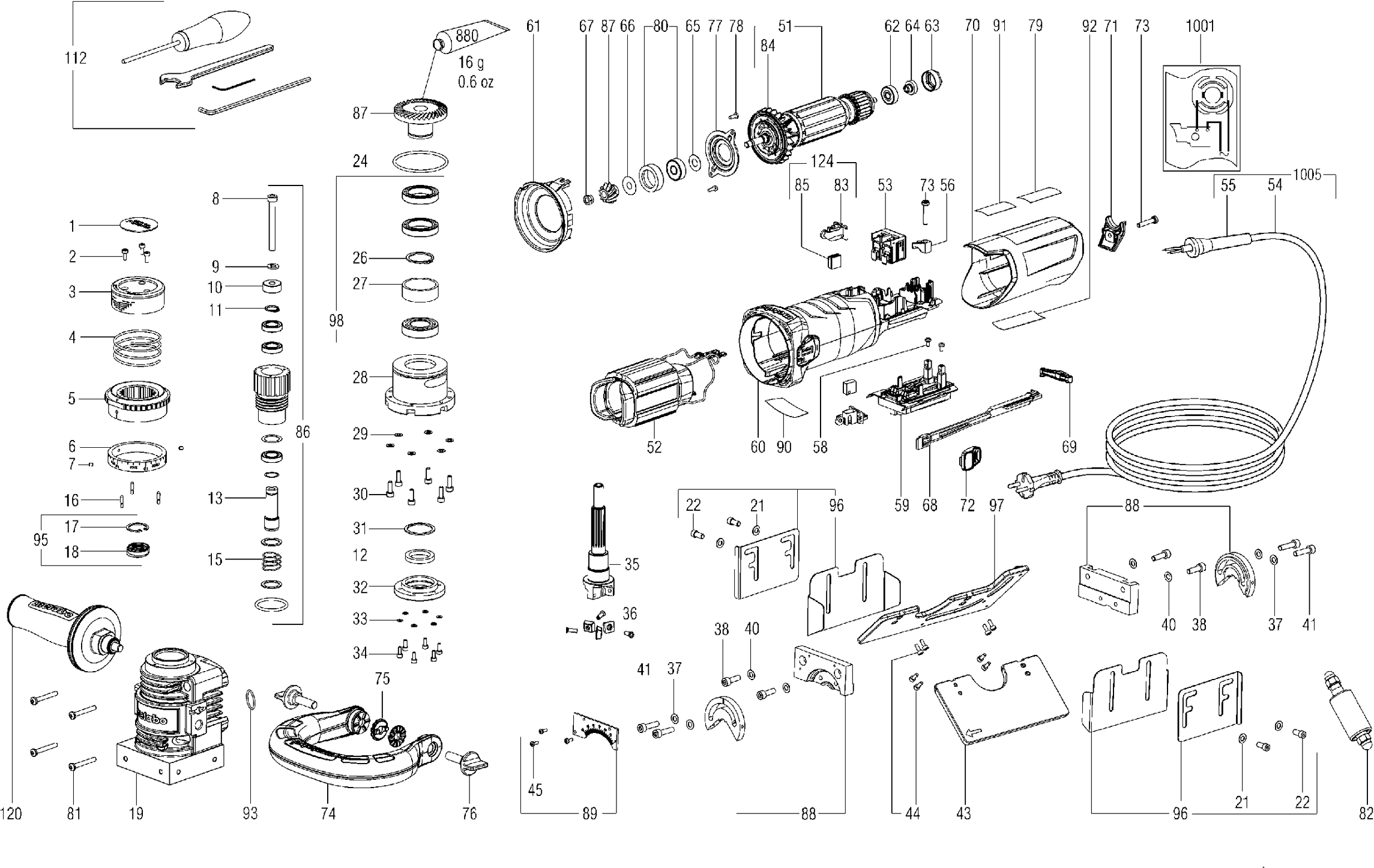

Technical drawing of model Metabo 01752002 ( KFM15-10F )

Spare parts list of model Metabo 01752002 ( KFM15-10F )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Typeplaatje
1 338129270 1.67 2.02
Cilinderkopschroef
2 141121980 1.55 1.88
Cap
3 341211660 60.59 73.31
Pressure spring
4 342004090 13.48 16.31
Verstelring
5 341211670 175.84 212.77
Maataanduiding
6 341211680 43.15 52.21
Stelschroef
7 141124550 1.55 1.88
Schroef M6x55
8 341705370 3.71 4.49
Spring washer
9 141150280 1.55 1.88
Afstandshuls
10 341211690 5.18 6.27
RETAINING RING
11 141180060 1.55 1.88
Felt ring
12 344071080 7.22 8.74
Sleeve
13 341211710 37.65 45.56
Pressure spring
15 342004100 5.18 6.27
Pin
16 341520350 13.48 16.31
Retaining ring
17 141180660 1.67 2.02
Deep Groove Ball Bearing, 10X 22X 6
18 143115370 8.89 10.76
Tandwielhuis
19 315105570 603.09 729.74
No information available, not orderable
21 6304084039
Cilinderkopschroef
22 141113670 1.67 2.02
O-ring
24 344113520 1.67 2.02
Retaining ring
26 141180150 1.55 1.88
Transformation ring
27 341211760 16.25 19.66
Housing
28 341211740 201.99 244.41
Toothed lock washer
29 141150410 1.67 2.02
Cilinderkopschroef
30 141113590 1.67 2.02
Retaining ring
31 141180370 1.55 1.88
Flange
32 341211750 37.65 45.56
Tandveerring
33 141152270 1.55 1.88
Cilinderkopschroef
34 141121980 1.55 1.88
Spindle
35 341605070 539.38 652.65
Schroef,M4x10 TX15
36 341705330 13.48 16.31
No information available, not orderable
37 6304084039
Cilinderkopschroef
38 141113690 1.67 2.02
Spring washer
40 141150270 1.55 1.88
Cilinderkopschroef
41 141113710 1.67 2.02
Geleidingsrail A
43 341162150 348.32 421.47
Cilinderkopschroef
44 141121980 1.55 1.88
Srew
45 341722580 1.55 1.88
Anker compl., 230V
51 310010990 67.33 81.47
Field
52 311012180 48.48 58.66
Schakelaar 2-polig
53 343410120 10.38 12.56
No information available, not orderable
54 399999990
No information available, not orderable
55 399999990
Cable clip
56 343362490 1.67 2.02
Fill. head screw(DIN 7985)
58 141121430 1.55 1.88
Electronics compl.
59 316068530 60.59 73.31
Electro.unit, 230V 50/60Hz
59 343086490 48.48 58.66
Motor housing 2 part
60 315013520 10.38 12.56
Luchtgeleidingsschijf
61 339151180 1.55 1.88
Groefkogellager,6x19x6
62 143115690 2.28 2.76
Bus rubber
63 344097870 1.55 1.88
Tachoschijf
64 343433060 2.28 2.76
Washer,8.05x17x0.4
65 339133060 1.55 1.88
Washer,7.05x19.5x0.2
66 339006390 1.55 1.88
Zeskantmoer
67 341100940 1.67 2.02
Schakelstang
68 343433070 1.55 1.88
Rocker switch
69 343433090 1.55 1.88
Cap
70 343433030 3.71 4.49
End cap
71 343433100 1.55 1.88
Schakelschuif
72 343437100 1.55 1.88
Self-tap. fill. h. screw
73 141117060 1.67 2.02
Beugelgreep compl.
74 343399690 18.80 22.75
Slotted disc
75 341071240 12.23 14.80
Vleugelschroef compl.
76 341112850 2.28 2.76
Vaste lagerdeksel
77 339137240 4.51 5.46
Lensschroef
78 141124170 1.55 1.88
Aanduidingsplaatje
79 338129250 1.67 2.02
Complete bushing
80 316063730 24.23 29.32
Self-tap. fill. h. screw
81 141116980 1.55 1.88
Rol compl.
82 316063390 148.53 179.72
Brush holder set
83 316065420 12.23 14.80
Waaier m. Stofbeschermkorf
84 316054850 3.71 4.49
Carbon brush set uitsch.
85 316065450 11.74 14.21
Complete internal threaded ring
86 316094170 296.22 358.43
Tandwiel set
87 316094190 375.44 454.28
Huis compl.
88 316094210 256.98 310.95
Hoek compl.
89 316094230 32.27 39.05
Typeplaatje
90 338069360 1.67 2.02
Aanduidingsplaatje waarschuwing
91 338127220 3.71 4.49
No information available, not orderable
92 399999990
O-Ring
93 143196040 1.55 1.88
Complete Groove ball bearing
95 316094890 26.95 32.61
Complete protective plate
96 316094900 100.74 121.90
Guide rail complete.
97 316094910 539.38 652.65
Groefkogellager cpl.
98 316094920 94.12 113.89
Screwdriver set
112 316064340 32.27 39.05
Handgreep extra compl.
120 316046590 8.89 10.76
Carbon brush set with holder 230V
124 316067170 21.64 26.18
Grease tube 50 gr. 1,8oz
880 344130970 11.74 14.21
No information available, not orderable
1001 338505780
Cable with cable entry
1005 316067320 21.64 26.18
