Here you will find all available parts and drawings of the 'Metabo 00971000 (HWW4000/25G)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

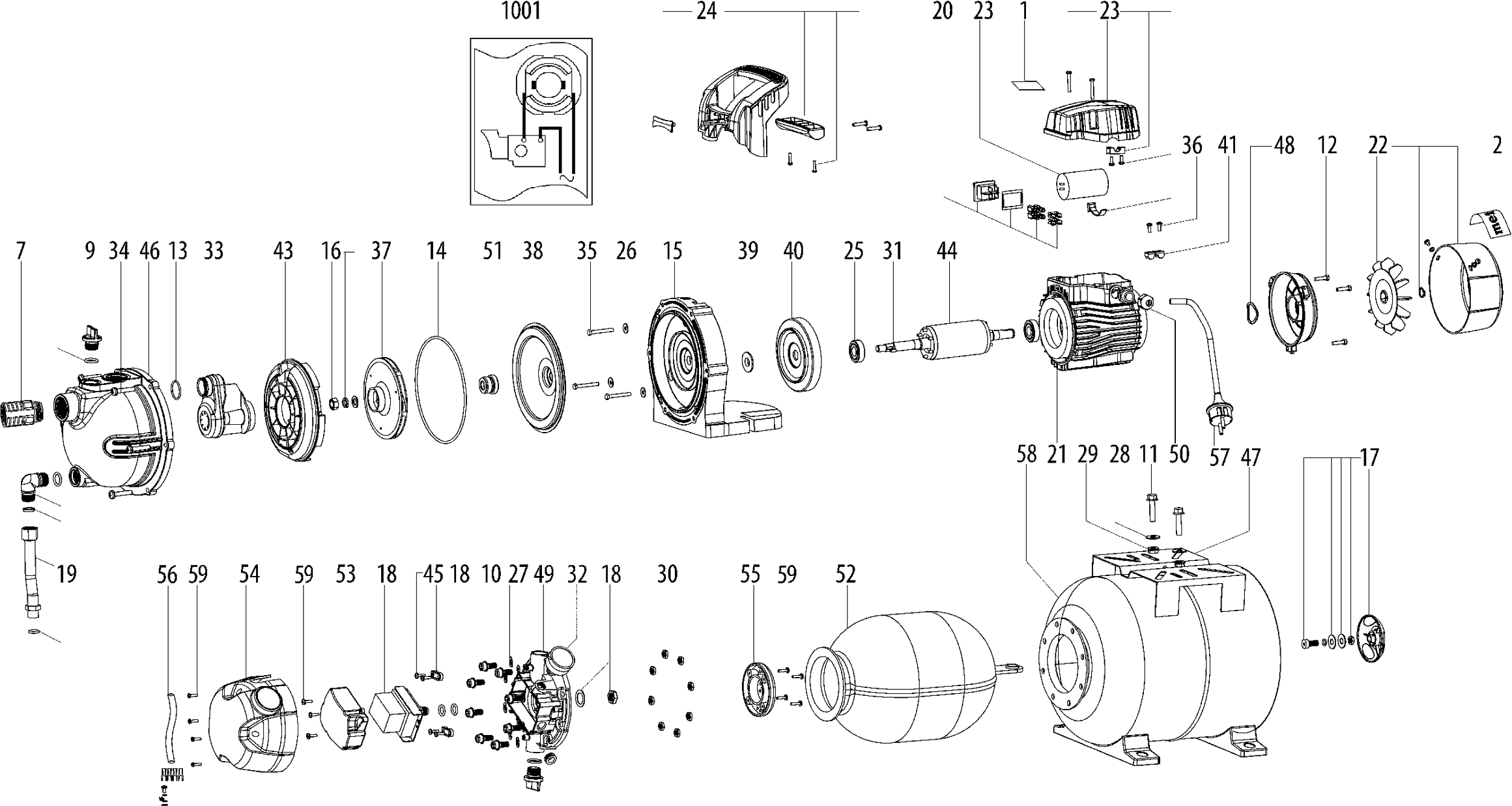

Technical drawing of model Metabo 00971000 (HWW4000/25G)
Spare parts list of model Metabo 00971000 (HWW4000/25G)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Typeplaatje | ||||
| 1 | 338061190 | 1.56 | 1.89 | |
| Metabo-Typenschild, HWW 4000/25 G, 00971 | ||||
| 2 | 338124690 | 1.56 | 1.89 | |
| CHECK VALV | ||||
| 7 | 343441820 | 3.71 | 4.49 | |
| SLUITSCHROEF 1/2" | ||||
| 9 | 341705140 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 10 | 141114000 | 1.68 | 2.03 | |
| Zeskantschroef | ||||
| 11 | 141113330 | 1.68 | 2.03 | |
| Zeskantschroef | ||||
| 12 | 141115940 | 1.56 | 1.89 | |
| O-ring | ||||
| 13 | 143195540 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 14 | 143195550 | |||
| MOTORSOKKEL | ||||
| 15 | 315418470 | 13.48 | 16.31 | |
| Fixing Set cpl. | ||||
| 16 | 316057110 | 1.56 | 1.89 | |
| Ventiel compl. | ||||
| 17 | 316057130 | 5.87 | 7.10 | |
| Pressure switch compl. | ||||
| 18 | 316057140 | 26.95 | 32.61 | |
| Pressure hose Et | ||||
| 19 | 316057150 | 10.38 | 12.56 | |
| Schakelaar compl. | ||||
| 20 | 316057190 | 10.38 | 12.56 | |
| Stator complete | ||||
| 21 | 316057200 | 74.13 | 89.70 | |
| Complete fan | ||||
| 22 | 316057300 | 3.02 | 3.65 | |
| Deksel compl. | ||||
| 23 | 316057340 | 3.02 | 3.65 | |
| Handgriff vollst. | ||||
| 24 | 316057370 | 7.22 | 8.74 | |
| Kogellager | ||||
| 25 | 320050840 | 3.71 | 4.49 | |
| Washer | ||||
| 26 | 339006950 | 1.56 | 1.89 | |
| Washer | ||||
| 27 | 339012060 | 1.56 | 1.89 | |
| Washer | ||||
| 28 | 339012070 | 1.56 | 1.89 | |
| Nut | ||||
| 29 | 341102430 | 1.56 | 1.89 | |
| Zeskante moer | ||||
| 30 | 141131010 | 1.56 | 1.89 | |
| Sleufsteen | ||||
| 31 | 341161690 | 1.56 | 1.89 | |
| Manometer | ||||
| 32 | 341161720 | 11.74 | 14.21 | |
| Tube | ||||
| 33 | 341161740 | 5.18 | 6.27 | |
| Screw | ||||
| 34 | 341705060 | 1.56 | 1.89 | |
| Zeskantschroef | ||||
| 35 | 341705070 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 36 | 341705150 | |||
| Wheel | ||||
| 37 | 343436790 | 7.22 | 8.74 | |
| Wheel | ||||
| 37 | 343435650 | 7.22 | 8.74 | |
| Cover | ||||
| 38 | 343435660 | 8.89 | 10.76 | |
| Centrifugeerschijf | ||||
| 39 | 343435670 | 1.56 | 1.89 | |
| Frontplaat | ||||
| 40 | 343435680 | 5.18 | 6.27 | |
| Cable clip | ||||
| 41 | 343436720 | 1.56 | 1.89 | |
| Cover | ||||
| 42 | 343436740 | 60.59 | 73.31 | |
| STRAALPIJP | ||||
| 43 | 343436820 | 3.71 | 4.49 | |
| ARMATURE | ||||
| 44 | 343436840 | 16.25 | 19.66 | |
| CABLE CLIPS | ||||
| 45 | 343436880 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 46 | 343436890 | |||
| Base plate | ||||
| 47 | 343436910 | 8.89 | 10.76 | |
| Motordeksel | ||||
| 48 | 343436960 | 5.87 | 7.10 | |
| Cover f. flange | ||||
| 49 | 343436980 | 8.89 | 10.76 | |
| Kabeldoorvoer | ||||
| 50 | 344099850 | 1.56 | 1.89 | |
| Gasket | ||||
| 51 | 344099860 | 10.38 | 12.56 | |
| Rubber Bellows | ||||
| 52 | 344099910 | 13.48 | 16.31 | |
| Schakelaar afdekking | ||||
| 53 | 344099930 | 1.56 | 1.89 | |
| Cover, outer | ||||
| 54 | 344099940 | 3.02 | 3.65 | |
| Cover | ||||
| 55 | 344099950 | 1.56 | 1.89 | |
| Cable | ||||
| 56 | 344499800 | 5.18 | 6.27 | |
| Kabel compl. | ||||
| 57 | 344499820 | 32.27 | 39.05 | |
| Tank | ||||
| 58 | 341165940 | 74.13 | 89.70 | |
| Screw | ||||
| 59 | 341722090 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 1001 | 338505870 | |||
