Here you will find all available parts and drawings of the 'Metabo 00969000 (HWW3500/25Inox)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

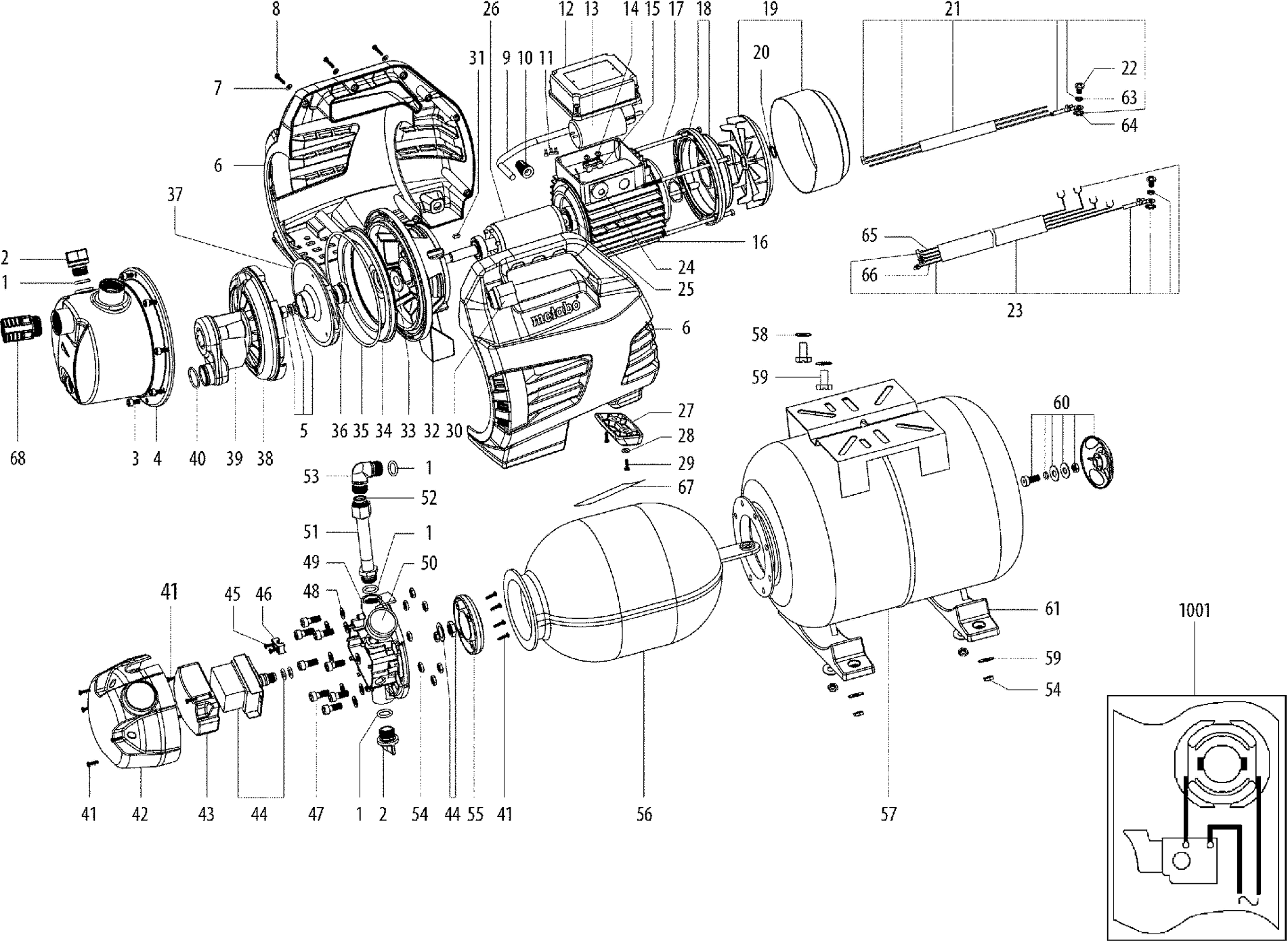

Technical drawing of model Metabo 00969000 (HWW3500/25Inox)
Spare parts list of model Metabo 00969000 (HWW3500/25Inox)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| O-ring | ||||
| 1 | 143195620 | 1.67 | 2.02 | |
| SLUITSCHROEF | ||||
| 2 | 341722140 | 1.67 | 2.02 | |
| Screw | ||||
| 3 | 341722060 | 1.67 | 2.02 | |
| Pump housing | ||||
| 4 | 341165190 | 70.83 | 85.70 | |
| Bevestigingsset cpl. | ||||
| 5 | 316060210 | 1.67 | 2.02 | |
| Huis compl. | ||||
| 6 | 316060370 | 35.72 | 43.22 | |
| Washer | ||||
| 7 | 339009240 | 1.67 | 2.02 | |
| Screw | ||||
| 8 | 341722120 | 1.67 | 2.02 | |
| Kabel m.stekker | ||||
| 9 | 344530020 | 18.28 | 22.12 | |
| Kabeldoorvoer | ||||
| 10 | 344112900 | 1.67 | 2.02 | |
| Kabelbinder | ||||
| 11 | 341165220 | 1.67 | 2.02 | |
| Terminals Box Cover | ||||
| 12 | 341165260 | 2.43 | 2.94 | |
| Condenser | ||||
| 13 | 343410720 | 9.36 | 11.33 | |
| Condensator compl. 16µF/450 V | ||||
| 13 | 316057170 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 14 | 341705150 | |||
| Cable clip | ||||
| 15 | 343436720 | 1.67 | 2.02 | |
| Stator compl. | ||||
| 16 | 316060380 | 94.99 | 114.94 | |
| Screw | ||||
| 17 | 341722050 | 1.67 | 2.02 | |
| Motorflens compl. | ||||
| 18 | 316060240 | 18.28 | 22.12 | |
| Waaier met ventilator cap | ||||
| 19 | 316060300 | 6.05 | 7.32 | |
| Circlip | ||||
| 20 | 342024010 | 1.67 | 2.02 | |
| Kabel compl. | ||||
| 21 | 344530010 | 15.31 | 18.53 | |
| Screw | ||||
| 22 | 341722130 | 1.67 | 2.02 | |
| Kabel compl. | ||||
| 23 | 344112920 | 10.82 | 13.09 | |
| Kabeldoorvoer | ||||
| 24 | 344112890 | 1.67 | 2.02 | |
| Kogellager | ||||
| 25 | 320050840 | 3.89 | 4.71 | |
| ARMATURE | ||||
| 26 | 310011380 | 46.99 | 56.86 | |
| Rear leg | ||||
| 27 | 315419050 | 1.67 | 2.02 | |
| Washer | ||||
| 28 | 339009290 | 1.67 | 2.02 | |
| Screw | ||||
| 29 | 341722080 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 30 | 343410750 | 10.82 | 13.09 | |
| Sleufsteen | ||||
| 31 | 341161690 | 1.67 | 2.02 | |
| Motorflens | ||||
| 32 | 315419040 | 35.72 | 43.22 | |
| Centrifugeerschijf | ||||
| 33 | 343435670 | 1.67 | 2.02 | |
| Flange | ||||
| 34 | 341039610 | 18.28 | 22.12 | |
| No longer available, no replacement | ||||
| 35 | 143195550 | |||
| Gasket | ||||
| 36 | 344099860 | 10.82 | 13.09 | |
| Wheel | ||||
| 37 | 343435650 | 7.58 | 9.17 | |
| STRAALPIJP | ||||
| 38 | 343440740 | 9.36 | 11.33 | |
| Tube | ||||
| 39 | 341161740 | 5.49 | 6.64 | |
| O-ring | ||||
| 40 | 143195540 | 1.67 | 2.02 | |
| Screw | ||||
| 41 | 341722090 | 1.67 | 2.02 | |
| Cover, outer | ||||
| 42 | 344099940 | 3.20 | 3.87 | |
| Schakelaar afdekking | ||||
| 43 | 344099930 | 1.67 | 2.02 | |
| Drukschakelaar compl. | ||||
| 44 | 316060390 | 35.72 | 43.22 | |
| Screw | ||||
| 45 | 341705160 | 1.67 | 2.02 | |
| CABLE CLIPS | ||||
| 46 | 343436880 | 1.67 | 2.02 | |
| Zeskantschroef | ||||
| 47 | 141110320 | 1.79 | 2.17 | |
| Washer | ||||
| 48 | 339012060 | 1.67 | 2.02 | |
| Cover f. flange | ||||
| 49 | 343436980 | 9.36 | 11.33 | |
| Manometer | ||||
| 50 | 341165230 | 13.93 | 16.86 | |
| PRESSURE HOSE | ||||
| 51 | 344112940 | 18.28 | 22.12 | |
| Gasket | ||||
| 52 | 339012940 | 1.67 | 2.02 | |
| Angle | ||||
| 53 | 341165270 | 1.67 | 2.02 | |
| Nut | ||||
| 54 | 341109010 | 1.67 | 2.02 | |
| Filter (flange) | ||||
| 55 | 344112970 | 1.67 | 2.02 | |
| Rubber Bellows | ||||
| 56 | 344099910 | 15.31 | 18.53 | |
| TANK | ||||
| 57 | 341165360 | 126.62 | 153.21 | |
| Schroef zeskant | ||||
| 58 | 341722030 | 1.67 | 2.02 | |
| Washer | ||||
| 59 | 339009260 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 60 | 316060400 | |||
| Foot | ||||
| 61 | 341165350 | 12.19 | 14.75 | |
| Washer | ||||
| 63 | 339009230 | 1.67 | 2.02 | |
| Washer | ||||
| 64 | 341722110 | 1.67 | 2.02 | |
| Tube | ||||
| 65 | 341165160 | 1.67 | 2.02 | |
| Tube | ||||
| 66 | 341165150 | 1.67 | 2.02 | |
| Typeplaatje | ||||
| 67 | 338061170 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 68 | 628803000 | |||
| No information available, not orderable | ||||
| 1001 | 338510380 | |||
