Here you will find all available parts and drawings of the 'Metabo 0250330110-10 (HWW3300-20S)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

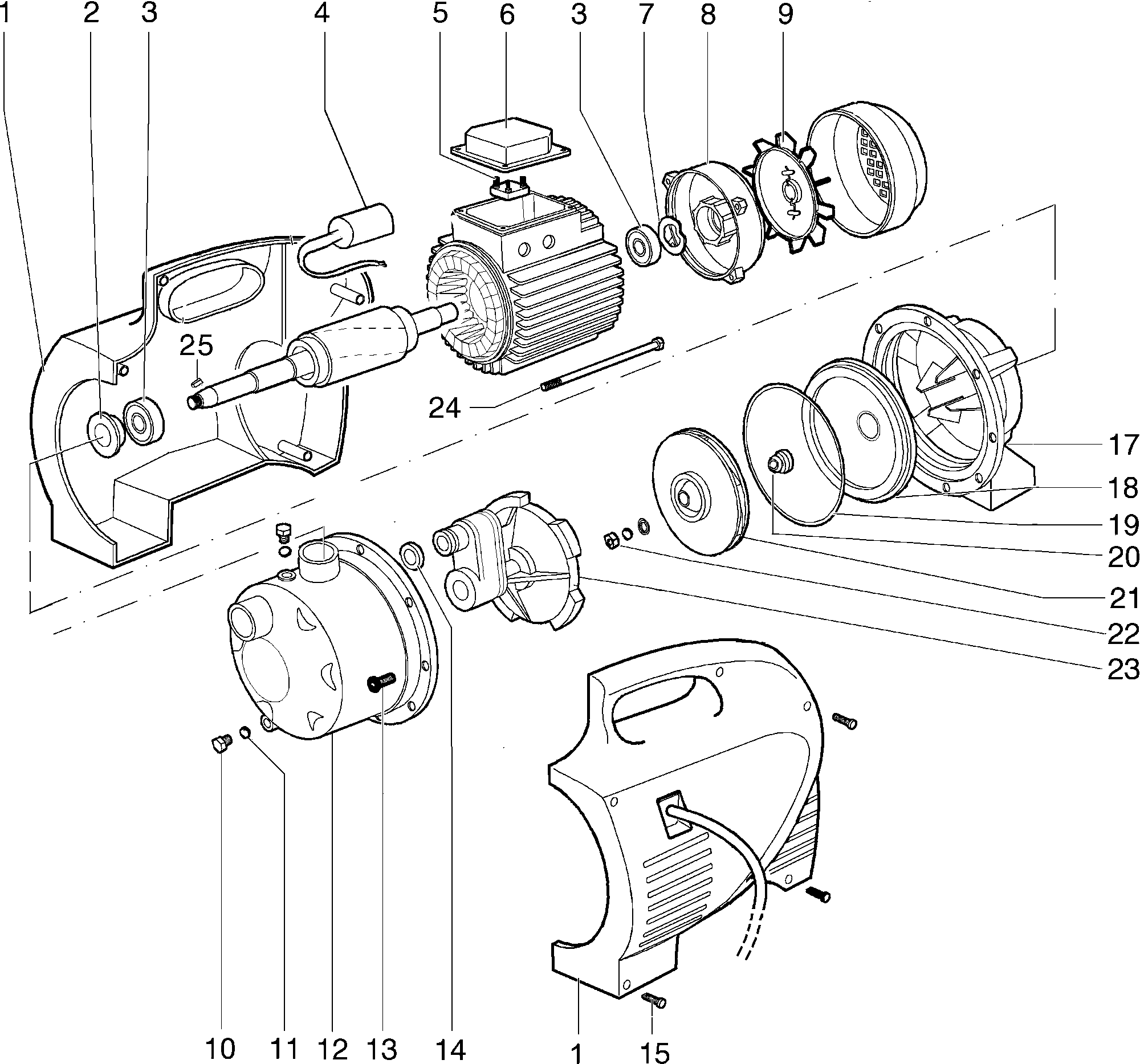

Technical drawing of model Metabo 0250330110-10 (HWW3300-20S)
Spare parts list of model Metabo 0250330110-10 (HWW3300-20S)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HALF SHELL COMPLETE 2-PARTS. WITH CABLEDU | ||||
| 1 | 1341707460 | 37.65 | 45.56 | |
| OIL SEAL P 3000 S | ||||
| 2 | 1349719092 | 1.56 | 1.89 | |
| BALL BEARING | ||||
| 3 | 7100136915 | 7.22 | 8.74 | |
| CAPACITOR 16 F 450V CABLE160L. P3000G | ||||
| 4 | 8050700225 | 10.38 | 12.56 | |
| CLAMP PART P 3000 S | ||||
| 5 | 1349719203 | 5.87 | 7.10 | |
| No longer available, no replacement | ||||
| 6 | 1349719084 | |||
| No longer available, no replacement | ||||
| 7 | 1349148893 | |||
| BEARING COVER P 3000 S | ||||
| 8 | 1349719076 | 11.74 | 14.21 | |
| FAN P 3000 S | ||||
| 9 | 1349719068 | 3.02 | 3.65 | |
| Locking screw M10x1 | ||||
| 10 | 6109719100 | 4.51 | 5.46 | |
| No longer available, no replacement | ||||
| 11 | 7632718980 | |||
| No longer available, no replacement | ||||
| 12 | 1342718970 | |||
| Cilinderkopschroef | ||||
| 13 | 141113840 | 1.68 | 2.03 | |
| O-RING 26 X 2,2 P 3000 S | ||||
| 14 | 7632718998 | 1.67 | 2.02 | |
| Countersunk screw m. lens head screw | ||||
| 15 | 6186602763 | 1.56 | 1.89 | |
| MOTORSOKKEL P 3000 S | ||||
| 17 | 1343719058 | 37.65 | 45.56 | |
| DEKSEL MOTORSOKKEL P 3000 S | ||||
| 18 | 1342719046 | 24.23 | 29.32 | |
| O-RING 162 x 3 P 3000 S | ||||
| 19 | 7632719005 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 20 | 1349719033 | |||
| No longer available, no replacement | ||||
| 21 | 1349719254 | |||
| No information available, not orderable | ||||
| 23 | 1349719017 | |||
| Motor Pull Rod M5X136 P3000G | ||||
| 24 | 1349700197 | 1.56 | 1.89 | |
| INSERT KEY A 4X4X10 ET | ||||
| 25 | 6721152349 | 1.55 | 1.88 | |
| Distribution piece 5-way | ||||
| 27 | 7871712597 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 28 | 7823712477 | |||
| No longer available, no replacement | ||||
| 29 | 1349712489 | |||
| No longer available, no replacement | ||||
| 31 | 7853712501 | |||
| Gasket 30X23X3 ET | ||||
| 32 | 7631131454 | 3.02 | 3.65 | |
| Hexagonal screw | ||||
| 33 | 6103001178 | 1.56 | 1.89 | |
| Self-locking hexagon nut | ||||
| 34 | 6202002305 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 36 | 1342720729 | |||
| No longer available, no replacement | ||||
| 37 | 1349718797 | |||
| No longer available, no replacement | ||||
| 38 | 7830712539 | |||
| Cover RD=7.1mm ET | ||||
| 39 | 1349712802 | 4.51 | 5.46 | |
| Pressure vessel 1"/ middle ET | ||||
| 40 | 1349712519 | 107.70 | 130.32 | |
| Moer zeskant | ||||
| 41 | 141132030 | 1.56 | 1.89 | |
