Here you will find all available parts and drawings of the 'Metabo 0910014030-11 ( HULPTAFELTKHS315C/M/BKS/BKH )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

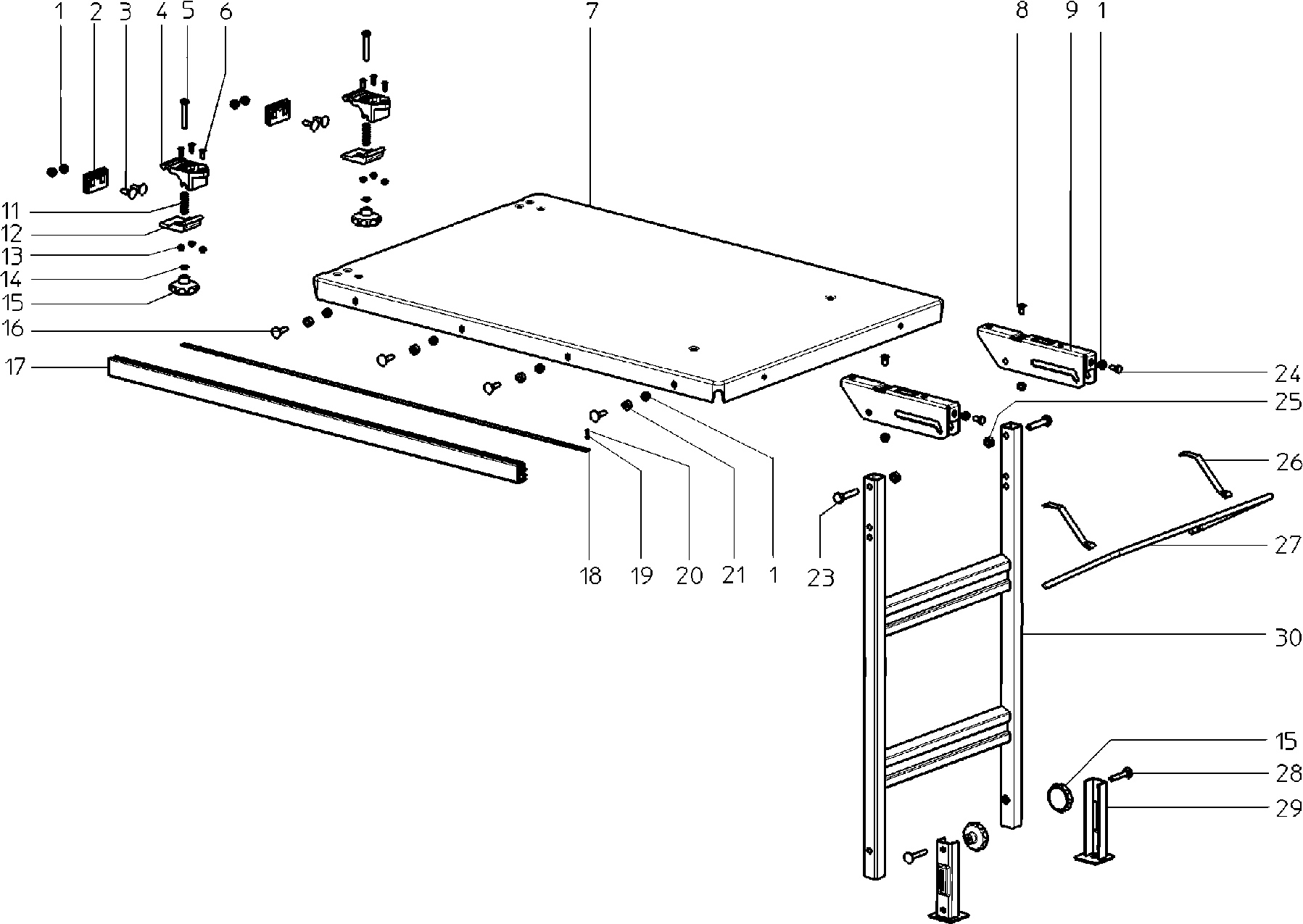

Technical drawing of model Metabo 0910014030-11 ( HULPTAFELTKHS315C/M/BKS/BKH )
Spare parts list of model Metabo 0910014030-11 ( HULPTAFELTKHS315C/M/BKS/BKH )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-locking hexagon nut | ||||
| 1 | 6202002305 | 1.55 | 1.88 | |
| Clamping body | ||||
| 2 | 2390206065 | 18.80 | 22.75 | |
| SLOT BOLT WITH SQUARE INSERT M 8X25 VERZ | ||||
| 3 | 6110000640 | 1.55 | 1.88 | |
| Connection Piece 37x52x92.5 | ||||
| 4 | 2390205891 | 11.74 | 14.21 | |
| Hexagonal screw M 8X50 curved. | ||||
| 5 | 6103001216 | 1.55 | 1.88 | |
| COUNTERSUNK SCREW M.CROSS M 6X16 VE | ||||
| 6 | 6131047582 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 7 | 1392205787 | |||
| No information available, not orderable | ||||
| 8 | 6131009460 | |||
| No information available, not orderable | ||||
| 9 | 1392205850 | |||
| PRESSURE SPRING RD 13X38.5 | ||||
| 11 | 7051091226 | 3.02 | 3.65 | |
| Clamping Lever | ||||
| 12 | 2390206057 | 10.38 | 12.56 | |
| Hexagon safety nut | ||||
| 13 | 141130650 | 1.67 | 2.02 | |
| Washer | ||||
| 14 | 141151340 | 1.55 | 1.88 | |
| STAR KNOB NUT M 8 (DIN 934) GALVANIZED | ||||
| 15 | 7000028937 | 2.28 | 2.76 | |
| Flat head bolt | ||||
| 16 | 6110000659 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 17 | 1393205985 | |||
| DIMENSION INDICATOR 0.25x13x1054.5 39.70-145 | ||||
| 18 | 1142732218 | 37.65 | 45.56 | |
| Washer | ||||
| 19 | 6305052335 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 20 | 6172039632 | |||
| Spacers | ||||
| 21 | 1485412910 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 23 | 6103001380 | |||
| Hexagonal screw | ||||
| 24 | 6103001178 | 1.55 | 1.88 | |
| Moer zeskant | ||||
| 25 | 141132030 | 1.55 | 1.88 | |
| SPRING STRIP TABLE EXTENSION BL 1X15X160 | ||||
| 26 | 1392205876 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 27 | 1392205884 | |||
| SQUARE BOLT WITH SQUARE INSERT M 8X50 COAT | ||||
| 28 | 6110080245 | 1.55 | 1.88 | |
| ADJUSTABLE FOOT | ||||
| 29 | 2010201015 | 16.25 | 19.66 | |
| FOLDABLE SUPPORT | ||||
| 30 | 2010201007 | 87.60 | 106.00 | |
