Here you will find all available parts and drawings of the 'Metabo 08865000 ( HS8865 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

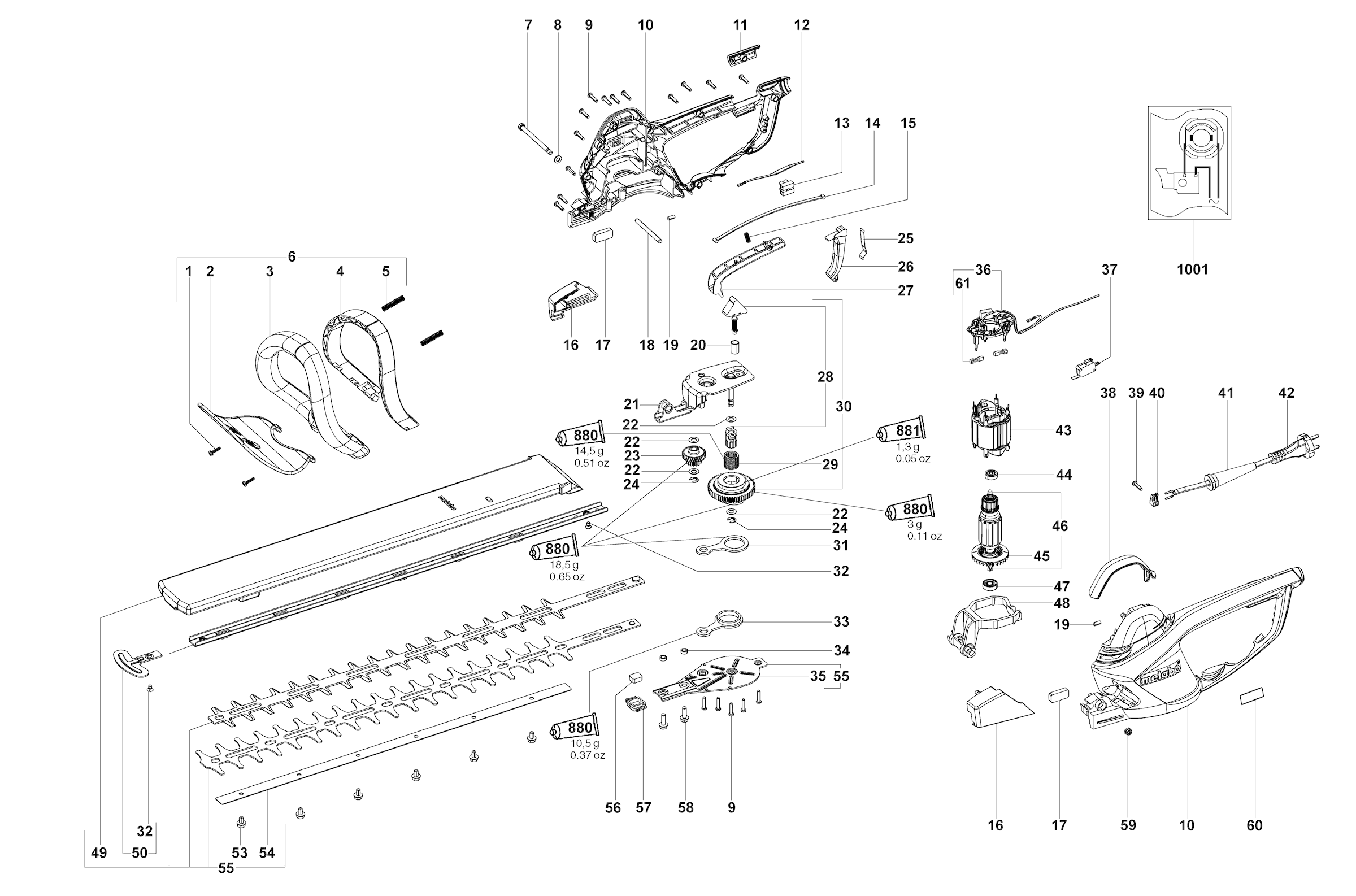

Technical drawing of model Metabo 08865000 ( HS8865 )
Spare parts list of model Metabo 08865000 ( HS8865 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tap. fill. h. screw | ||||
| 1 | 141118730 | 1.55 | 1.88 | |
| Handbescherming | ||||
| 2 | 343395320 | 7.22 | 8.74 | |
| Beugelgreep | ||||
| 3 | 343395350 | 13.48 | 16.31 | |
| Schakelbeugel | ||||
| 4 | 343395360 | 7.22 | 8.74 | |
| Pressure spring | ||||
| 5 | 342001180 | 1.55 | 1.88 | |
| Beugelgreep compl. | ||||
| 6 | 316043730 | 32.27 | 39.05 | |
| Alignment Screw | ||||
| 7 | 341704290 | 1.55 | 1.88 | |
| Washer | ||||
| 8 | 141151940 | 1.55 | 1.88 | |
| Self-tap fill h screw | ||||
| 9 | 141116020 | 1.67 | 2.02 | |
| Huis m. deksel | ||||
| 10 | 343395140 | 32.27 | 39.05 | |
| Kabelwisseldeksel | ||||
| 11 | 343395370 | 1.55 | 1.88 | |
| Smoorspoel | ||||
| 12 | 343254530 | 4.51 | 5.46 | |
| Terminal Strip 2 pole | ||||
| 13 | 343050140 | 1.67 | 2.02 | |
| Nylon Cable | ||||
| 14 | 345000160 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 15 | 342002440 | 1.55 | 1.88 | |
| Cover housing with cover | ||||
| 16 | 343395340 | 5.18 | 6.27 | |
| Sealing felt, set | ||||
| 17 | 316041370 | 5.18 | 6.27 | |
| Pressure pin | ||||
| 18 | 341055110 | 1.55 | 1.88 | |
| Rubber stop | ||||
| 19 | 344092220 | 1.55 | 1.88 | |
| Plastic lining | ||||
| 20 | 343391540 | 1.55 | 1.88 | |
| Bearing Bridge Complete | ||||
| 21 | 316038620 | 32.27 | 39.05 | |
| Washer | ||||
| 22 | 141152400 | 1.55 | 1.88 | |
| Complete gear set | ||||
| 23 | 316026700 | 48.48 | 58.66 | |
| Locking Disc | ||||
| 24 | 141155400 | 1.55 | 1.88 | |
| Flat spring | ||||
| 25 | 342050880 | 1.55 | 1.88 | |
| Drukschakelaar extra | ||||
| 26 | 343395430 | 1.55 | 1.88 | |
| Schakelaardrukker | ||||
| 27 | 343395420 | 1.55 | 1.88 | |
| Quick stop with stop sleeve | ||||
| 28 | 316039780 | 16.25 | 19.66 | |
| Wobble Spring | ||||
| 29 | 342021590 | 3.02 | 3.65 | |
| Veiligheidskoppeling met snelstop | ||||
| 30 | 316044070 | 100.74 | 121.90 | |
| Drijfstang | ||||
| 31 | 339132380 | 5.87 | 7.10 | |
| Platverzonken schroef | ||||
| 32 | 141121710 | 1.55 | 1.88 | |
| Drijfstang | ||||
| 33 | 339132370 | 5.87 | 7.10 | |
| Afstandsbus | ||||
| 34 | 341055290 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 35 | 339133450 | |||
| Carbon brush holder module, 230V | ||||
| 36 | 316043430 | 21.64 | 26.18 | |
| Schakelaar | ||||
| 37 | 343406960 | 7.22 | 8.74 | |
| Koolborsteldeksel | ||||
| 38 | 343395210 | 3.02 | 3.65 | |
| Self-tap. fill. h. screw | ||||
| 39 | 141117060 | 1.67 | 2.02 | |
| Cable clip | ||||
| 40 | 343362490 | 1.67 | 2.02 | |
| Kabeldoorvoer | ||||
| 41 | 344100970 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 42 | 344493080 | 11.74 | 14.21 | |
| Field | ||||
| 43 | 311009920 | 32.27 | 39.05 | |
| Kogellager 6x19x 6 | ||||
| 44 | 143115660 | 2.28 | 2.76 | |
| Fan | ||||
| 45 | 330001910 | 1.55 | 1.88 | |
| Anker compl. | ||||
| 46 | 310009520 | 74.13 | 89.70 | |
| Kogellager 8x22x 7 | ||||
| 47 | 143115800 | 2.28 | 2.76 | |
| Schakelvork | ||||
| 48 | 343394860 | 3.02 | 3.65 | |
| Opbergkoker | ||||
| 49 | 343391520 | 10.38 | 12.56 | |
| Collision protection | ||||
| 50 | 316027170 | 12.23 | 14.80 | |
| Hex thread forming screw | ||||
| 53 | 141120210 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 54 | 339132470 | |||
| No information available, not orderable | ||||
| 55 | 316061660 | |||
| Sealing felt | ||||
| 56 | 344070660 | 1.55 | 1.88 | |
| Long hole guard | ||||
| 57 | 343391350 | 1.55 | 1.88 | |
| Hex thread forming screw | ||||
| 58 | 141119780 | 1.67 | 2.02 | |
| Hexagon safety nut | ||||
| 59 | 141130650 | 1.67 | 2.02 | |
| Typeplaatje | ||||
| 60 | 338052060 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 61 | 316048080 | |||
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 881 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338504370 | |||
