Here you will find all available parts and drawings of the 'Metabo 06365000 (HS8865QUICK)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

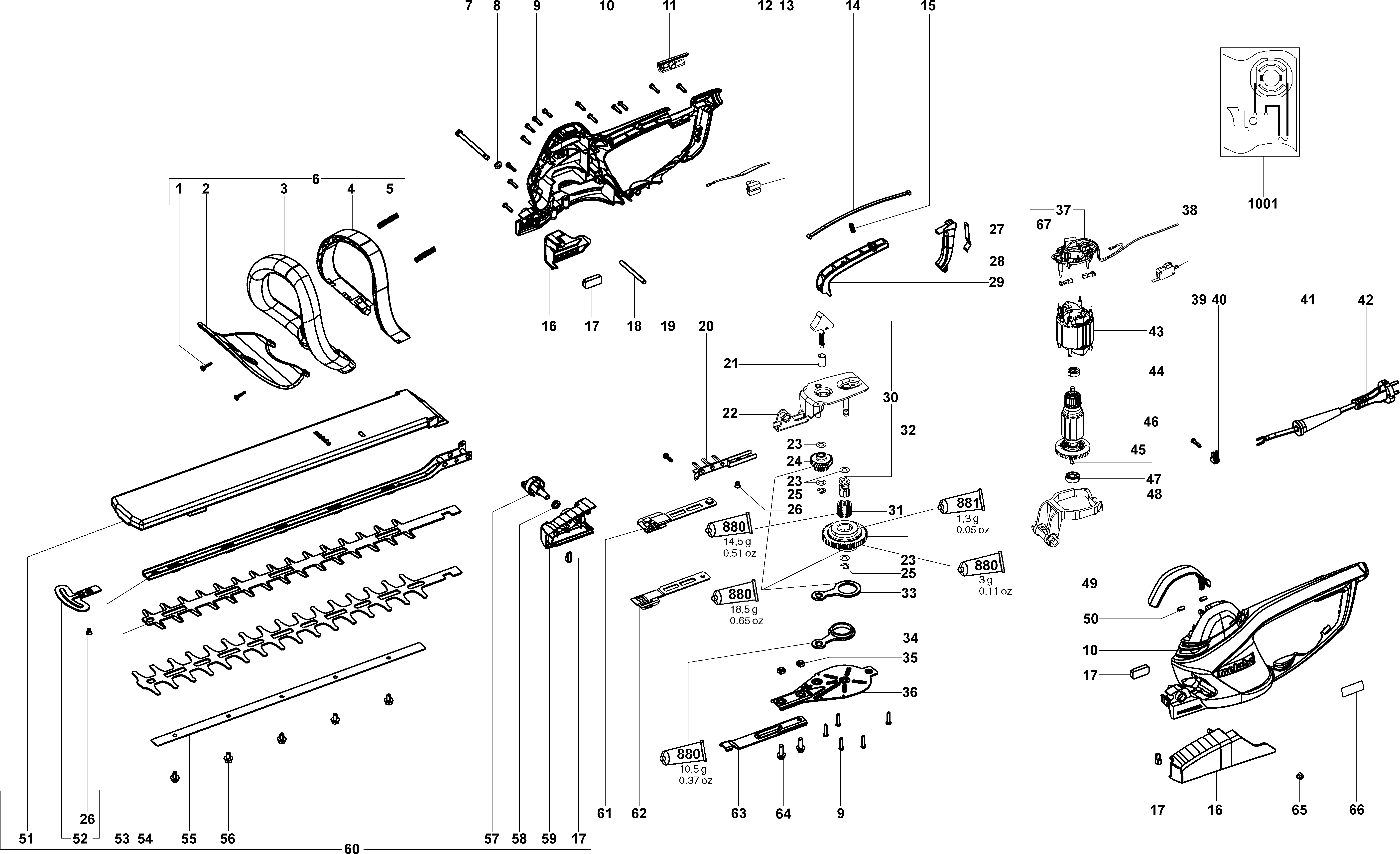

Technical drawing of model Metabo 06365000 (HS8865QUICK)
Spare parts list of model Metabo 06365000 (HS8865QUICK)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tap. fill. h. screw | ||||
| 1 | 141118730 | 1.56 | 1.89 | |
| Handbescherming | ||||
| 2 | 343395320 | 7.22 | 8.74 | |
| Beugelgreep | ||||
| 3 | 343395350 | 13.48 | 16.31 | |
| Schakelbeugel | ||||
| 4 | 343395360 | 7.22 | 8.74 | |
| Pressure spring | ||||
| 5 | 342001180 | 1.56 | 1.89 | |
| Beugelgreep compl. | ||||
| 6 | 316043730 | 32.27 | 39.05 | |
| Alignment Screw | ||||
| 7 | 341704290 | 1.56 | 1.89 | |
| Washer | ||||
| 8 | 141151940 | 1.56 | 1.89 | |
| Self-tap fill h screw | ||||
| 9 | 141116020 | 1.68 | 2.03 | |
| Huis m. deksel | ||||
| 10 | 343395140 | 32.27 | 39.05 | |
| Kabelwisseldeksel | ||||
| 11 | 343395370 | 1.56 | 1.89 | |
| Smoorspoel | ||||
| 12 | 343254530 | 4.51 | 5.46 | |
| Terminal Strip 2 pole | ||||
| 13 | 343050140 | 1.68 | 2.03 | |
| Nylon Cable | ||||
| 14 | 345000160 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 15 | 342002440 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 16 | 343395170 | |||
| No information available, not orderable | ||||
| 17 | 316041380 | |||
| Pressure pin | ||||
| 18 | 341055110 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 19 | 141116800 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 20 | 316038700 | |||
| Plastic lining | ||||
| 21 | 343391540 | 1.56 | 1.89 | |
| Bearing Bridge Complete | ||||
| 22 | 316038620 | 32.27 | 39.05 | |
| Washer | ||||
| 23 | 141152400 | 1.56 | 1.89 | |
| Complete gear set | ||||
| 24 | 316026700 | 48.48 | 58.66 | |
| Locking Disc | ||||
| 25 | 141155400 | 1.56 | 1.89 | |
| Platverzonken schroef | ||||
| 26 | 141121710 | 1.56 | 1.89 | |
| Flat spring | ||||
| 27 | 342050880 | 1.56 | 1.89 | |
| Drukschakelaar extra | ||||
| 28 | 343395430 | 1.56 | 1.89 | |
| Schakelaardrukker | ||||
| 29 | 343395420 | 1.56 | 1.89 | |
| Quick stop with stop sleeve | ||||
| 30 | 316039780 | 16.25 | 19.66 | |
| Wobble Spring | ||||
| 31 | 342021590 | 3.02 | 3.65 | |
| Veiligheidskoppeling met snelstop | ||||
| 32 | 316044070 | 100.74 | 121.90 | |
| Drijfstang | ||||
| 33 | 339132380 | 5.87 | 7.10 | |
| Drijfstang | ||||
| 34 | 339132370 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 35 | 341070360 | |||
| Cover | ||||
| 36 | 339132330 | 8.89 | 10.76 | |
| Carbon brush holder module, 230V | ||||
| 37 | 316043430 | 21.64 | 26.18 | |
| Schakelaar | ||||
| 38 | 343406960 | 7.22 | 8.74 | |
| Self-tap. fill. h. screw | ||||
| 39 | 141117060 | 1.68 | 2.03 | |
| Cable clip | ||||
| 40 | 343362490 | 1.68 | 2.03 | |
| Kabeldoorvoer | ||||
| 41 | 344100970 | 1.68 | 2.03 | |
| Kabel m. CEE-stekker | ||||
| 42 | 344493080 | 11.74 | 14.21 | |
| Field | ||||
| 43 | 311009920 | 32.27 | 39.05 | |
| Kogellager 6x19x 6 | ||||
| 44 | 143115660 | 2.28 | 2.76 | |
| Fan | ||||
| 45 | 330001910 | 1.56 | 1.89 | |
| Anker compl. | ||||
| 46 | 310009520 | 74.13 | 89.70 | |
| No information available, not orderable | ||||
| 47 | 143113400 | |||
| Schakelvork | ||||
| 48 | 343394860 | 3.02 | 3.65 | |
| Koolborsteldeksel | ||||
| 49 | 343395210 | 3.02 | 3.65 | |
| Rubber stop | ||||
| 50 | 344092220 | 1.56 | 1.89 | |
| Opbergkoker | ||||
| 51 | 343391520 | 10.38 | 12.56 | |
| Collision protection | ||||
| 52 | 316027170 | 12.23 | 14.80 | |
| Pressure strip | ||||
| 55 | 339132460 | 21.64 | 26.18 | |
| Hex thread forming screw | ||||
| 56 | 141120210 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 57 | 341112640 | |||
| No information available, not orderable | ||||
| 58 | 344097560 | |||
| No information available, not orderable | ||||
| 59 | 343391360 | |||
| No longer available, no replacement | ||||
| 60 | 316038810 | |||
| No longer available, no replacement | ||||
| 61 | 316038720 | |||
| No longer available, no replacement | ||||
| 62 | 316038710 | |||
| No longer available, no replacement | ||||
| 63 | 339132320 | |||
| Hex thread forming screw | ||||
| 64 | 141119780 | 1.68 | 2.03 | |
| Hexagon safety nut | ||||
| 65 | 141130650 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 66 | 338052090 | |||
| No information available, not orderable | ||||
| 67 | 316048080 | |||
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 881 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338504370 | |||
