Here you will find all available parts and drawings of the 'Metabo 08655000 (HS8655QUICK)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

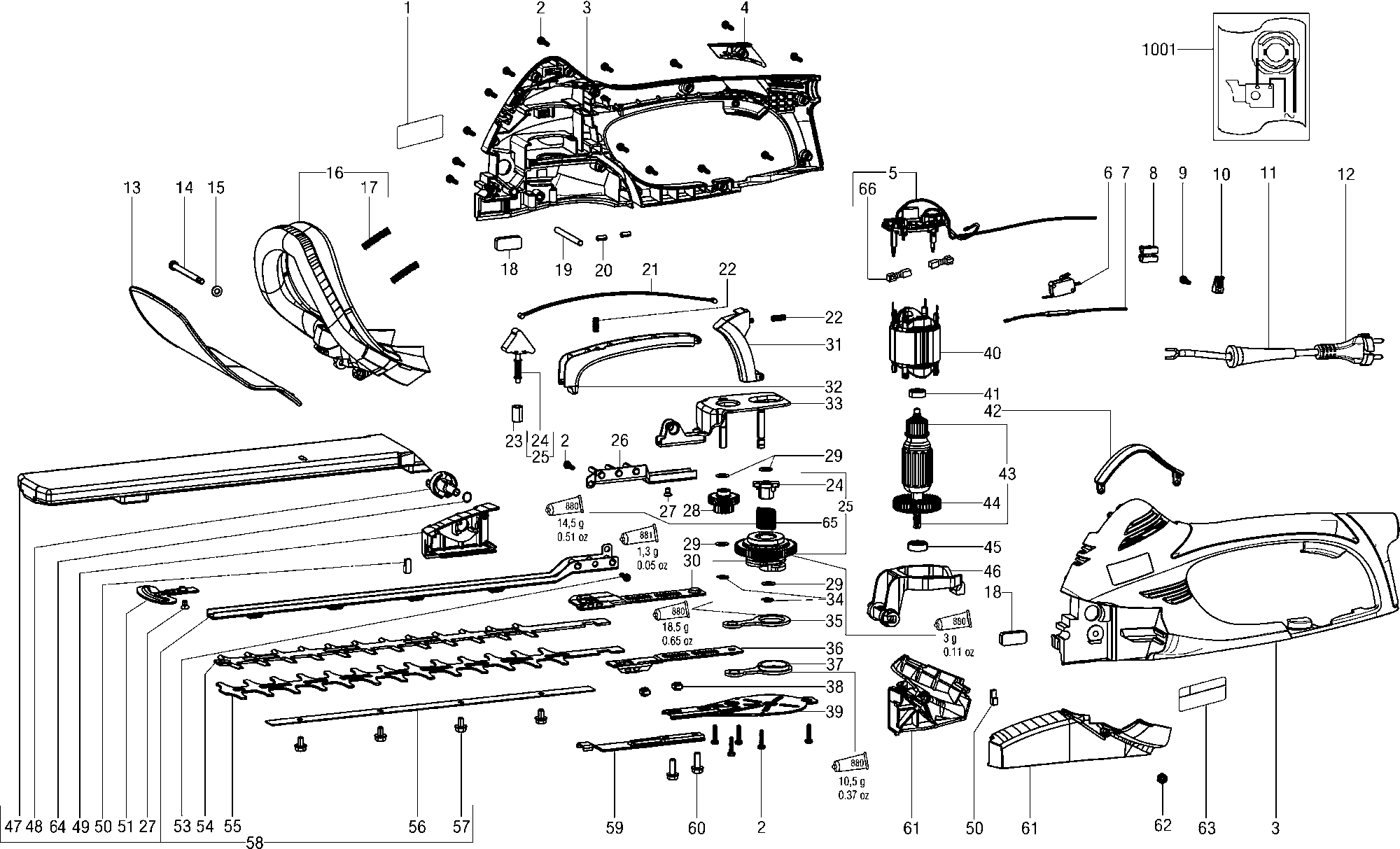

Technical drawing of model Metabo 08655000 (HS8655QUICK)
Spare parts list of model Metabo 08655000 (HS8655QUICK)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 338122160 | |||
| Self-tap fill h screw | ||||
| 2 | 141116020 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 3 | 343391400 | |||
| No information available, not orderable | ||||
| 4 | 343391340 | |||
| No information available, not orderable | ||||
| 5 | 316038960 | |||
| Schakelaar | ||||
| 6 | 343406960 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 7 | 343254330 | |||
| Terminal Strip 2 pole | ||||
| 8 | 343050140 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 9 | 141117060 | 1.68 | 2.03 | |
| Cable clip | ||||
| 10 | 343362490 | 1.68 | 2.03 | |
| Kabeldoorvoer | ||||
| 11 | 344100970 | 1.68 | 2.03 | |
| Kabel m. CEE-stekker | ||||
| 12 | 344493080 | 11.74 | 14.21 | |
| Hand guard | ||||
| 13 | 343391320 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 14 | 341703900 | |||
| Washer | ||||
| 15 | 141151940 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 16 | 316038900 | |||
| Pressure spring | ||||
| 17 | 342001180 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 18 | 316041380 | |||
| No information available, not orderable | ||||
| 19 | 341058510 | |||
| Rubber stop | ||||
| 20 | 344092220 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 21 | 345000150 | |||
| Pressure spring | ||||
| 22 | 342002440 | 1.56 | 1.89 | |
| Plastic lining | ||||
| 23 | 343391540 | 1.56 | 1.89 | |
| Quick stop with stop sleeve | ||||
| 24 | 316039780 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 25 | 316039770 | |||
| No longer available, no replacement | ||||
| 26 | 316038700 | |||
| Platverzonken schroef | ||||
| 27 | 141121710 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 28 | 340011980 | |||
| Washer | ||||
| 29 | 141152400 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 30 | 316038720 | |||
| No longer available, no replacement | ||||
| 31 | 343391330 | |||
| No longer available, no replacement | ||||
| 32 | 343391430 | |||
| Bearing Bridge Complete | ||||
| 33 | 316038620 | 32.27 | 39.05 | |
| Locking Disc | ||||
| 34 | 141155400 | 1.56 | 1.89 | |
| Drijfstang | ||||
| 35 | 339132380 | 5.87 | 7.10 | |
| No longer available, no replacement | ||||
| 36 | 316038710 | |||
| Drijfstang | ||||
| 37 | 339132370 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 38 | 341070360 | |||
| Cover | ||||
| 39 | 339132330 | 8.89 | 10.76 | |
| Field | ||||
| 40 | 311009920 | 32.27 | 39.05 | |
| Kogellager 6x19x 6 | ||||
| 41 | 143115660 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 42 | 343391390 | |||
| No longer available, no replacement | ||||
| 43 | 310008760 | |||
| No information available, not orderable | ||||
| 44 | 330001680 | |||
| No information available, not orderable | ||||
| 45 | 143113400 | |||
| No information available, not orderable | ||||
| 46 | 343391380 | |||
| Opbergkoker | ||||
| 47 | 343391510 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 48 | 341112640 | |||
| No information available, not orderable | ||||
| 49 | 343391360 | |||
| No information available, not orderable | ||||
| 50 | 344097150 | |||
| Collision protection | ||||
| 51 | 316027170 | 12.23 | 14.80 | |
| Self-tap. fill. h. screw | ||||
| 53 | 141116800 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 54 | 344162910 | |||
| No information available, not orderable | ||||
| 55 | 344162950 | |||
| No information available, not orderable | ||||
| 56 | 339132450 | |||
| Hex thread forming screw | ||||
| 57 | 141120210 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 58 | 316038800 | |||
| No longer available, no replacement | ||||
| 59 | 339132320 | |||
| Hex thread forming screw | ||||
| 60 | 141119780 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 61 | 343391460 | |||
| Hexagon safety nut | ||||
| 62 | 141130650 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 63 | 338046890 | |||
| No information available, not orderable | ||||
| 64 | 344097560 | |||
| Wobble Spring | ||||
| 65 | 342021590 | 3.02 | 3.65 | |
| No longer available, no replacement | ||||
| 66 | 316048090 | |||
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 881 | 344130560 | 32.27 | 39.05 | |
