Here you will find all available parts and drawings of the 'Metabo 08365000 (HS8365S)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

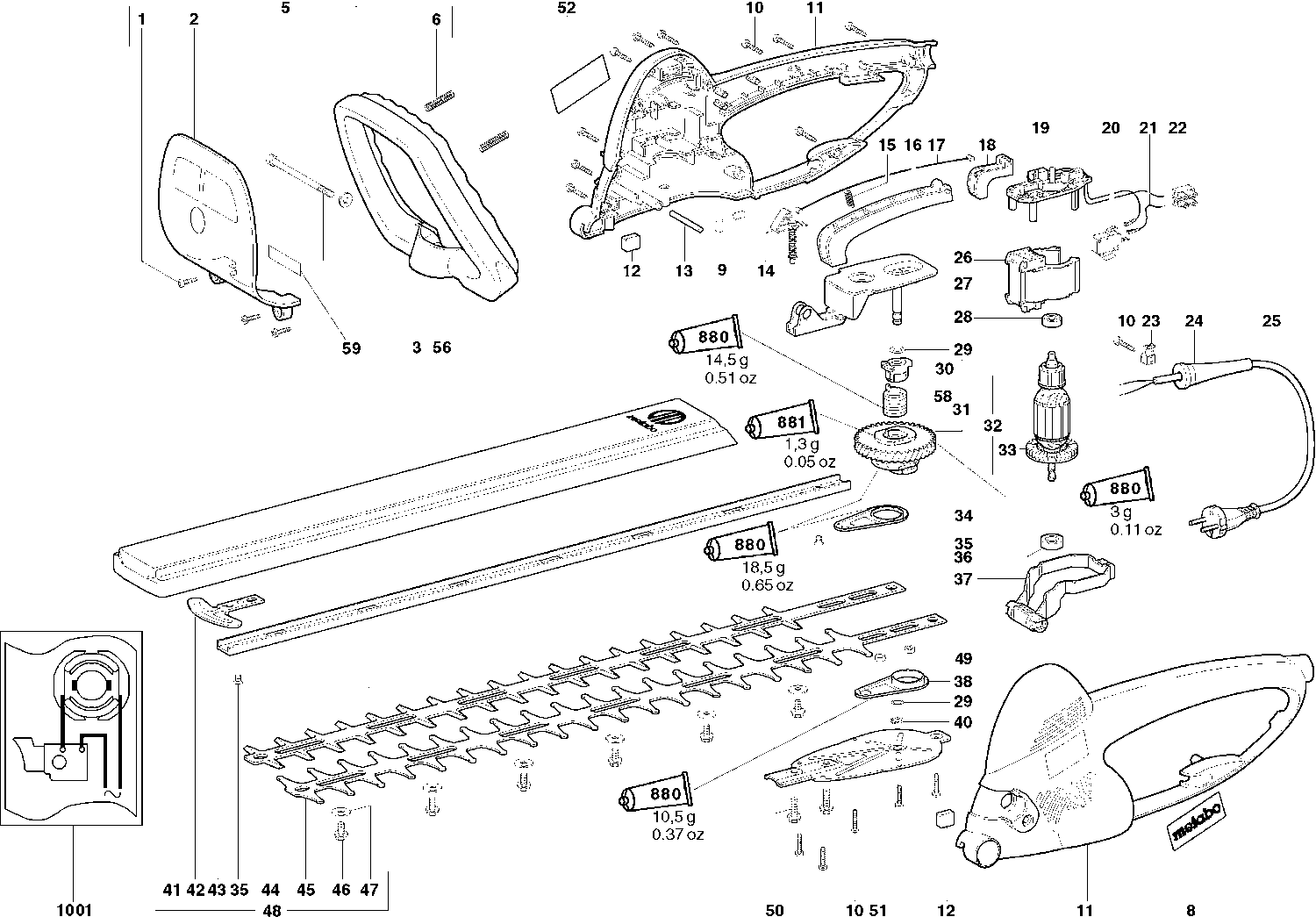

Technical drawing of model Metabo 08365000 (HS8365S)
Spare parts list of model Metabo 08365000 (HS8365S)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tap. fill. h. screw | ||||
| 1 | 141118730 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 2 | 343371690 | |||
| Passchroef | ||||
| 3 | 341702990 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 5 | 316026420 | |||
| Pressure spring | ||||
| 6 | 342001180 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 8 | 338116950 | |||
| Rubber stop | ||||
| 9 | 344092220 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 10 | 141117060 | 1.68 | 2.03 | |
| Housing | ||||
| 11 | 343371630 | 48.48 | 58.66 | |
| Sealing felt | ||||
| 12 | 344070660 | 1.56 | 1.89 | |
| Pressure pin | ||||
| 13 | 341055110 | 1.56 | 1.89 | |
| Quick stop complete. | ||||
| 14 | 316026380 | 5.18 | 6.27 | |
| Pressure spring | ||||
| 15 | 342002440 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 16 | 343378030 | |||
| No information available, not orderable | ||||
| 17 | 345000130 | |||
| No information available, not orderable | ||||
| 18 | 343378050 | |||
| Brush holder module | ||||
| 19 | 316026310 | 16.25 | 19.66 | |
| Schakelaar | ||||
| 20 | 343406960 | 7.22 | 8.74 | |
| Verbindingsdraad compl. | ||||
| 21 | 344493000 | 1.68 | 2.03 | |
| Terminal Strip 2 pole | ||||
| 22 | 343050140 | 1.68 | 2.03 | |
| Cable clip | ||||
| 23 | 343362490 | 1.68 | 2.03 | |
| Kabeldoorvoer | ||||
| 24 | 344100970 | 1.68 | 2.03 | |
| Kabel m. CEE-stekker | ||||
| 25 | 344493080 | 11.74 | 14.21 | |
| Field 230 V | ||||
| 26 | 311009510 | 48.48 | 58.66 | |
| No information available, not orderable | ||||
| 27 | 316027160 | |||
| Kogellager 6x19x 6 | ||||
| 28 | 143115660 | 2.28 | 2.76 | |
| Washer | ||||
| 29 | 141152400 | 1.56 | 1.89 | |
| STOPPBUCHSE | ||||
| 30 | 341005590 | 10.38 | 12.56 | |
| Veiligheidskoppeling | ||||
| 31 | 316026450 | 74.13 | 89.70 | |
| Anker 230 V | ||||
| 32 | 310007520 | 67.33 | 81.47 | |
| Fan | ||||
| 33 | 330000850 | 1.68 | 2.03 | |
| Drijfstang | ||||
| 34 | 339180390 | 5.87 | 7.10 | |
| Platverzonken schroef | ||||
| 35 | 141121710 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 36 | 143113400 | |||
| Schakelvork | ||||
| 37 | 343371680 | 7.22 | 8.74 | |
| Drijfstang | ||||
| 38 | 339180360 | 5.87 | 7.10 | |
| Locking Disc | ||||
| 40 | 141155400 | 1.56 | 1.89 | |
| Storage tube | ||||
| 41 | 343372210 | 12.23 | 14.80 | |
| Collision protection | ||||
| 42 | 316027170 | 12.23 | 14.80 | |
| No information available, not orderable | ||||
| 43 | 316027150 | |||
| Upper blade | ||||
| 44 | 344147730 | 43.15 | 52.21 | |
| Lower blade | ||||
| 45 | 344147760 | 37.65 | 45.56 | |
| Hex thread forming screw | ||||
| 46 | 141120210 | 1.56 | 1.89 | |
| Washer | ||||
| 47 | 339006160 | 1.56 | 1.89 | |
| Blades complete. 65 standard | ||||
| 48 | 316026490 | 87.60 | 106.00 | |
| Afstandsbus | ||||
| 49 | 341060030 | 1.68 | 2.03 | |
| Hex thread forming screw | ||||
| 50 | 141119780 | 1.68 | 2.03 | |
| Cover | ||||
| 51 | 339128130 | 5.18 | 6.27 | |
| No information available, not orderable | ||||
| 52 | 338034260 | |||
| Washer | ||||
| 56 | 141151940 | 1.56 | 1.89 | |
| Wobble Spring | ||||
| 58 | 342021590 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 59 | 399999990 | |||
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 881 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338501430 | |||
