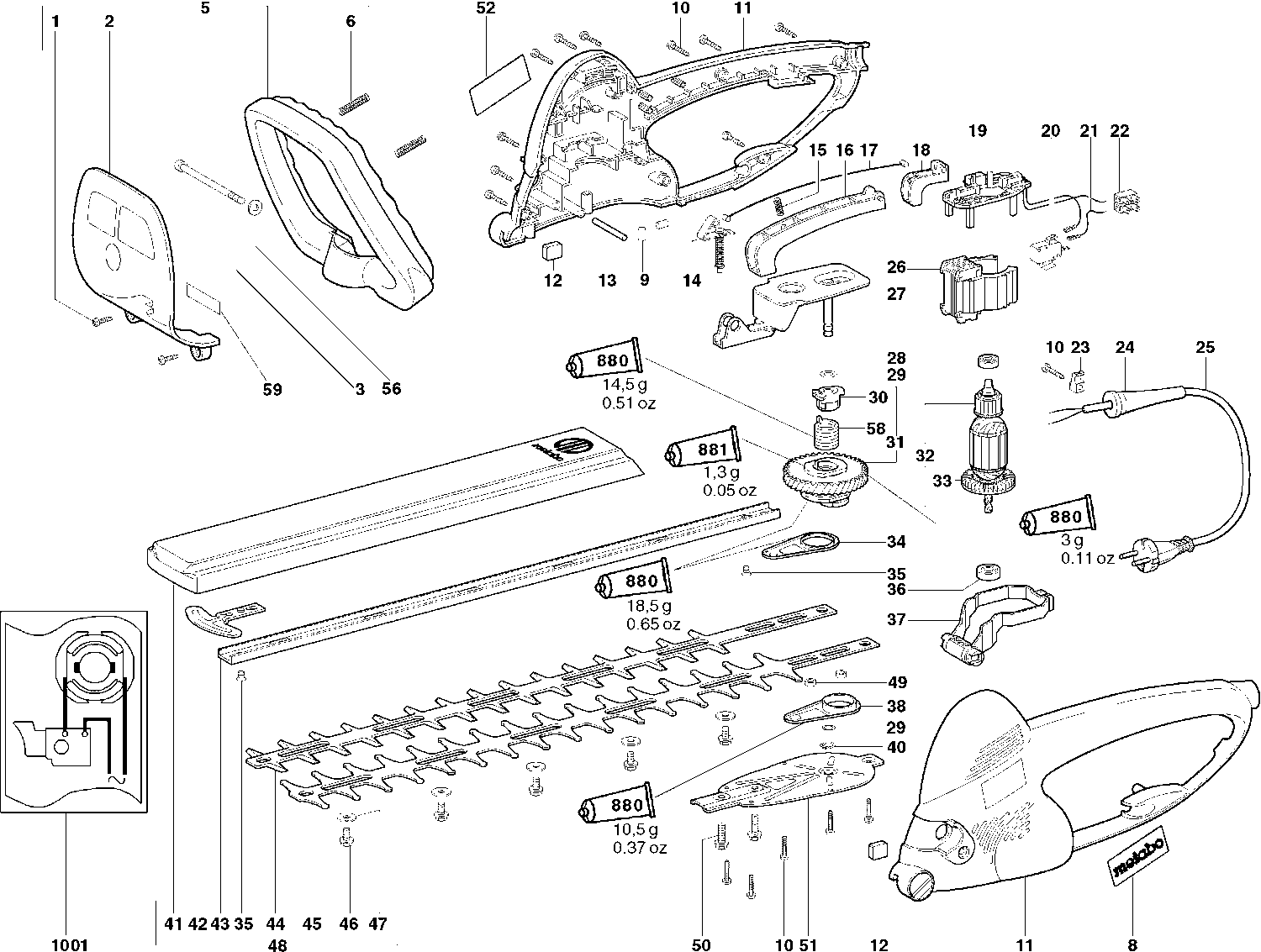

Technical drawing of model Metabo 08355000 ( HS8355S )

Spare parts list of model Metabo 08355000 ( HS8355S )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Self-tap. fill. h. screw
1 141118730 1.55 1.88
No longer available, no replacement
2 343371690
Passchroef
3 341702990 1.55 1.88
No longer available, no replacement
5 316026420
Pressure spring
6 342001180 1.55 1.88
No information available, not orderable
8 338116940
Rubber stop
9 344092220 1.55 1.88
Self-tap. fill. h. screw
10 141117060 1.67 2.02
Housing
11 343371630 48.48 58.66
Sealing felt
12 344070660 1.55 1.88
Pressure pin
13 341055110 1.55 1.88
Quick stop complete.
14 316026380 5.18 6.27
Pressure spring
15 342002440 1.55 1.88
No information available, not orderable
16 343378030
No information available, not orderable
17 345000130
No information available, not orderable
18 343378050
Brush holder module
19 316026310 16.25 19.66
Schakelaar
20 343406960 7.22 8.74
Verbindingsdraad compl.
21 344493000 1.67 2.02
Terminal Strip 2 pole
22 343050140 1.67 2.02
Cable clip
23 343362490 1.67 2.02
Kabeldoorvoer
24 344100970 1.67 2.02
Kabel m. CEE-stekker
25 344493080 11.74 14.21
Field 230 V
26 311009510 48.48 58.66
No information available, not orderable
27 316027160
Kogellager 6x19x 6
28 143115660 2.28 2.76
Washer
29 141152400 1.55 1.88
STOPPBUCHSE
30 341005590 10.38 12.56
Veiligheidskoppeling
31 316026450 74.13 89.70
Anker 230 V
32 310007520 67.33 81.47
Fan
33 330000850 1.67 2.02
Drijfstang
34 339180390 5.87 7.10
Platverzonken schroef
35 141121710 1.55 1.88
No information available, not orderable
36 143113400
Schakelvork
37 343371680 7.22 8.74
Drijfstang
38 339180360 5.87 7.10
Locking Disc
40 141155400 1.55 1.88
Storage tube
41 343371820 10.38 12.56
Collision protection
42 316027170 12.23 14.80
No information available, not orderable
43 316027140
Upper blade
44 344147720 37.65 45.56
Lower blade
45 344147750 26.95 32.61
Hex thread forming screw
46 141120210 1.55 1.88
Washer
47 339006160 1.55 1.88
Blades complete. 55 standard
48 316026480 80.81 97.78
Afstandsbus
49 341060030 1.67 2.02
Hex thread forming screw
50 141119780 1.67 2.02
Cover
51 339128130 5.18 6.27
No information available, not orderable
52 338034250
Washer
56 141151940 1.55 1.88
Wobble Spring
58 342021590 3.02 3.65
No information available, not orderable
59 399999990
Grease tube 50 gr. 1,8oz
880 344130930 32.27 39.05
Grease Tube 50 gr. SF 011 1,8oz
881 344130560 32.27 39.05
No information available, not orderable
1001 338501430
