Here you will find all available parts and drawings of the 'Metabo 03065000 ( HGE23-650LCD )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

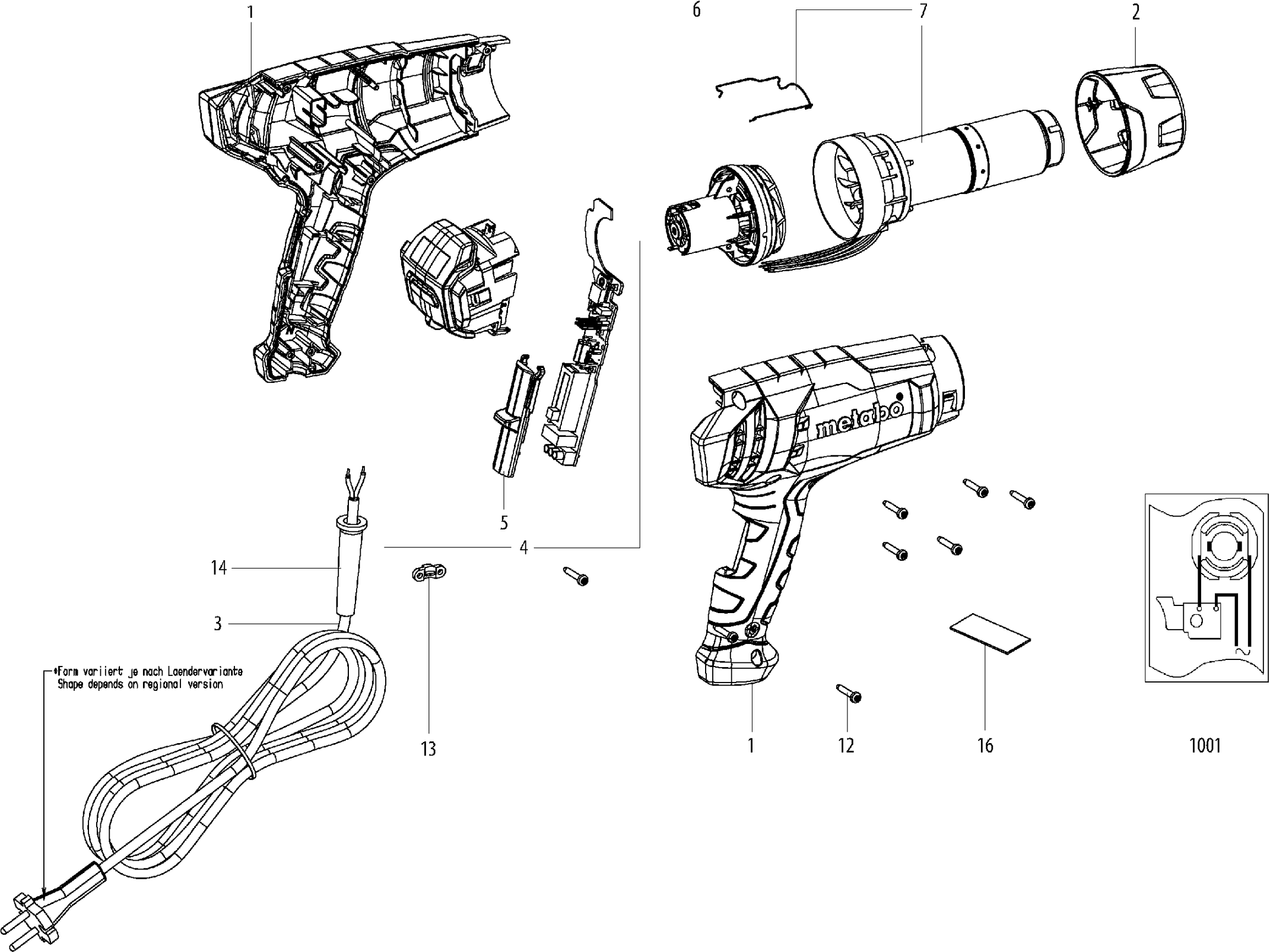

Technical drawing of model Metabo 03065000 ( HGE23-650LCD )
Spare parts list of model Metabo 03065000 ( HGE23-650LCD )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing compl. | ||||
| 1 | 316099850 | 43.15 | 52.21 | |
| Protective tube | ||||
| 2 | 343453520 | 10.38 | 12.56 | |
| Kabel m. CEE-stekker | ||||
| 3 | 344493180 | 21.64 | 26.18 | |
| Terminal Block | ||||
| 4 | 343088410 | 175.84 | 212.77 | |
| Switch OSC 18 | ||||
| 5 | 343453540 | 13.48 | 16.31 | |
| Motor-unit, 230V | ||||
| 6 | 317005340 | 32.27 | 39.05 | |
| Battery Holder for 10.8 V | ||||
| 7 | 341167450 | 74.13 | 89.70 | |
| Kabelbescherming | ||||
| 14 | 344098860 | 3.02 | 3.65 | |
| Type plate HK 85 EB 230V | ||||
| 16 | 338073800 | 1.67 | 2.02 | |
