Here you will find all available parts and drawings of the 'Metabo 0114026100-12 (HC260C2,80DNB)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

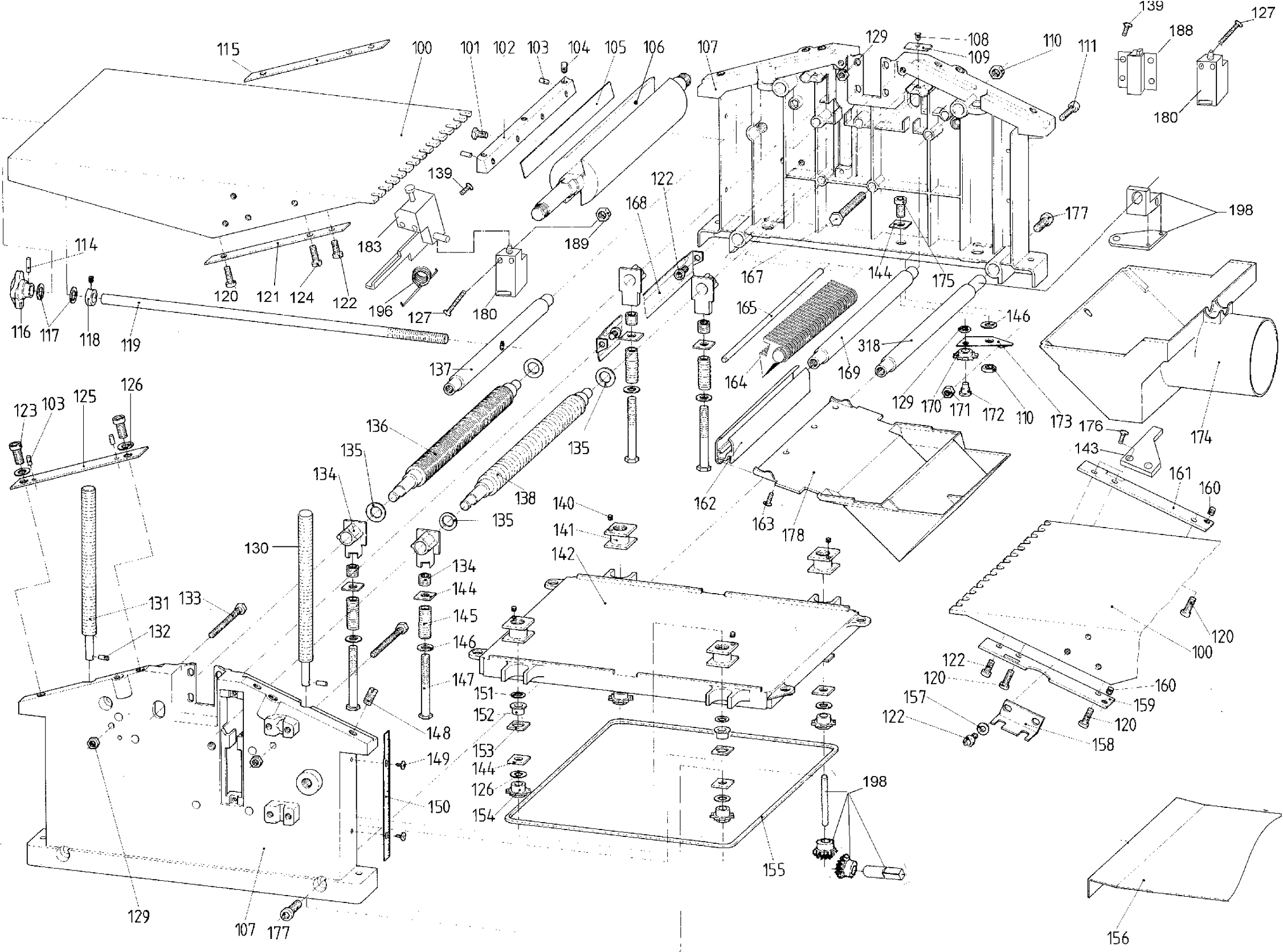

Technical drawing of model Metabo 0114026100-12 (HC260C2,80DNB)
Spare parts list of model Metabo 0114026100-12 (HC260C2,80DNB)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Table | ||||
| 100 | 315419610 | 161.61 | 195.55 | |
| CLAMPING SCREW M 6X11 SW10 | ||||
| 101 | 341705750 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 102 | 1011717434 | |||
| SPRING PIN 5X10 | ||||
| 103 | 141164200 | 1.55 | 1.88 | |
| Base body with bolts | ||||
| 104 | 6164029245 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 105 | 0911030713 | |||
| AS V. MEASURE RD 62,5X439 HC260C | ||||
| 106 | 341606170 | 80.81 | 97.78 | |
| SIDE PART HC260C | ||||
| 107 | 1380717456 | 187.73 | 227.15 | |
| Place screw M.crosshead | ||||
| 108 | 6123002049 | 1.56 | 1.89 | |
| Zeskante moer | ||||
| 110 | 141131010 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 111 | 141113890 | 1.68 | 2.03 | |
| Tightening pin | ||||
| 114 | 6503001681 | 1.56 | 1.89 | |
| UNDERLAY STRIP FL 22X4X190 HC260C | ||||
| 115 | 1482717515 | 5.87 | 7.10 | |
| CROSS BUTTON D=42 / SOCKET 10 HC260C | ||||
| 116 | 7007717479 | 5.87 | 7.10 | |
| No longer available, no replacement | ||||
| 117 | 7053010100 | |||
| ADJUSTING RING A 11 VERZ. | ||||
| 118 | 6410147244 | 3.02 | 3.65 | |
| THREAD ROD M 10/60X450 HC260C | ||||
| 119 | 1385717497 | 4.51 | 5.46 | |
| Cylinder head screw with inner hexagon | ||||
| 120 | 6127059193 | 1.56 | 1.89 | |
| UNDERLAY STRIP FL 22X4X190 HC260C | ||||
| 121 | 1482717507 | 5.87 | 7.10 | |
| Cilinderkopschroef | ||||
| 122 | 141121940 | 1.68 | 2.03 | |
| Cilinderkopschroef | ||||
| 123 | 141113990 | 1.68 | 2.03 | |
| COUNTERSUNK SCREW M.CROSS | ||||
| 124 | 6131059530 | 1.56 | 1.89 | |
| Disc spring | ||||
| 126 | 7053016795 | 1.55 | 1.88 | |
| No longer available, no replacement | ||||
| 128 | 1382718360 | |||
| Zeskante moer | ||||
| 129 | 141130100 | 1.56 | 1.89 | |
| THREAD ROD TR 14X3X365 HC260C | ||||
| 130 | 1485717540 | 11.74 | 14.21 | |
| THREAD ROD TR 14X3X229.5 HC260C | ||||
| 131 | 1385717551 | 10.38 | 12.56 | |
| CYLINDER PIN 3X16 | ||||
| 132 | 6501007275 | 1.56 | 1.89 | |
| Hexagonal screw M 6X80 curved. | ||||
| 133 | 6103008717 | 1.56 | 1.89 | |
| GUIDE SLEEVE HC260C | ||||
| 134 | 1381717565 | 4.51 | 5.46 | |
| Washer | ||||
| 135 | 6300016705 | 1.56 | 1.89 | |
| PRESSURE ROLLER RD 25X360.5 HC260C | ||||
| 136 | 1385717578 | 37.65 | 45.56 | |
| DISTANCE SHAFT HC260C RD 20X295 | ||||
| 137 | 341606160 | 16.25 | 19.66 | |
| Transport roller RD 25X360.5 HC260C | ||||
| 138 | 1485717591 | 32.27 | 39.05 | |
| Place screw M.crosshead | ||||
| 139 | 141124560 | 1.56 | 1.89 | |
| Pin Tap with Morse Taper M 5X5 | ||||
| 140 | 6161067090 | 1.56 | 1.89 | |
| ADJUSTING NUT 30X30X22 TR 14X3 HC260C | ||||
| 141 | 1385717608 | 11.74 | 14.21 | |
| HC260C plate | ||||
| 142 | 339139410 | 87.60 | 106.00 | |
| SHEET METAL NOSE HC260C | ||||
| 143 | 1382718379 | 2.28 | 2.76 | |
| WASHER 22X22 HC260C | ||||
| 144 | 1380717626 | 1.68 | 2.03 | |
| PRESSURE SPRING HC260C | ||||
| 145 | 7051717630 | 1.55 | 1.88 | |
| Washer | ||||
| 146 | 141151340 | 1.56 | 1.89 | |
| Hex screw M 8x80 PLATED | ||||
| 147 | 6102001093 | 1.56 | 1.89 | |
| DOWEL SCREW M 8X16 COATED. | ||||
| 148 | 6160151542 | 1.68 | 2.03 | |
| PLACE SCREW WITH CROSSHEAD M 4X8 COATED DUO- | ||||
| 149 | 141125180 | 1.55 | 1.88 | |
| SIZE INDICATION 0.60X16X170 HC260C | ||||
| 150 | 1141717649 | 3.71 | 4.49 | |
| SPACER DISC 8X14X1 GALV. | ||||
| 151 | 6306017266 | 1.56 | 1.89 | |
| SPINDLE BUSH RD 16X10 HC260C | ||||
| 152 | 1381717654 | 1.68 | 2.03 | |
| CHAIN WHEEL RDA 32,4X15 RDI 8 HC260C | ||||
| 154 | 7246717669 | 7.22 | 8.74 | |
| ROLLER CHAIN 210 LINKS HC260C | ||||
| 155 | 341163440 | 26.95 | 32.61 | |
| Washer | ||||
| 157 | 141151940 | 1.56 | 1.89 | |
| Adjustment Square BL 2.00X52X24 HC260C | ||||
| 158 | 1382717690 | 2.28 | 2.76 | |
| Edge of Guide FL 22X4X190 HC260C | ||||
| 159 | 1482717701 | 7.22 | 8.74 | |
| Taper Pin with Morse Taper M 6X8 Plated | ||||
| 160 | 141124510 | 1.56 | 1.89 | |
| Edge of Guide FL 20X4X193 HC260C | ||||
| 161 | 1482717710 | 7.22 | 8.74 | |
| Profile span hood 258 mm HC260C | ||||
| 162 | 1383717724 | 11.74 | 14.21 | |
| Place screw M.crosshead | ||||
| 163 | 6172015687 | 1.56 | 1.89 | |
| BACKFLOW PREVENTER | ||||
| 164 | 1011739691 | 60.59 | 73.31 | |
| KICKBACK PROTECTION cpl. | ||||
| 164 | 316079050 | 43.15 | 52.21 | |
| ASSISTANT ROD RD 6X286 HC260C | ||||
| 165 | 1385717748 | 3.02 | 3.65 | |
| Limiting plate | ||||
| 166 | 1011739705 | 21.64 | 26.18 | |
| Hex screw M 8x80 PLATED | ||||
| 167 | 141125190 | 1.55 | 1.88 | |
| Chip Deflector Plate BL 2.00X45X309.5 | ||||
| 168 | 1382717763 | 5.87 | 7.10 | |
| DISTANCE SHAFT HC260C RD 20X295 | ||||
| 169 | 341606140 | 16.25 | 19.66 | |
| DRIVE CHAIN SPROCKET RD 32,4X95, HC26 | ||||
| 170 | 7246717782 | 5.87 | 7.10 | |
| Hexagon safety nut | ||||
| 171 | 141130650 | 1.68 | 2.03 | |
| THREADED PIN RD 13X20 8h9 M 6 HC260C | ||||
| 172 | 1385717799 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 173 | 1382717801 | |||
| No longer available, no replacement | ||||
| 174 | 339205250 | |||
| Cilinderkopschroef | ||||
| 175 | 141114010 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 176 | 141110580 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 177 | 141114010 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 178 | 1381717824 | |||
| SPACER SHAFT HC260C | ||||
| 179 | 1485718407 | 16.25 | 19.66 | |
| Operation for safety switching HC260C | ||||
| 180 | 8116718414 | 21.64 | 26.18 | |
| SPRING HC260C | ||||
| 181 | 7050718420 | 1.55 | 1.88 | |
| Switch cam HC260C | ||||
| 182 | 1388718435 | 3.71 | 4.49 | |
| No longer available, no replacement | ||||
| 183 | 1382718441 | |||
| Taper Pin with Morse Taper M 6X8 Plated | ||||
| 184 | 141124510 | 1.56 | 1.89 | |
| CONTROL CAM HC260C | ||||
| 185 | 1382718450 | 2.28 | 2.76 | |
| SHIFT FORK HC260C | ||||
| 186 | 339139450 | 2.28 | 2.76 | |
| BRACKET HC260C | ||||
| 187 | 1382718476 | 3.02 | 3.65 | |
| Switch block HC260C | ||||
| 188 | 1388718486 | 12.23 | 14.80 | |
| Zeskante moer | ||||
| 189 | 141130070 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 190 | 141110580 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 196 | 7051005753 | |||
| BRACKET HC260C | ||||
| 198 | 1011718554 | 26.95 | 32.61 | |
| CLOSING CAP HC260C | ||||
| 200 | 1381717832 | 1.68 | 2.03 | |
| GUIDE SEGMENT HC260C | ||||
| 201 | 316082550 | 12.38 | 14.98 | |
| SLIDING SEGMENT HC260C | ||||
| 202 | 1381717859 | 1.68 | 2.03 | |
| Hexagonal screw M 8X50 curved. | ||||
| 203 | 6103001216 | 1.56 | 1.89 | |
| Guide rail 650 mm HC260C | ||||
| 204 | 1383717864 | 67.93 | 82.20 | |
| Slotted bolt with square insert | ||||
| 205 | 6110000608 | 1.56 | 1.89 | |
| CLOSING CAP HC260C | ||||
| 206 | 1381717875 | 1.56 | 1.89 | |
| Sealing shaft for knives 360 mm HC260C | ||||
| 207 | 1383717880 | 16.25 | 19.66 | |
| CLAMP HANDLE HC260C | ||||
| 208 | 1381717891 | 3.02 | 3.65 | |
| CAP NUT M 8 | ||||
| 209 | 6201002131 | 1.56 | 1.89 | |
| END CAP COVER PROFILE HC260C | ||||
| 211 | 1381717913 | 1.56 | 1.89 | |
| SELF-TAPPING SCREW WITH CROSSHEAD | ||||
| 212 | 6174001900 | 1.56 | 1.89 | |
| Sidepart cover BL 2X30X153 HC260C | ||||
| 213 | 339139440 | 2.28 | 2.76 | |
| PLACE SCREW WITH CROSSHEAD M 4X8 COATED DUO- | ||||
| 214 | 141125180 | 1.55 | 1.88 | |
| V-Belt Protection 1.5X164.5X261.5X345 H | ||||
| 215 | 1382717933 | 21.64 | 26.18 | |
| Washer | ||||
| 216 | 141150810 | 1.56 | 1.89 | |
| Clamping lever with inner thread M 8 HC260C | ||||
| 217 | 7006717947 | 7.22 | 8.74 | |
| PLASTIC DISC RD 20/RD 8 L=6 HC260C | ||||
| 218 | 1381717956 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 219 | 1380717960 | |||
| GUIDE ELEMENT HC260C | ||||
| 220 | 1380717979 | 7.22 | 8.74 | |
| Hexagonal Screw M 6X16 curved. Spot Coating | ||||
| 221 | 6103001356 | 1.56 | 1.89 | |
| Washer | ||||
| 222 | 141150010 | 1.56 | 1.89 | |
| PLACE SCREW WITH CROSSHEAD M 4X8 COATED DUO- | ||||
| 223 | 141125180 | 1.55 | 1.88 | |
| No longer available, no replacement | ||||
| 224 | 1392017603 | |||
| PRESSURE CAP 22X13X130 HC260C | ||||
| 225 | 1381717999 | 4.51 | 5.46 | |
| ADJUSTMENT HANDLE HC260C | ||||
| 226 | 1381718006 | 7.22 | 8.74 | |
| CYLINDER HEAD SCREW WITH HEX SOCKET M 10X16 V | ||||
| 227 | 6127043580 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 229 | 1485739714 | |||
| COVER CAP HC260C | ||||
| 230 | 1381718030 | 8.89 | 10.76 | |
| SPACER DISC 10X16X1 GALV. | ||||
| 232 | 6306002170 | 1.56 | 1.89 | |
| Clamping Lever BL 4X50X165 HC260C | ||||
| 233 | 1482718040 | 4.51 | 5.46 | |
| CLAMP HANDLE BL 4X50X165 HC260C | ||||
| 234 | 1482718058 | 5.18 | 6.27 | |
| V-Groove Disk RDA 42X18 HC260C | ||||
| 235 | 341214090 | 8.89 | 10.76 | |
| Bearing metal HC260C | ||||
| 236 | 339139420 | 5.87 | 7.10 | |
| O-RING HC260C | ||||
| 237 | 7632718564 | 1.55 | 1.88 | |
| BALL BEARING 17X40X12 6203-2RS1 | ||||
| 238 | 143116240 | 4.51 | 5.46 | |
| GROUND PLATE | ||||
| 239 | 341606180 | 2.28 | 2.76 | |
| No longer available, no replacement | ||||
| 240 | 2380718092 | |||
| No longer available, no replacement | ||||
| 241 | 141110270 | |||
| Flat head bolt | ||||
| 242 | 6110015990 | 1.56 | 1.89 | |
| DRIVE CHAIN WHEEL RD 67.5X16 HC260 | ||||
| 243 | 340005050 | 3.02 | 3.65 | |
| PINS 4X20 | ||||
| 244 | 141164210 | 1.55 | 1.88 | |
| BOLT RD 16X60,5 HC260C | ||||
| 245 | 1385718116 | 2.28 | 2.76 | |
| ROTARY SPRING HC260C | ||||
| 246 | 7051718121 | 1.67 | 2.02 | |
| CHAIN TENSIONER FL 20X4X90 HC260C | ||||
| 247 | 1482718139 | 3.02 | 3.65 | |
| ROLLER CHAIN 74 LINKS HC260C | ||||
| 248 | 341163450 | 11.74 | 14.21 | |
| Reversible Chain Wheel 29 X 7 HC260C | ||||
| 249 | 340005060 | 2.28 | 2.76 | |
| Threaded rod RD 14X20 10h9 HC260C | ||||
| 250 | 341530210 | 1.67 | 2.02 | |
| BOLT RD 20X64,5 HC260C | ||||
| 251 | 1385718175 | 3.71 | 4.49 | |
| STARLOCK Z.COVER | ||||
| 253 | 7016056183 | 1.55 | 1.88 | |
| SPACER DISC 16X22X1 GALV. | ||||
| 255 | 6306009760 | 1.56 | 1.89 | |
| Drive belt LI 547x2.0x18 | ||||
| 256 | 344260480 | 32.27 | 39.05 | |
| Pulley cpl. | ||||
| 257 | 316079040 | 24.23 | 29.32 | |
| No longer available, no replacement | ||||
| 258 | 7247718200 | |||
| DISH SPRING WASHER 34X12,3X1 | ||||
| 259 | 141156960 | 1.55 | 1.88 | |
| COVER PROTECTION CAP HC260C | ||||
| 261 | 1381718235 | 3.02 | 3.65 | |
| PROTECTION CAP HC260C | ||||
| 262 | 1381718243 | 26.95 | 32.61 | |
| Washer | ||||
| 301 | 141150130 | 1.56 | 1.89 | |
| SSK-switch DN 5X1,5X1250 HC260C 2,8 | ||||
| 302 | 8132732664 | 134.27 | 162.47 | |
| Hexagonal screw | ||||
| 303 | 6103001178 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 304 | 1382718263 | |||
| Hexagonal screw | ||||
| 305 | 141116240 | 1.67 | 2.02 | |
| Washer | ||||
| 306 | 141150810 | 1.56 | 1.89 | |
| POP RIVET 6X8 F FLAT ROUND HEAD | ||||
| 307 | 6621009530 | 1.56 | 1.89 | |
| V-GROOVE 5 PJ 864 CA.72 SHORE A | ||||
| 309 | 344260470 | 11.74 | 14.21 | |
| Zeskantschroef | ||||
| 310 | 141114860 | 1.68 | 2.03 | |
| V-groove pulley RDA 90X30,5 5JX94 HC260C | ||||
| 311 | 7240718299 | 21.64 | 26.18 | |
| Wedge TSF 55 | ||||
| 312 | 6721059322 | 1.55 | 1.88 | |
| Cylinder head screw | ||||
| 313 | 6121023081 | 1.56 | 1.89 | |
| Motor Carrier BL 2.99X120X307 HC260C | ||||
| 314 | 1382718301 | 18.80 | 22.75 | |
| SLOT BOLT WITH SQUARE INSERT M 8X16 VERZ | ||||
| 315 | 6110000632 | 1.56 | 1.89 | |
| SPACER SHAFT HC260C | ||||
| 318 | 341606150 | 16.25 | 19.66 | |
| E-MOTOR 2,80 KW 400/3/50-60/3000 HC260C | ||||
| 319 | 8013719374 | 539.38 | 652.65 | |
| No information available, not orderable | ||||
| 320 | 1382718336 | |||
| No information available, not orderable | ||||
| 321 | 1380718592 | |||
| Foot BL 2.50X88X563 HC260C | ||||
| 332 | 1382718344 | 16.25 | 19.66 | |
| RUBBER FOOT HC260C | ||||
| 333 | 7057718352 | 3.71 | 4.49 | |
| No longer available, no replacement | ||||
| 334 | 2380718092 | |||
