Here you will find all available parts and drawings of the 'Metabo 00621000 ( GPA18LTX )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

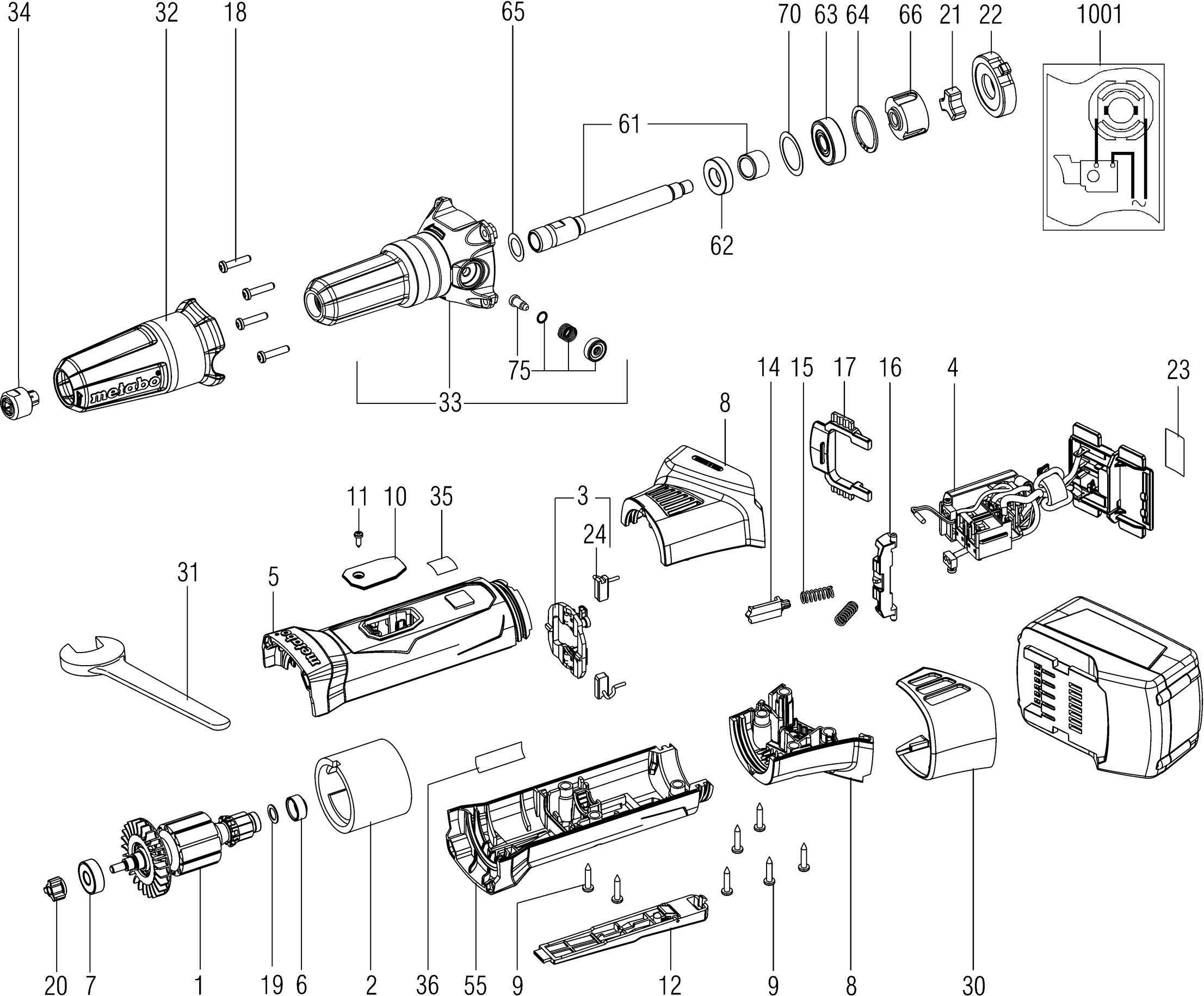

Technical drawing of model Metabo 00621000 ( GPA18LTX )
Spare parts list of model Metabo 00621000 ( GPA18LTX )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl. | ||||
| 1 | 310011270 | 37.65 | 45.56 | |
| Field package compl., 2 poles | ||||
| 2 | 311011880 | 53.86 | 65.17 | |
| Carbon brush holder compl., 18 V | ||||
| 3 | 316053210 | 12.23 | 14.80 | |
| Electronic Unit, 18v | ||||
| 4 | 343082750 | 113.82 | 137.72 | |
| Engine cover 2-part | ||||
| 5 | 343435970 | 16.25 | 19.66 | |
| Bus rubber | ||||
| 6 | 344098740 | 1.55 | 1.88 | |
| Ball bearing 8x22x 7 | ||||
| 7 | 143114880 | 3.02 | 3.65 | |
| Housing | ||||
| 8 | 343430690 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 9 | 141113180 | 1.55 | 1.88 | |
| Koolborsteldeksel | ||||
| 10 | 343398600 | 1.55 | 1.88 | |
| Self-tapp. fill. h. screw | ||||
| 11 | 141119900 | 1.55 | 1.88 | |
| Dead-man's switch fully | ||||
| 12 | 343410500 | 5.87 | 7.10 | |
| Steunstift | ||||
| 14 | 343398620 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 15 | 342003030 | 1.55 | 1.88 | |
| Vergrendelstuk | ||||
| 16 | 343430520 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 17 | 343430530 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 18 | 141116020 | 1.67 | 2.02 | |
| Washer | ||||
| 19 | 141152720 | 1.67 | 2.02 | |
| Carrier | ||||
| 20 | 341071110 | 13.48 | 16.31 | |
| Buffer | ||||
| 21 | 344099140 | 2.28 | 2.76 | |
| Lagerflens | ||||
| 22 | 315202620 | 16.25 | 19.66 | |
| Typeplaatje | ||||
| 23 | 338061920 | 1.55 | 1.88 | |
| Koolborstelset | ||||
| 24 | 316060540 | 10.38 | 12.56 | |
| Dust filter | ||||
| 30 | 343398890 | 5.87 | 7.10 | |
| Steeksleutel | ||||
| 31 | 344161300 | 5.87 | 7.10 | |
| Handle | ||||
| 32 | 344099150 | 7.22 | 8.74 | |
| Spilkop compl. | ||||
| 33 | 316051730 | 80.81 | 97.78 | |
| Spantang 6 mm met spanmoer (6-kant) | ||||
| 34 | 631945000 | 15.01 | 18.16 | |
| Identification plate | ||||
| 35 | 338129940 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 36 | 399999990 | |||
| Two-part Motor Hood | ||||
| 55 | 343437300 | 10.38 | 12.56 | |
| Spindle head compl. | ||||
| 61 | 316065220 | 48.48 | 58.66 | |
| Kogellager | ||||
| 62 | 143115930 | 7.22 | 8.74 | |
| Ball Bearing 10x30x9 | ||||
| 63 | 143111090 | 13.48 | 16.31 | |
| Retaining ring | ||||
| 64 | 141180370 | 1.55 | 1.88 | |
| Compensating washer | ||||
| 65 | 143115490 | 1.55 | 1.88 | |
| Kupplungsstueck | ||||
| 66 | 341071300 | 5.87 | 7.10 | |
| Compensating washer | ||||
| 70 | 143115470 | 1.55 | 1.88 | |
| Spilblokkering | ||||
| 75 | 316059800 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 1001 | 338505280 | |||
