Here you will find all available parts and drawings of the 'Metabo 00639000 (GA18LTXG)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

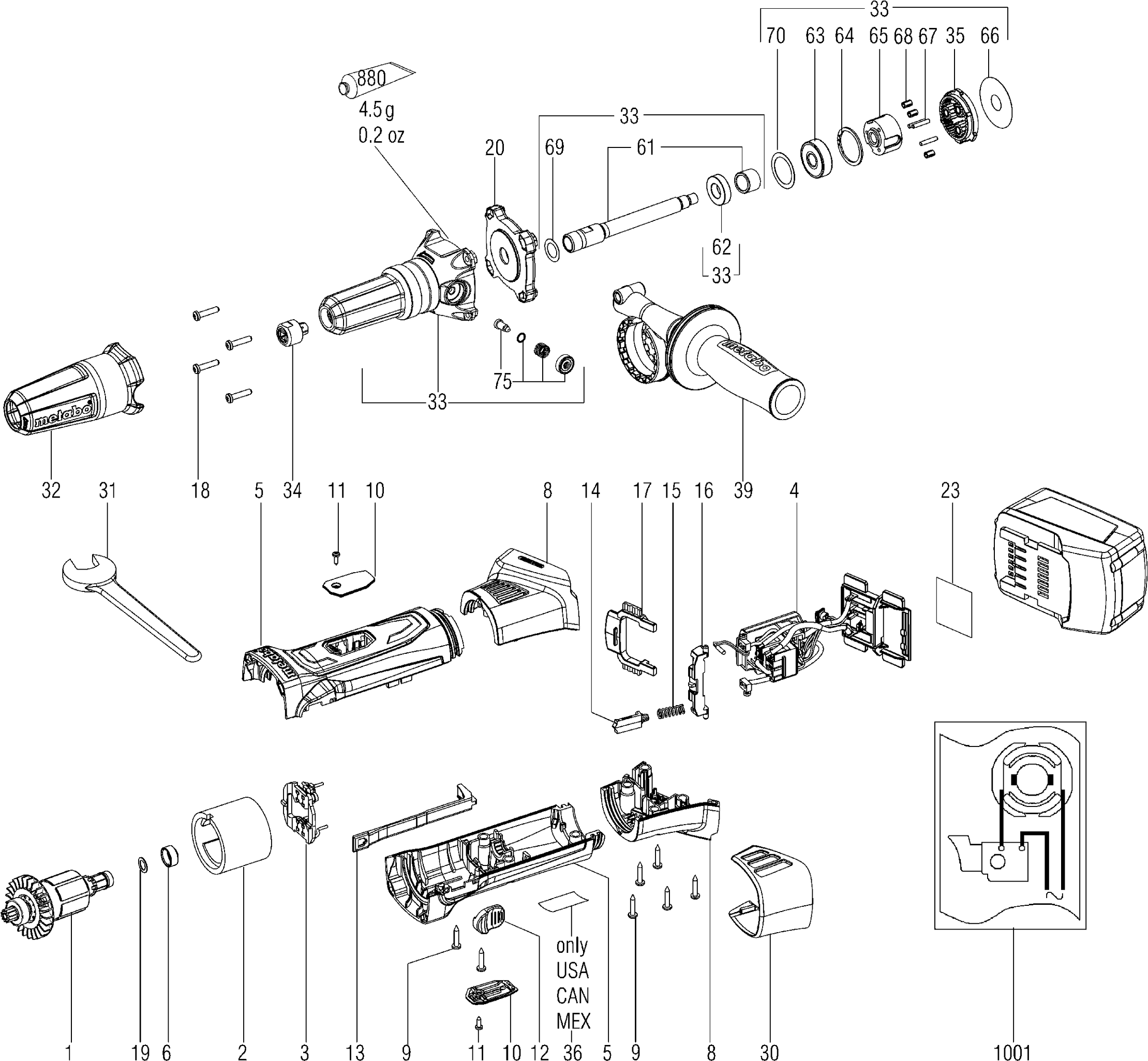

Technical drawing of model Metabo 00639000 (GA18LTXG)
Spare parts list of model Metabo 00639000 (GA18LTXG)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., | ||||
| 1 | 316063510 | 113.82 | 137.72 | |
| Field Pack | ||||
| 2 | 311011150 | 74.13 | 89.70 | |
| Carbon brush holder module compl., 18 V | ||||
| 3 | 316049390 | 16.25 | 19.66 | |
| Electronic Unit, 18v | ||||
| 4 | 343082750 | 113.82 | 137.72 | |
| Motor Housing | ||||
| 5 | 343398580 | 21.64 | 26.18 | |
| Bus rubber | ||||
| 6 | 344098740 | 1.56 | 1.89 | |
| Housing | ||||
| 8 | 343430690 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 9 | 141113180 | 1.56 | 1.89 | |
| Koolborsteldeksel | ||||
| 10 | 343398600 | 1.56 | 1.89 | |
| Self-tapp. fill. h. screw | ||||
| 11 | 141119900 | 1.56 | 1.89 | |
| Switch slide ,H/L | ||||
| 12 | 343397810 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 13 | 339136560 | 3.02 | 3.65 | |
| Steunstift | ||||
| 14 | 343398620 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 15 | 342003030 | 1.56 | 1.89 | |
| Vergrendelstuk | ||||
| 16 | 343430520 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 17 | 343430530 | 1.68 | 2.03 | |
| Fillister head screw | ||||
| 18 | 141123490 | 1.56 | 1.89 | |
| Washer | ||||
| 19 | 141152720 | 1.68 | 2.03 | |
| Lagerflens | ||||
| 20 | 315202610 | 24.23 | 29.32 | |
| Typeplaatje | ||||
| 23 | 338058070 | 1.56 | 1.89 | |
| Dust filter | ||||
| 30 | 343398890 | 5.87 | 7.10 | |
| Steeksleutel | ||||
| 31 | 344160400 | 4.51 | 5.46 | |
| Handle | ||||
| 32 | 344099150 | 7.22 | 8.74 | |
| Spilkop compl. | ||||
| 33 | 316051720 | 148.53 | 179.72 | |
| Spindlehead complete | ||||
| 33 | 316051580 | 60.59 | 73.31 | |
| No information available, not orderable | ||||
| 34 | 630820000 | |||
| Getriebeteile vollst. | ||||
| 35 | 316063500 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 36 | 399999990 | |||
| Side support handle compl. | ||||
| 39 | 314001030 | 12.23 | 14.80 | |
| Spindle head compl. | ||||
| 61 | 316065220 | 48.48 | 58.66 | |
| Spindle axis | ||||
| 61 | 341161360 | 43.15 | 52.21 | |
| Deep groove ball bearing,12x24x6 | ||||
| 62 | 143115270 | 10.38 | 12.56 | |
| Kogellager | ||||
| 62 | 143115930 | 7.22 | 8.74 | |
| Ball Bearing 10x30x9 | ||||
| 63 | 143111090 | 13.48 | 16.31 | |
| Retaining ring | ||||
| 64 | 141180370 | 1.56 | 1.89 | |
| Planet carrier | ||||
| 65 | 341071120 | 48.48 | 58.66 | |
| Planetary carrier complete. | ||||
| 65 | 316080360 | 18.80 | 22.75 | |
| Butting Washer | ||||
| 66 | 341080230 | 1.56 | 1.89 | |
| Needle roller | ||||
| 67 | 143115440 | 1.56 | 1.89 | |
| Needle Roller and Cage | ||||
| 68 | 143115450 | 4.51 | 5.46 | |
| Compensating washer | ||||
| 69 | 143115490 | 1.56 | 1.89 | |
| Compensating washer | ||||
| 70 | 143115470 | 1.56 | 1.89 | |
| Spilblokkering | ||||
| 75 | 316059800 | 10.38 | 12.56 | |
| Grooved cylindrical pin | ||||
| 80 | 141164110 | 1.56 | 1.89 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
