Here you will find all available parts and drawings of the 'Metabo 00737001 ( FME737 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

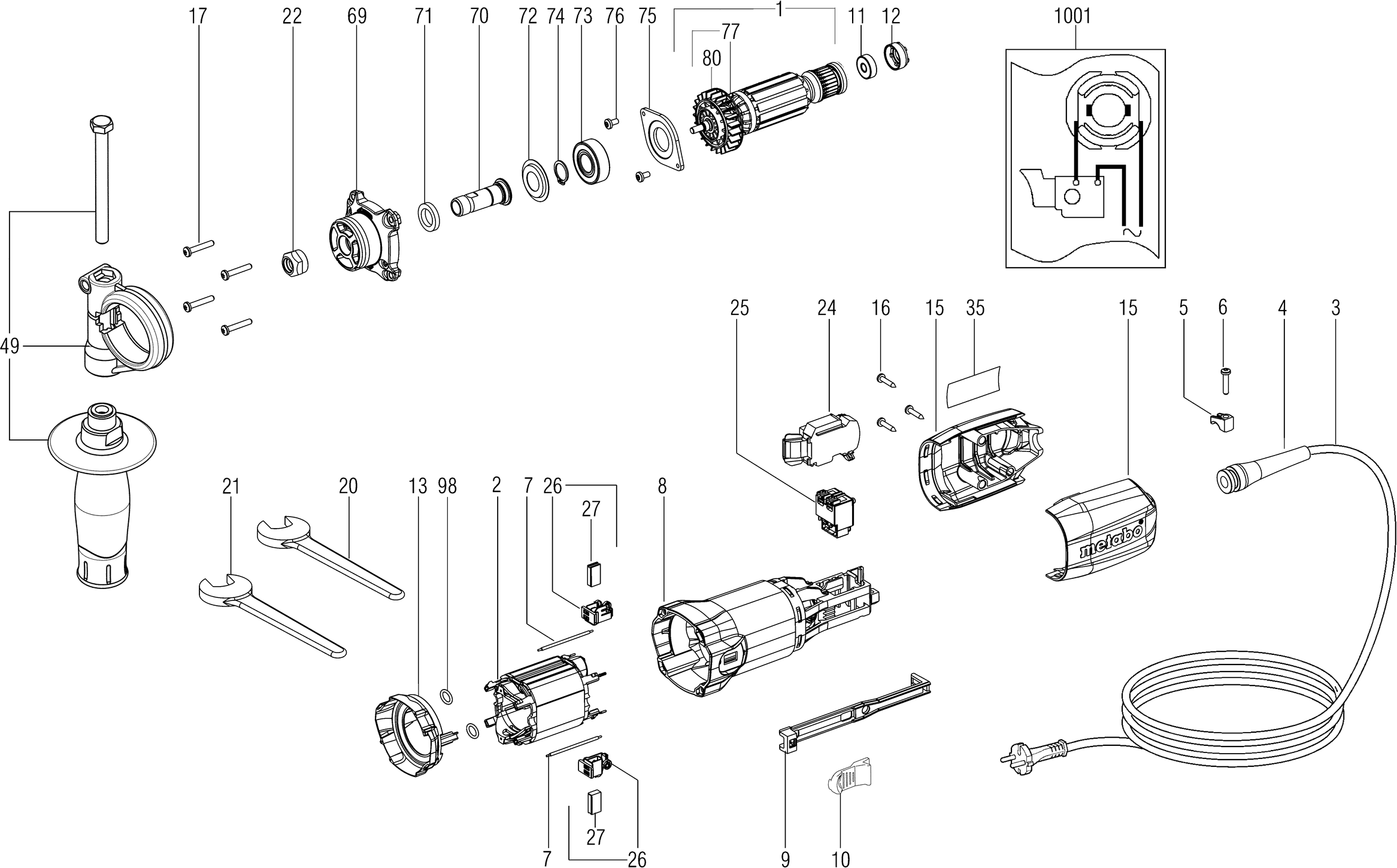

Technical drawing of model Metabo 00737001 ( FME737 )
Spare parts list of model Metabo 00737001 ( FME737 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310010610 | 60.59 | 73.31 | |
| Field | ||||
| 2 | 311012230 | 24.23 | 29.32 | |
| Kabel m. CEE-stekker | ||||
| 3 | 344493180 | 21.64 | 26.18 | |
| Kabelbescherming | ||||
| 4 | 344097360 | 1.55 | 1.88 | |
| Cable clip | ||||
| 5 | 343362490 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 6 | 141117060 | 1.67 | 2.02 | |
| Verbindingsdraad compl. | ||||
| 7 | 344498880 | 1.55 | 1.88 | |
| Motor housing | ||||
| 8 | 315013660 | 11.74 | 14.21 | |
| Schakelstang | ||||
| 9 | 343430940 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 10 | 343435330 | 1.55 | 1.88 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.55 | 1.88 | |
| Luchtgeleidingsschijf | ||||
| 13 | 343436590 | 2.28 | 2.76 | |
| Motorkap 2-delig | ||||
| 15 | 343430910 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 16 | 141113180 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 17 | 141117060 | 1.67 | 2.02 | |
| Steeksleutel | ||||
| 20 | 344161300 | 5.87 | 7.10 | |
| Steeksleutel | ||||
| 21 | 344162400 | 5.18 | 6.27 | |
| Spantang 8 mm met spanmoer (6-kant) | ||||
| 22 | 631946000 | 11.95 | 14.46 | |
| Elektro.unit,230V | ||||
| 24 | 343082840 | 37.65 | 45.56 | |
| Schakelaar | ||||
| 25 | 343409640 | 7.22 | 8.74 | |
| Koolborstelhouder compl. uitsch.,230V | ||||
| 26 | 316046890 | 11.74 | 14.21 | |
| Brush Set Turn Off | ||||
| 27 | 316046900 | 11.74 | 14.21 | |
| Leistungsschild, 00737001 FME 737 | ||||
| 35 | 338062030 | 1.55 | 1.88 | |
| Handgreep compl. | ||||
| 49 | 314000840 | 8.89 | 10.76 | |
| Spindle head | ||||
| 69 | 315105130 | 11.74 | 14.21 | |
| Wellenstummel | ||||
| 70 | 341210360 | 43.15 | 52.21 | |
| Felt ring | ||||
| 71 | 143191190 | 1.55 | 1.88 | |
| Afdichtring | ||||
| 72 | 339003480 | 1.67 | 2.02 | |
| Kogellager 15x35x11 | ||||
| 73 | 143114650 | 12.23 | 14.80 | |
| snap ring | ||||
| 74 | 141180090 | 1.67 | 2.02 | |
| Clamping washer | ||||
| 75 | 339007590 | 5.18 | 6.27 | |
| Fillister head screw | ||||
| 76 | 141119850 | 1.55 | 1.88 | |
| Fan with protection | ||||
| 77 | 316051700 | 5.18 | 6.27 | |
| Fan | ||||
| 80 | 330002060 | 3.02 | 3.65 | |
| O-ring | ||||
| 98 | 143195530 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 1001 | 338505710 | |||
