Here you will find all available parts and drawings of the 'Metabo 19250001 ( DSD250 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

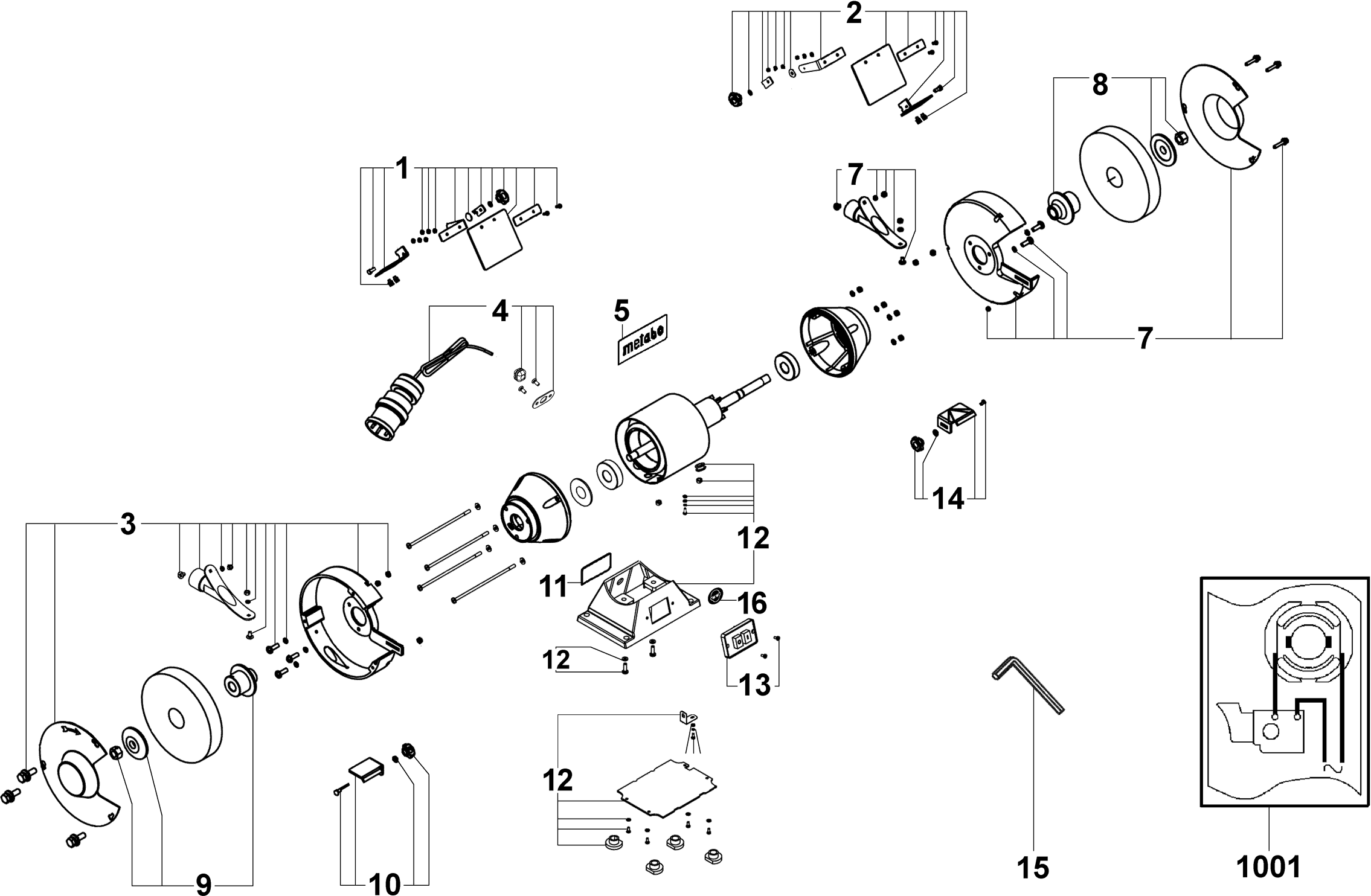

Technical drawing of model Metabo 19250001 ( DSD250 )
Spare parts list of model Metabo 19250001 ( DSD250 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Eye protection compl. left | ||||
| 1 | 316046640 | 10.38 | 12.56 | |
| Eye protection right compl. | ||||
| 2 | 316046650 | 10.38 | 12.56 | |
| Complete left protector | ||||
| 3 | 316046430 | 113.82 | 137.72 | |
| 5-core cable with plug | ||||
| 4 | 344533290 | 37.65 | 45.56 | |
| Metabo-plaatje | ||||
| 5 | 338122240 | 1.55 | 1.88 | |
| Beschermkap compl. rechts | ||||
| 7 | 316046620 | 113.82 | 137.72 | |
| Right clamping flange compl. | ||||
| 8 | 316046630 | 53.86 | 65.17 | |
| Complete left clamping flange | ||||
| 9 | 316046610 | 53.86 | 65.17 | |
| Supporing Angle compl.left | ||||
| 10 | 316046660 | 3.71 | 4.49 | |
| Typeplaatje | ||||
| 11 | 338053560 | 1.55 | 1.88 | |
| Voet compl. | ||||
| 12 | 316046670 | 60.59 | 73.31 | |
| Complete Switch | ||||
| 13 | 343409470 | 32.27 | 39.05 | |
| Support corner right compl. | ||||
| 14 | 316046680 | 3.71 | 4.49 | |
| Inbussleutel | ||||
| 15 | 344161530 | 1.67 | 2.02 | |
| Safety Glasses Identification Plate | ||||
| 16 | 338122630 | 1.55 | 1.88 | |
