Here you will find all available parts and drawings of the 'Metabo 19201000 (DSD200)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

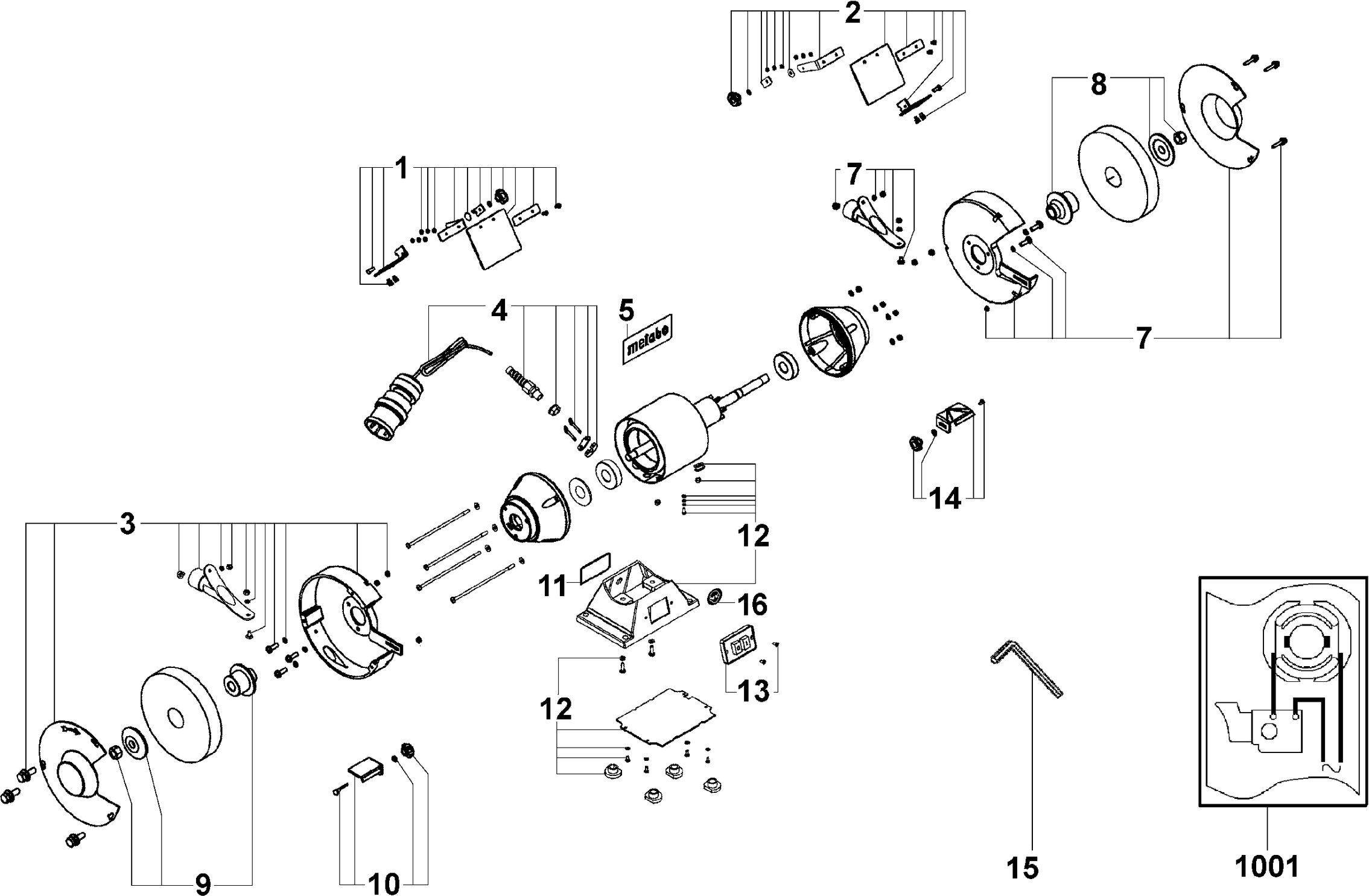

Technical drawing of model Metabo 19201000 (DSD200)
Spare parts list of model Metabo 19201000 (DSD200)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Eye protection compl. left | ||||
| 1 | 316046380 | 7.58 | 9.17 | |
| Oogbescherming rechts compl. | ||||
| 2 | 316046390 | 10.82 | 13.09 | |
| Complete left protector | ||||
| 3 | 316042500 | 100.68 | 121.82 | |
| Cable with plug, 400 V | ||||
| 4 | 344498220 | 35.72 | 43.22 | |
| Metabo-plaatje | ||||
| 5 | 338122290 | 1.67 | 2.02 | |
| Beschermkap compl. rechts | ||||
| 7 | 316046360 | 100.68 | 121.82 | |
| Spanflens rechts compl. | ||||
| 8 | 316047450 | 24.26 | 29.35 | |
| Spanflens compl.linkerzijde | ||||
| 9 | 316046350 | 24.26 | 29.35 | |
| Steunhoek compl.links | ||||
| 10 | 316046400 | 3.20 | 3.87 | |
| Typeplaatje | ||||
| 11 | 338053550 | 1.67 | 2.02 | |
| Voet compl. | ||||
| 12 | 316046420 | 57.79 | 69.93 | |
| Schakelaar compl. | ||||
| 13 | 343409360 | 35.72 | 43.22 | |
| Steunhoek rechts compl. | ||||
| 14 | 316046410 | 3.20 | 3.87 | |
| Inbussleutel | ||||
| 15 | 344161530 | 1.79 | 2.17 | |
| Safety Glasses Identification Plate | ||||
| 16 | 338122630 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 1001 | 338505240 | |||
