Here you will find all available parts and drawings of the 'Metabo 0901012440-10 (DS1610)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

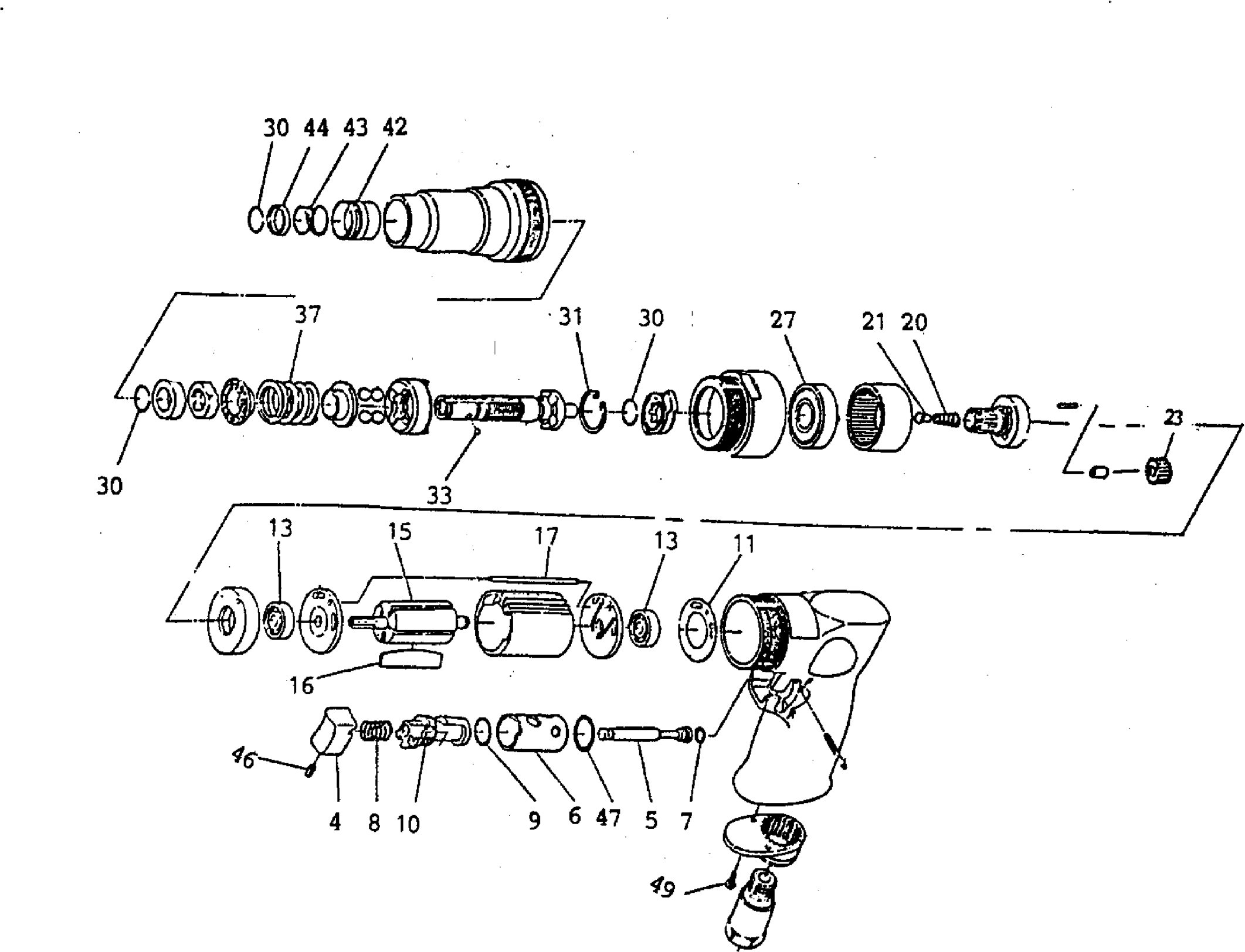

Technical drawing of model Metabo 0901012440-10 (DS1610)
Spare parts list of model Metabo 0901012440-10 (DS1610)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| OPERATION LEVER ET | ||||
| 4 | 1310159979 | 5.49 | 6.64 | |
| VALVE ROD ET | ||||
| 5 | 1319159980 | 5.49 | 6.64 | |
| Admission Conversion Lever ET | ||||
| 6 | 1319160414 | 15.31 | 18.53 | |
| O-RING 4.1X1.9 ET | ||||
| 7 | 7632160008 | 3.20 | 3.87 | |
| Valve Spring ET | ||||
| 8 | 1319160015 | 3.20 | 3.87 | |
| O-RING 11.2X1.6 ET | ||||
| 9 | 7632160024 | 3.20 | 3.87 | |
| CONVERSION LEVER ET | ||||
| 10 | 1310160420 | 13.93 | 16.86 | |
| Motor Gasket ET | ||||
| 11 | 7631160047 | 2.43 | 2.94 | |
| Ball bearing 6X19X6 626 -2Z | ||||
| 13 | 7100047262 | 3.89 | 4.71 | |
| Rotor ET | ||||
| 15 | 1319160449 | 52.36 | 63.36 | |
| Lamella of Rotor ET | ||||
| 16 | 1319160082 | 4.78 | 5.78 | |
| Pin ET | ||||
| 17 | 1319160457 | 2.43 | 2.94 | |
| SPRING ET | ||||
| 20 | 7051160481 | 3.20 | 3.87 | |
| Spring guide ET | ||||
| 21 | 1319160490 | 3.20 | 3.87 | |
| Planetary gear DW 1610/20 /ET | ||||
| 23 | 7247160510 | 21.22 | 25.68 | |
| No information available, not orderable | ||||
| 27 | 7100083463 | |||
| SECURITY RING ET | ||||
| 30 | 6400160560 | 6.05 | 7.32 | |
| No information available, not orderable | ||||
| 31 | 6401160572 | |||
| STEEL BALL ET | ||||
| 33 | 7123160597 | 3.89 | 4.71 | |
| Compression Spring | ||||
| 37 | 7051160635 | 9.36 | 11.33 | |
| Ball Reception ET | ||||
| 42 | 1315160681 | 9.36 | 11.33 | |
| SPRING ET | ||||
| 43 | 7051160694 | 3.20 | 3.87 | |
| Pressure Ring ET | ||||
| 44 | 1315160703 | 2.43 | 2.94 | |
| Pin Tap with Morse Taper M 4X6 | ||||
| 46 | 6161158982 | 1.67 | 2.02 | |
| O-RING 13.5X1.95 ET | ||||
| 47 | 7632160180 | 3.20 | 3.87 | |
| No information available, not orderable | ||||
| 49 | 6172039632 | |||
