Here you will find all available parts and drawings of the 'Metabo 04160000 (DS150Plus)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

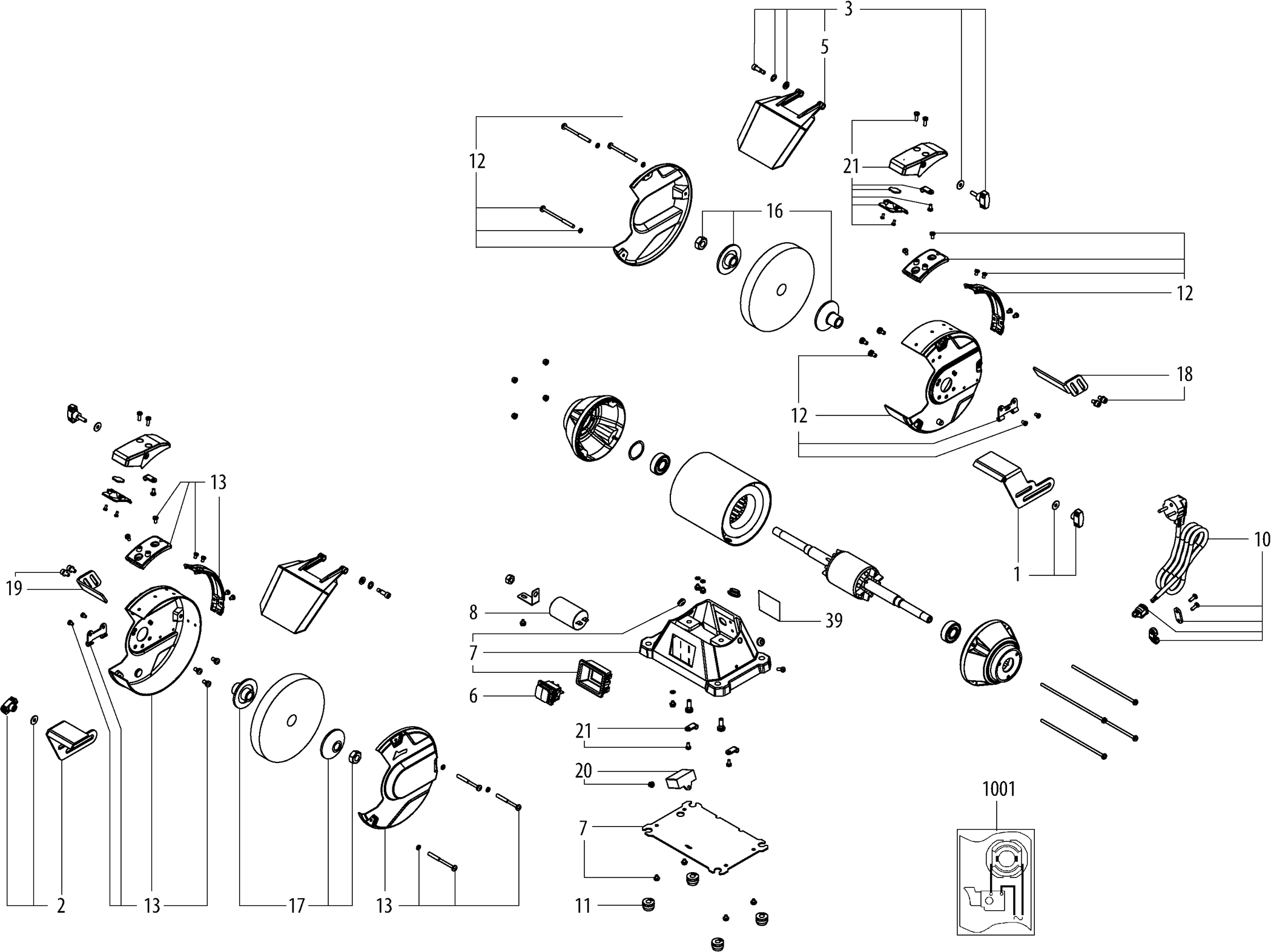

Technical drawing of model Metabo 04160000 (DS150Plus)
Spare parts list of model Metabo 04160000 (DS150Plus)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Complete workpiece support | ||||
| 1 | 316077700 | 3.89 | 4.71 | |
| Complete workpiece support | ||||
| 2 | 316077720 | 3.89 | 4.71 | |
| Eye protection compl. left | ||||
| 3 | 316077750 | 4.78 | 5.78 | |
| Eye guard | ||||
| 5 | 344350900 | 2.43 | 2.94 | |
| Switch | ||||
| 6 | 343413240 | 10.82 | 13.09 | |
| Complete foot | ||||
| 7 | 316077760 | 24.26 | 29.35 | |
| Capacitor 10mF | ||||
| 8 | 343255410 | 7.58 | 9.17 | |
| Cable complete. | ||||
| 10 | 344534220 | 12.19 | 14.75 | |
| Rubber Base | ||||
| 11 | 344115280 | 1.67 | 2.02 | |
| Complete left protector | ||||
| 12 | 316077800 | 35.72 | 43.22 | |
| Wheel guard compl.right | ||||
| 13 | 316077840 | 35.72 | 43.22 | |
| Complete flange | ||||
| 16 | 316077890 | 9.36 | 11.33 | |
| Complete flange | ||||
| 17 | 316077930 | 9.36 | 11.33 | |
| COMPLETE SPARK PROTECTION | ||||
| 18 | 316077960 | 4.78 | 5.78 | |
| COMPLETE SPARK PROTECTION | ||||
| 19 | 316077970 | 4.78 | 5.78 | |
| LED compl. | ||||
| 20 | 316077980 | 13.93 | 16.86 | |
| LED compl. | ||||
| 21 | 316077990 | 15.31 | 18.53 | |
| Type plate HK 85 EB 230V | ||||
| 39 | 338080640 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 1001 | 338511100 | |||
