Here you will find all available parts and drawings of the 'Metabo 01565000 ( DKG90/25 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

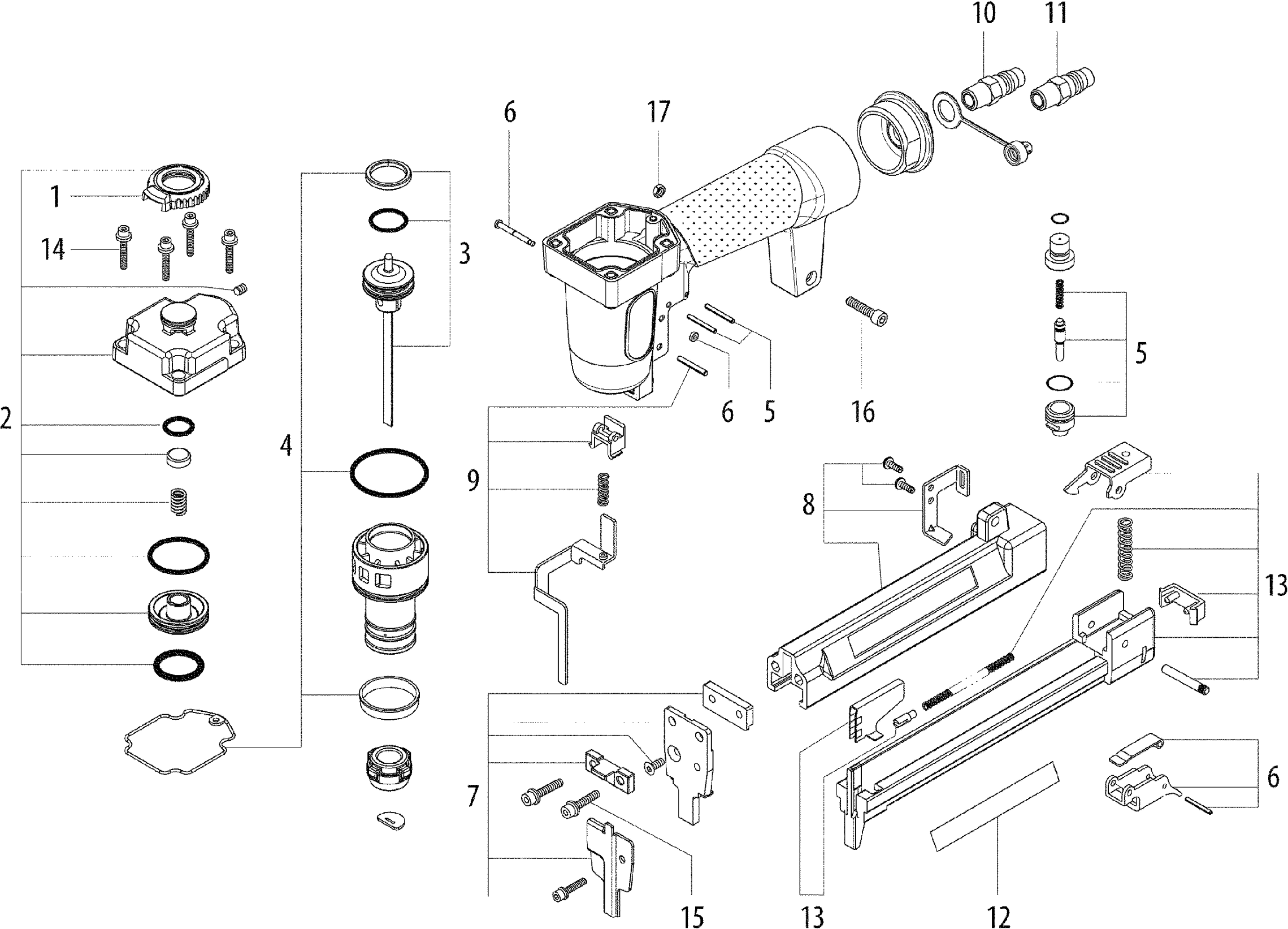

Technical drawing of model Metabo 01565000 ( DKG90/25 )
Spare parts list of model Metabo 01565000 ( DKG90/25 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Luftauslass | ||||
| 1 | 343437230 | 2.28 | 2.76 | |
| Cover for housing complete | ||||
| 2 | 316058870 | 18.80 | 22.75 | |
| Stoter compl. | ||||
| 3 | 316058910 | 18.80 | 22.75 | |
| Pakking set | ||||
| 4 | 316058920 | 10.38 | 12.56 | |
| Ventiel compl. | ||||
| 5 | 316058930 | 3.02 | 3.65 | |
| Schakelaar compl. | ||||
| 6 | 316058940 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 7 | 316058980 | |||
| No information available, not orderable | ||||
| 8 | 316059020 | |||
| Trigger compl. | ||||
| 9 | 316059080 | 8.89 | 10.76 | |
| Plug Nipple (EURO) | ||||
| 10 | 341161790 | 5.18 | 6.27 | |
| Plug Nipple WIG/SB 41-61 (ARO) | ||||
| 11 | 341161810 | 5.18 | 6.27 | |
| Typeplaatje | ||||
| 12 | 338062340 | 1.55 | 1.88 | |
| Magazine cover compl. | ||||
| 13 | 316059040 | 53.86 | 65.17 | |
| Cilinderschroef | ||||
| 14 | 141113620 | 1.67 | 2.02 | |
| Cilinderkopschroef m.inbus | ||||
| 15 | 141124020 | 2.28 | 2.76 | |
| Cap screw | ||||
| 16 | 141123570 | 1.55 | 1.88 | |
| Zeskantveiligheidsmoer | ||||
| 17 | 141130930 | 1.55 | 1.88 | |
