Here you will find all available parts and drawings of the 'Metabo 04116000 (DG25SET)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

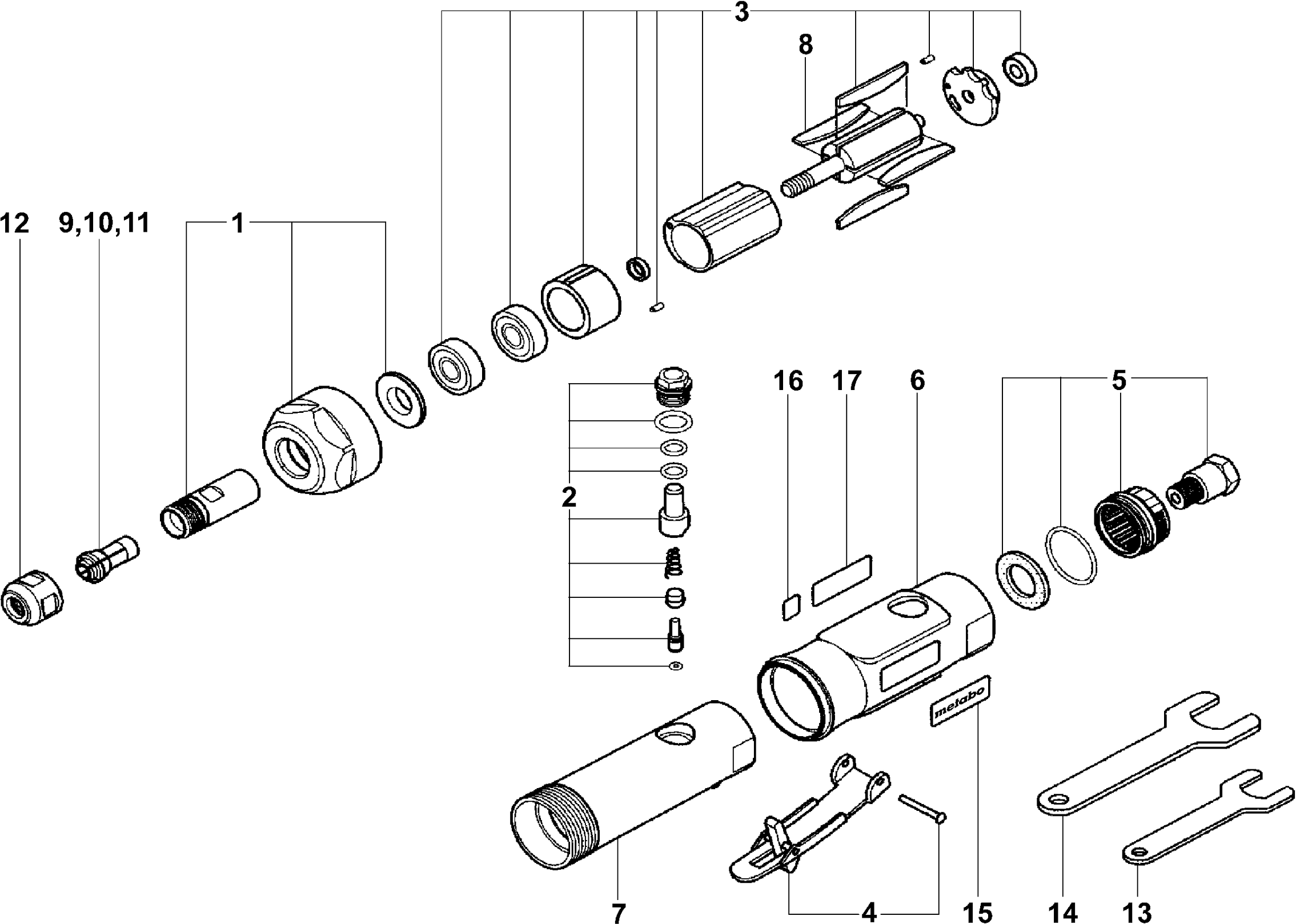

Technical drawing of model Metabo 04116000 (DG25SET)
Spare parts list of model Metabo 04116000 (DG25SET)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Afdekking compl. | ||||
| 1 | 316053080 | 32.27 | 39.05 | |
| Ventiel compl. | ||||
| 2 | 316053090 | 10.38 | 12.56 | |
| Ventiel compl. | ||||
| 3 | 316053100 | 128.32 | 155.27 | |
| BEDIENINGSHEFBOOM cpl. | ||||
| 4 | 316053110 | 13.48 | 16.31 | |
| Air Inlet Complete. | ||||
| 5 | 316053120 | 13.48 | 16.31 | |
| Handle | ||||
| 6 | 343433350 | 13.48 | 16.31 | |
| Housing | ||||
| 7 | 343433360 | 32.27 | 39.05 | |
| LAMEL V. ROTOR | ||||
| 8 | 344099480 | 7.22 | 8.74 | |
| Spantang,1/4" | ||||
| 9 | 341210530 | 13.48 | 16.31 | |
| Collet, 6mm | ||||
| 10 | 344600840 | 13.48 | 16.31 | |
| Collet, 3mm | ||||
| 11 | 344600850 | 13.48 | 16.31 | |
| Wartelmoer | ||||
| 12 | 341102350 | 8.89 | 10.76 | |
| OPEN END SPANNER | ||||
| 13 | 344163900 | 5.18 | 6.27 | |
| OPEN END SPANNER | ||||
| 14 | 344163910 | 4.51 | 5.46 | |
| Metabo-plaatje | ||||
| 15 | 338120670 | 1.56 | 1.89 | |
| Indication label warning | ||||
| 16 | 338123870 | 1.56 | 1.89 | |
| Rating plate | ||||
| 17 | 338058780 | 1.56 | 1.89 | |
