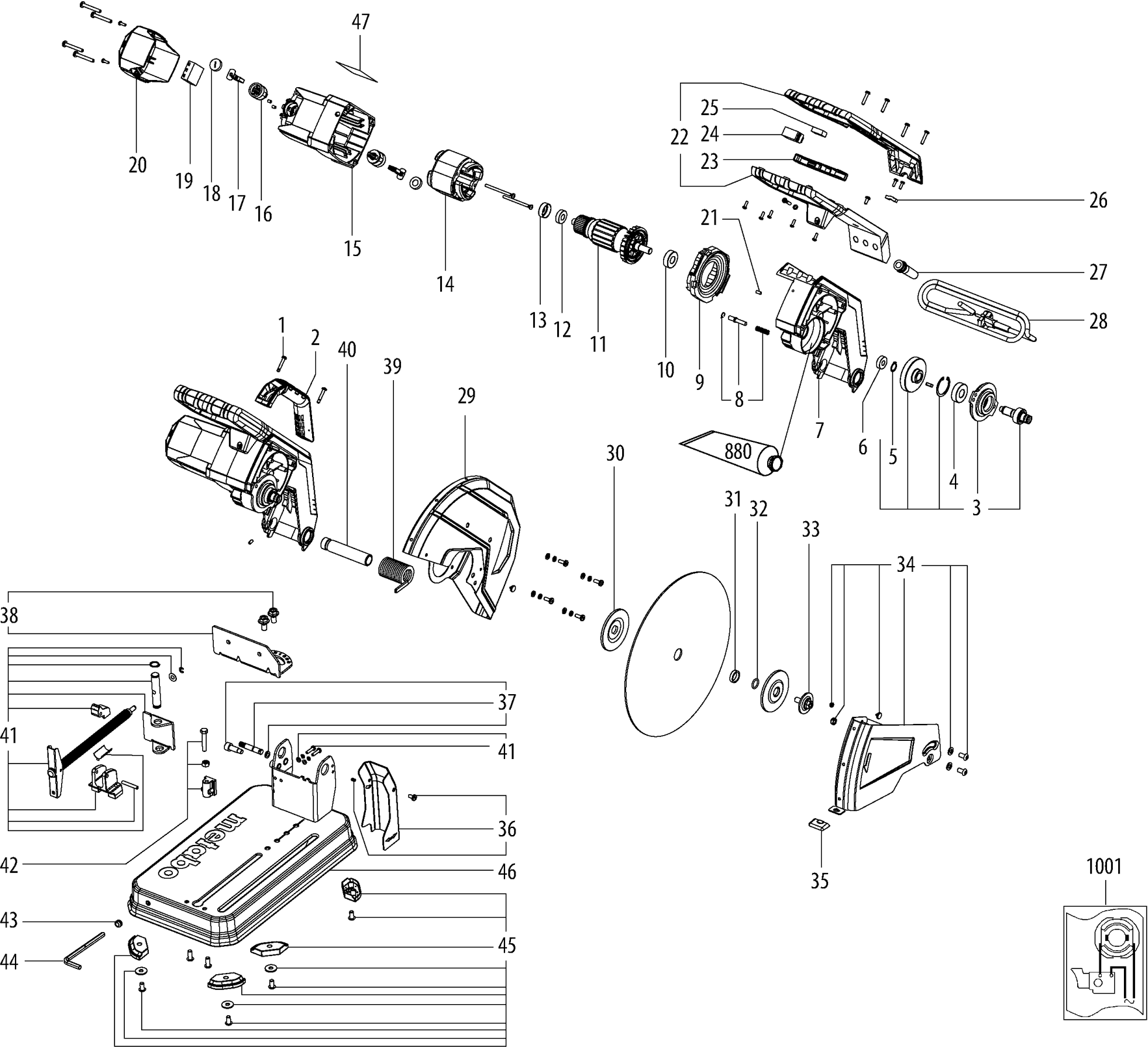

Technical drawing of model Metabo 01787000 (CS24-355S)
Spare parts list of model Metabo 01787000 (CS24-355S)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BAG OF SCREWS CS 22-355 | ||||
| 1 | 341164430 | 1.56 | 1.89 | |
| Handle TSC 55 | ||||
| 2 | 341117740 | 3.02 | 3.65 | |
| Complete drive | ||||
| 3 | 316073370 | 32.27 | 39.05 | |
| Ball bearing 17x40x12 | ||||
| 4 | 143110480 | 16.25 | 19.66 | |
| Lock Ring | ||||
| 5 | 141180100 | 1.68 | 2.03 | |
| Ball Bearing 10x26x8 | ||||
| 6 | 143111120 | 16.25 | 19.66 | |
| Gear Housing | ||||
| 7 | 315106740 | 60.59 | 73.31 | |
| Spindle Stop | ||||
| 8 | 316073380 | 1.68 | 2.03 | |
| Air guide disc | ||||
| 9 | 339153160 | 1.68 | 2.03 | |
| Kogellager 15x35x11 | ||||
| 10 | 143114870 | 13.48 | 16.31 | |
| Armature | ||||
| 11 | 310013640 | 100.74 | 121.90 | |
| Kogellager 12x28x 8 | ||||
| 12 | 143114800 | 12.23 | 14.80 | |
| Rubber buffer | ||||
| 13 | 344104010 | 1.56 | 1.89 | |
| Field package m.winding | ||||
| 14 | 311013710 | 67.33 | 81.47 | |
| Motor Housing | ||||
| 15 | 343456590 | 13.48 | 16.31 | |
| Carbon brush holder compl. | ||||
| 16 | 316073410 | 8.89 | 10.76 | |
| Carbon brush holder compl. | ||||
| 17 | 316073510 | 10.38 | 12.56 | |
| Cover Cap Cpl. | ||||
| 18 | 316073500 | 1.56 | 1.89 | |
| Terminal Block | ||||
| 19 | 343089540 | 21.64 | 26.18 | |
| Motor Hood | ||||
| 20 | 343456600 | 3.02 | 3.65 | |
| Rubber Stopper | ||||
| 21 | 344104020 | 1.56 | 1.89 | |
| Complete Handle | ||||
| 22 | 316073420 | 8.89 | 10.76 | |
| Red switch button | ||||
| 23 | 343456610 | 1.56 | 1.89 | |
| Switch | ||||
| 24 | 343456630 | 8.89 | 10.76 | |
| Interference Suppressor | ||||
| 25 | 343255340 | 1.56 | 1.89 | |
| CABLE CLAMP | ||||
| 26 | 343441950 | 3.02 | 3.65 | |
| Socket | ||||
| 27 | 344104040 | 1.56 | 1.89 | |
| Cable with plug (Australia) | ||||
| 28 | 344533750 | 32.27 | 39.05 | |
| PROTECTION COVER | ||||
| 29 | 339206920 | 43.15 | 52.21 | |
| Flange OS 400 EQ | ||||
| 30 | 341032390 | 5.87 | 7.10 | |
| Spacers | ||||
| 31 | 341006880 | 1.68 | 2.03 | |
| O-Ring | ||||
| 32 | 344104050 | 1.56 | 1.89 | |
| Complete fixing screw | ||||
| 33 | 316073520 | 4.51 | 5.46 | |
| Complete pendulum guard | ||||
| 34 | 316098680 | 16.25 | 19.66 | |
| PROTECTION COVER | ||||
| 35 | 339145940 | 1.56 | 1.89 | |
| COMPLETE SPARK PROTECTION | ||||
| 36 | 316073440 | 5.87 | 7.10 | |
| Complete transport lock | ||||
| 37 | 316073450 | 3.02 | 3.65 | |
| ANGULAR GUIDE | ||||
| 38 | 339141530 | 12.23 | 14.80 | |
| Spring | ||||
| 39 | 342024660 | 13.48 | 16.31 | |
| STIFT | ||||
| 40 | 341516930 | 3.66 | 4.43 | |
| Complete clamp unit | ||||
| 41 | 316073460 | 32.27 | 39.05 | |
| Complete depth guide | ||||
| 42 | 316073470 | 4.51 | 5.46 | |
| Bush Rubber | ||||
| 43 | 344104030 | 1.56 | 1.89 | |
| Hexagon-Socket Key | ||||
| 44 | 344162620 | 7.22 | 8.74 | |
| Complete rubber foot | ||||
| 45 | 316073480 | 4.51 | 5.46 | |
| Complete Base Plate | ||||
| 46 | 316073490 | 72.76 | 88.04 | |
| Type plate HK 85 EB 230V | ||||
| 47 | 338078160 | 1.68 | 2.03 | |
| GREASE | ||||
| 880 | 344131500 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 1001 | 338510830 | |||
