Here you will find all available parts and drawings of the 'Metabo 02335000 (CS23-355)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

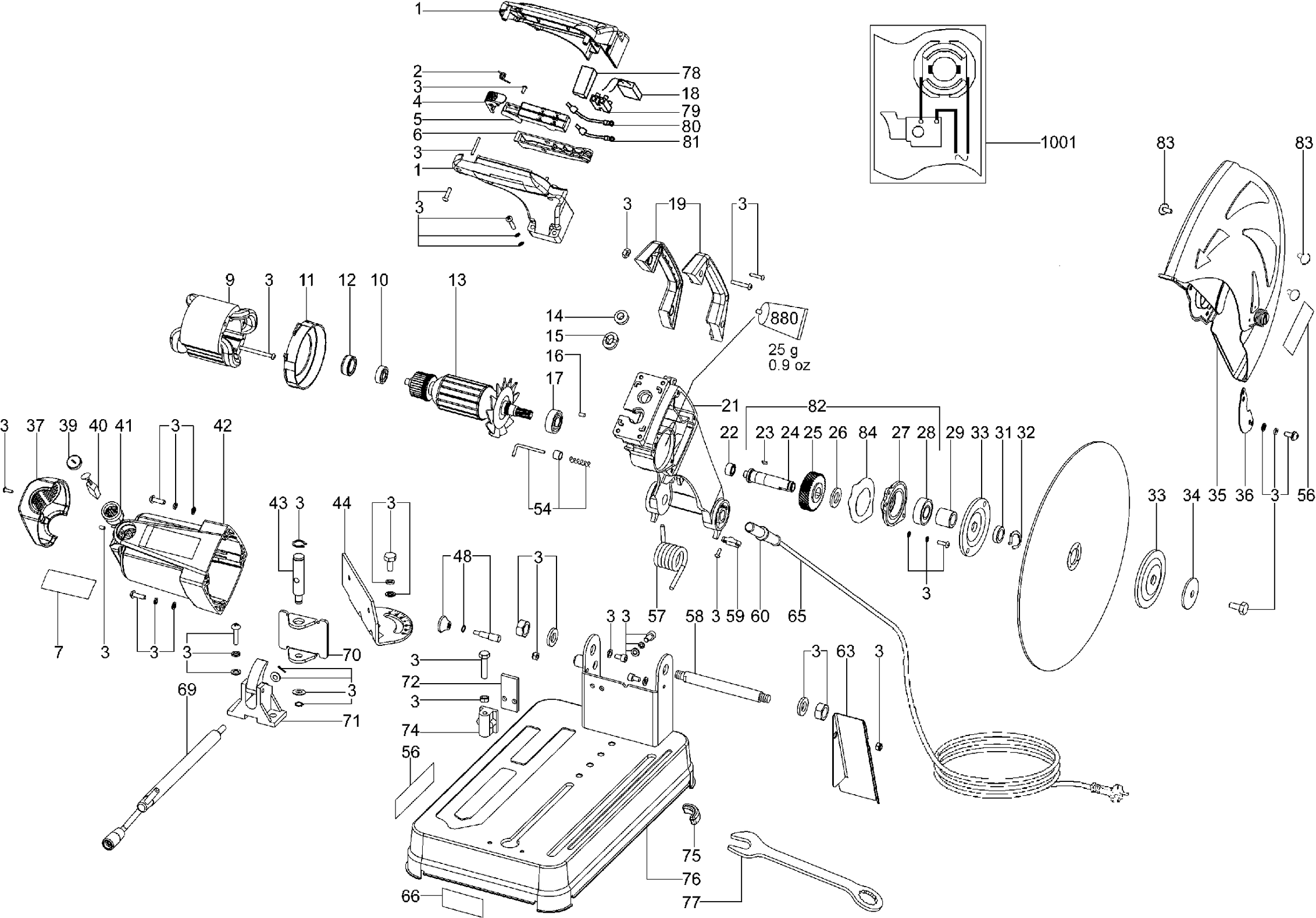

Technical drawing of model Metabo 02335000 (CS23-355)
Spare parts list of model Metabo 02335000 (CS23-355)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Complete Handle Shell | ||||
| 1 | 316043680 | 7.22 | 8.74 | |
| Left Torsion spring | ||||
| 2 | 342022140 | 1.56 | 1.89 | |
| Schroevenset | ||||
| 3 | 316042960 | 11.74 | 14.21 | |
| Schakelblokkering | ||||
| 4 | 343394670 | 1.56 | 1.89 | |
| Schakelaar | ||||
| 5 | 343408980 | 10.38 | 12.56 | |
| Schakelaar afdekking | ||||
| 6 | 344098340 | 1.56 | 1.89 | |
| Typeplaatje | ||||
| 7 | 338049670 | 1.56 | 1.89 | |
| Field | ||||
| 9 | 311010880 | 67.33 | 81.47 | |
| Ball bearing 9x26x 8 | ||||
| 10 | 143114860 | 11.74 | 14.21 | |
| Luchtgeleiderschijf | ||||
| 11 | 343394600 | 1.56 | 1.89 | |
| Rubberen ring | ||||
| 12 | 344098370 | 1.56 | 1.89 | |
| Anker 230 V | ||||
| 13 | 310009340 | 74.13 | 89.70 | |
| Cable protection, 230V | ||||
| 14 | 344098350 | 18.80 | 22.75 | |
| Cable protection, 120V | ||||
| 15 | 344098360 | 1.56 | 1.89 | |
| Stop rubber | ||||
| 16 | 344098380 | 1.56 | 1.89 | |
| Kogellager 15X 35X 11 | ||||
| 17 | 143115100 | 7.22 | 8.74 | |
| Condensator | ||||
| 18 | 343254490 | 3.71 | 4.49 | |
| Handgreep compl. | ||||
| 19 | 316043690 | 3.02 | 3.65 | |
| Motor bracket | ||||
| 21 | 315416390 | 37.65 | 45.56 | |
| Kogellager 10x26x 8 | ||||
| 22 | 143114040 | 11.74 | 14.21 | |
| Key | ||||
| 23 | 341147850 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 24 | 341147860 | |||
| Gear wheel | ||||
| 25 | 341201010 | 11.74 | 14.21 | |
| Ring | ||||
| 26 | 344098320 | 1.56 | 1.89 | |
| Gear bearing cover | ||||
| 27 | 315416380 | 3.02 | 3.65 | |
| Ball bearing 17x40x12 | ||||
| 28 | 143110460 | 16.25 | 19.66 | |
| Afstandshuls | ||||
| 29 | 341005750 | 1.56 | 1.89 | |
| Afstandshuls | ||||
| 31 | 341005760 | 2.28 | 2.76 | |
| Retaining ring | ||||
| 32 | 141180110 | 1.68 | 2.03 | |
| Flange | ||||
| 33 | 341031980 | 5.87 | 7.10 | |
| Steunschijf | ||||
| 34 | 341012990 | 1.56 | 1.89 | |
| Beschermkap compl. | ||||
| 35 | 339203110 | 48.48 | 58.66 | |
| Flange protection | ||||
| 36 | 341032010 | 1.56 | 1.89 | |
| Motor housing cover | ||||
| 37 | 343394620 | 3.71 | 4.49 | |
| Cover for Carbon Brushes | ||||
| 39 | 343000940 | 1.56 | 1.89 | |
| Brush Set, 230V | ||||
| 40 | 316042970 | 8.89 | 10.76 | |
| Koolborstelhouder | ||||
| 41 | 343000930 | 5.18 | 6.27 | |
| Motor housing | ||||
| 42 | 343394610 | 16.25 | 19.66 | |
| Connector screw | ||||
| 43 | 341515330 | 3.02 | 3.65 | |
| Stop gauge | ||||
| 44 | 343394570 | 8.89 | 10.76 | |
| Complete Blocking Pin | ||||
| 48 | 316043700 | 2.28 | 2.76 | |
| Spindle stop compl. | ||||
| 54 | 316043720 | 1.56 | 1.89 | |
| Metabo-plaatje | ||||
| 56 | 338121160 | 1.56 | 1.89 | |
| Spring | ||||
| 57 | 342050850 | 5.87 | 7.10 | |
| Bolt | ||||
| 58 | 341520180 | 4.51 | 5.46 | |
| No information available, not orderable | ||||
| 59 | 343395160 | |||
| Kabelbescherming | ||||
| 60 | 344098330 | 1.56 | 1.89 | |
| Beschermplaat | ||||
| 63 | 339160780 | 4.51 | 5.46 | |
| Cable m.CEE-connector | ||||
| 65 | 344497490 | 21.64 | 26.18 | |
| No information available, not orderable | ||||
| 66 | 399999990 | |||
| Spindle | ||||
| 69 | 341147840 | 7.22 | 8.74 | |
| Clamping Jaws | ||||
| 70 | 339133390 | 8.89 | 10.76 | |
| Threaded spindle holder | ||||
| 71 | 343394580 | 4.51 | 5.46 | |
| Steel sheet | ||||
| 72 | 339133420 | 1.56 | 1.89 | |
| Dieptegeleider | ||||
| 74 | 341515360 | 4.51 | 5.46 | |
| Rubber voet | ||||
| 75 | 344098280 | 1.56 | 1.89 | |
| Ground table | ||||
| 76 | 339133410 | 43.15 | 52.21 | |
| Kentool Spanner | ||||
| 77 | 344163520 | 2.28 | 2.76 | |
| Dummy plug | ||||
| 78 | 343394890 | 1.56 | 1.89 | |
| Klemstrip 2 polig | ||||
| 79 | 343050250 | 1.56 | 1.89 | |
| Aansluitdraad | ||||
| 80 | 344497580 | 1.56 | 1.89 | |
| Aansluitdraad | ||||
| 81 | 344497600 | 1.56 | 1.89 | |
| Complete Spindle | ||||
| 82 | 316043710 | 32.27 | 39.05 | |
| Rubberen stop | ||||
| 83 | 344098550 | 1.68 | 2.03 | |
| Gasket | ||||
| 84 | 143195240 | 1.56 | 1.89 | |
| Grease Tube | ||||
| 880 | 344131180 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 1001 | 338504520 | |||
