Here you will find all available parts and drawings of the 'Metabo 0230025061-10 ( CLASSIC250 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

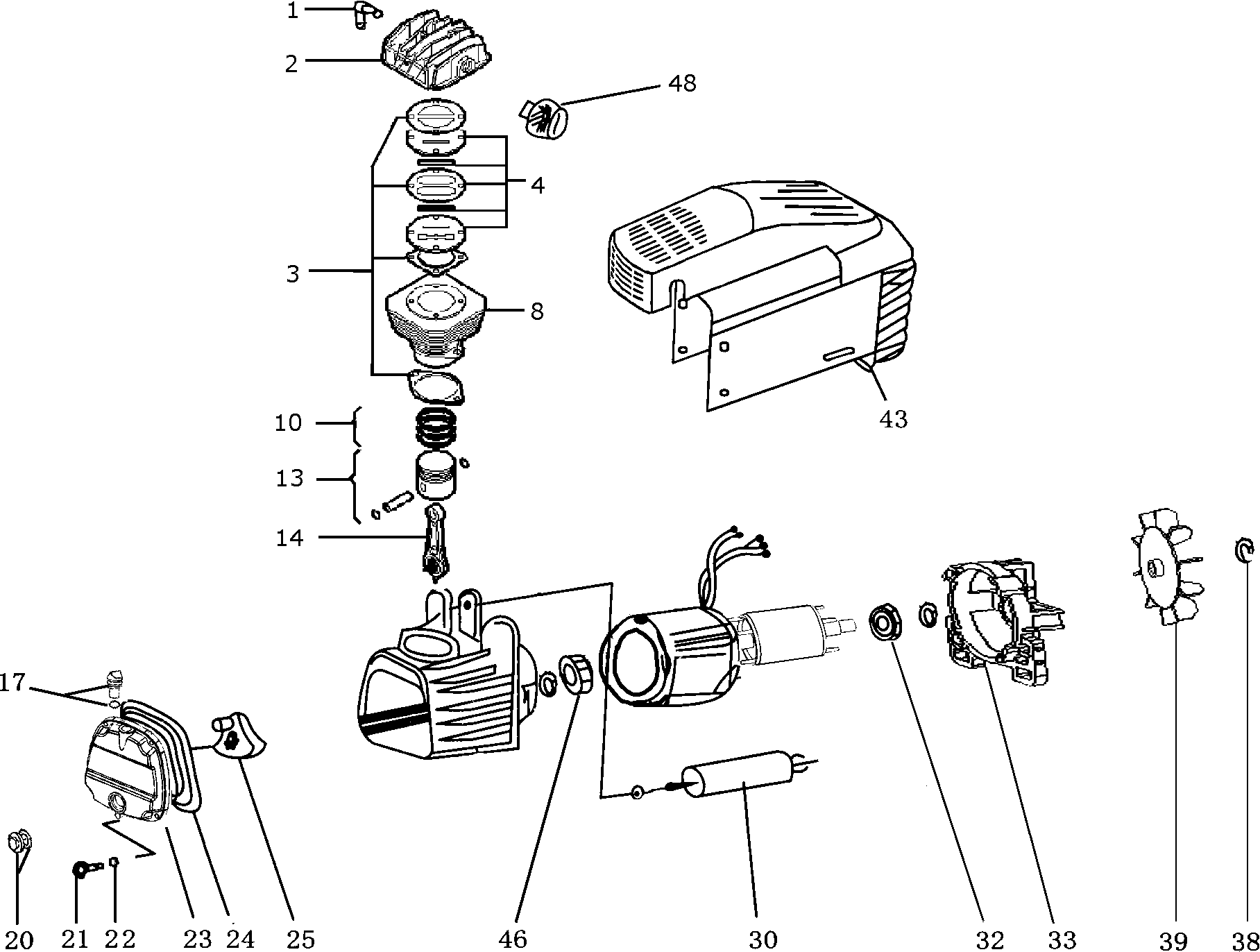

Technical drawing of model Metabo 0230025061-10 ( CLASSIC250 )
Spare parts list of model Metabo 0230025061-10 ( CLASSIC250 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Angle screw connection 3/8"X10 MM ET | ||||
| 1 | 341721910 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 2 | 1313704234 | |||
| No longer available, no replacement | ||||
| 3 | 1319704376 | |||
| No longer available, no replacement | ||||
| 4 | 1319704244 | |||
| No information available, not orderable | ||||
| 8 | 1319704325 | |||
| No information available, not orderable | ||||
| 10 | 1319704368 | |||
| No information available, not orderable | ||||
| 13 | 1319704350 | |||
| No information available, not orderable | ||||
| 14 | 1319704341 | |||
| No information available, not orderable | ||||
| 17 | 1313704331 | |||
| No information available, not orderable | ||||
| 20 | 1319704384 | |||
| No information available, not orderable | ||||
| 21 | 6143704392 | |||
| O-Ring 5,23X2,62 70 SHORE | ||||
| 22 | 7632149640 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 23 | 1310704322 | |||
| No information available, not orderable | ||||
| 24 | 1319704317 | |||
| No information available, not orderable | ||||
| 25 | 1319704406 | |||
| No information available, not orderable | ||||
| 30 | 8050704263 | |||
| BALL BEARING | ||||
| 32 | 7100136915 | 7.22 | 8.74 | |
| No longer available, no replacement | ||||
| 33 | 1310704284 | |||
| RETAINING RING | ||||
| 38 | 141180060 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 39 | 1319704295 | |||
| No information available, not orderable | ||||
| 43 | 1311704270 | |||
| BALL BEARING 20X47X14 6204-2RS1 | ||||
| 46 | 7100016820 | 11.74 | 14.21 | |
| LUCHTFILTER | ||||
| 48 | 341164790 | 5.20 | 6.29 | |
| No information available, not orderable | ||||
| 51 | 1319704490 | |||
| No information available, not orderable | ||||
| 58 | 1001704440 | |||
| No information available, not orderable | ||||
| 59 | 7830142449 | |||
| No information available, not orderable | ||||
| 60 | 7057704459 | |||
| No longer available, no replacement | ||||
| 61 | 1319704430 | |||
| No information available, not orderable | ||||
| 62 | 7823088501 | |||
| No information available, not orderable | ||||
| 63 | 7833662605 | |||
| No longer available, no replacement | ||||
| 64 | 8101704506 | |||
| Reduction Valve RP-192 1/4"I-A ET | ||||
| 65 | 341164670 | 10.38 | 12.56 | |
| No information available, not orderable | ||||
| 66 | 7823088510 | |||
| Snelkoppeling Euro 1/4" AG | ||||
| 67 | 7802009083 | 6.64 | 8.03 | |
| No information available, not orderable | ||||
| 68 | 7008704303 | |||
| No information available, not orderable | ||||
| 69 | 7831704424 | |||
| No information available, not orderable | ||||
| 70 | 1319704414 | |||
| Relief valve after 2.2 bar / 1/4"A ET | ||||
| 71 | 1319651361 | 21.64 | 26.18 | |
