Here you will find all available parts and drawings of the 'Metabo 00349000 (CC18LTXBL)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

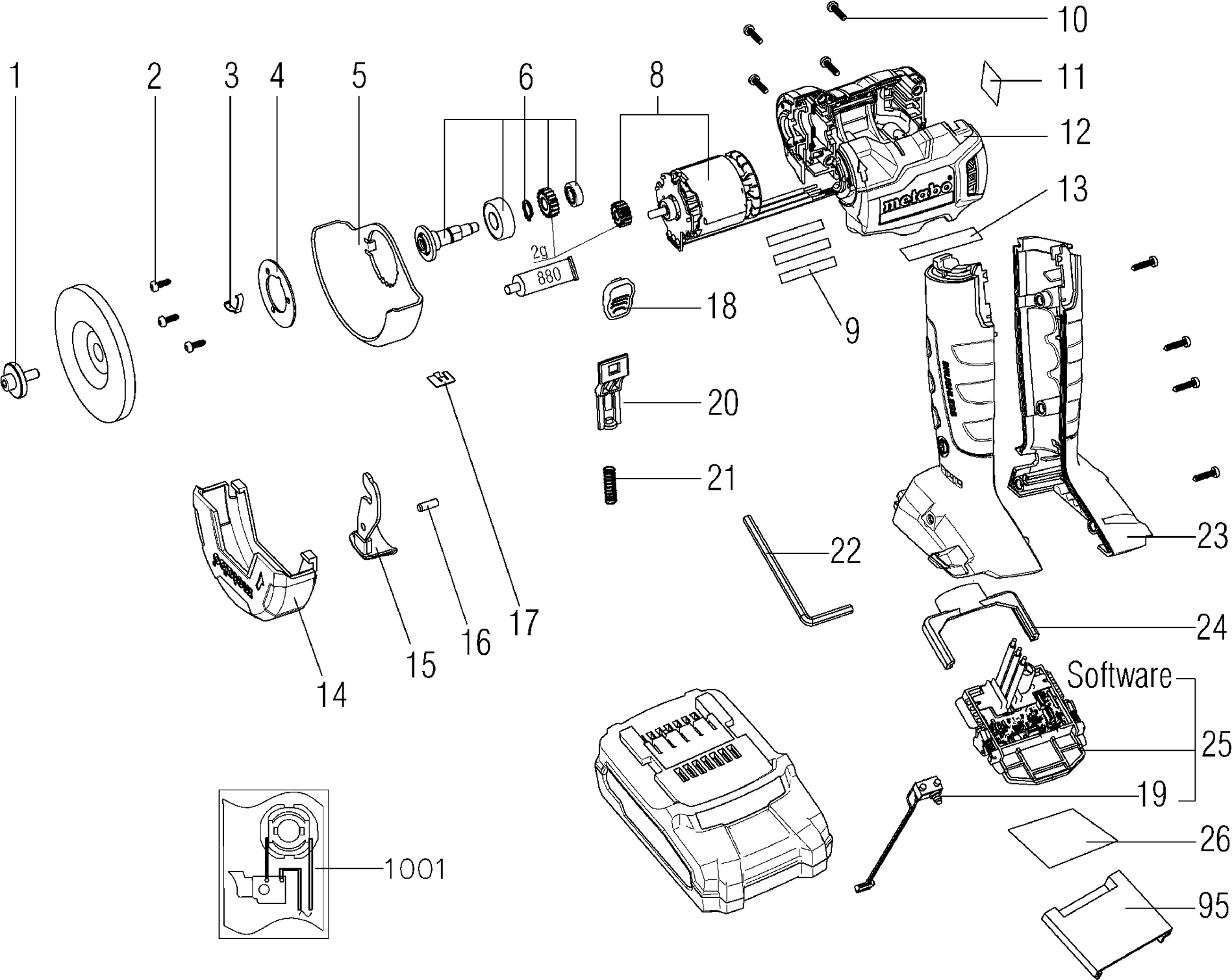

Technical drawing of model Metabo 00349000 (CC18LTXBL)
Spare parts list of model Metabo 00349000 (CC18LTXBL)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hexagonal nut | ||||
| 1 | 341109140 | 2.28 | 2.76 | |
| Self-tapp. fill. h. screw | ||||
| 2 | 141119900 | 1.56 | 1.89 | |
| Leaf Spring | ||||
| 3 | 342010990 | 1.56 | 1.89 | |
| Stop Plate | ||||
| 4 | 339149330 | 1.56 | 1.89 | |
| Protection hood, D76mm | ||||
| 5 | 339209590 | 4.51 | 5.46 | |
| Drive shaft cpl. | ||||
| 6 | 316098650 | 21.64 | 26.18 | |
| Motor complete | ||||
| 8 | 316098640 | 67.33 | 81.47 | |
| Heat shrink tubing | ||||
| 9 | 341213440 | 1.56 | 1.89 | |
| Screw, ST2,9x13 | ||||
| 10 | 341704710 | 1.56 | 1.89 | |
| Identification plate, CAS | ||||
| 11 | 338129960 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 12 | 343385030 | |||
| Type plate HK 85 EB 230V | ||||
| 13 | 338131210 | 1.68 | 2.03 | |
| Separation protection hood, D76mm | ||||
| 14 | 339209580 | 3.71 | 4.49 | |
| Blocking pin | ||||
| 15 | 339149320 | 1.68 | 2.03 | |
| Cilinderstift | ||||
| 16 | 141163980 | 1.56 | 1.89 | |
| Leaf Spring | ||||
| 17 | 342010980 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 18 | 343412110 | 1.56 | 1.89 | |
| Micro-switch | ||||
| 19 | 343087290 | 10.38 | 12.56 | |
| Shifter Rod | ||||
| 20 | 343449090 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 21 | 342002440 | 1.56 | 1.89 | |
| Inbussleutel | ||||
| 22 | 344161530 | 1.68 | 2.03 | |
| Handle TSC 55 | ||||
| 23 | 343449900 | 11.74 | 14.21 | |
| Vastzetschuif | ||||
| 24 | 343447510 | 1.56 | 1.89 | |
| Electrical unit, 18V | ||||
| 25 | 343087750 | 121.19 | 146.64 | |
| Type plate HK 85 EB 230V | ||||
| 26 | 338072230 | 1.68 | 2.03 | |
| Locking device compl. | ||||
| 66 | 316066720 | 3.02 | 3.65 | |
| Compression spring | ||||
| 67 | 342004180 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 95 | 399999990 | |||
| Special grease | ||||
| 880 | 145011110 | 53.86 | 65.17 | |
| No information available, not orderable | ||||
| 1001 | 338510540 | |||
