Here you will find all available parts and drawings of the 'Metabo 02114000 ( BS18LTX-X3QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

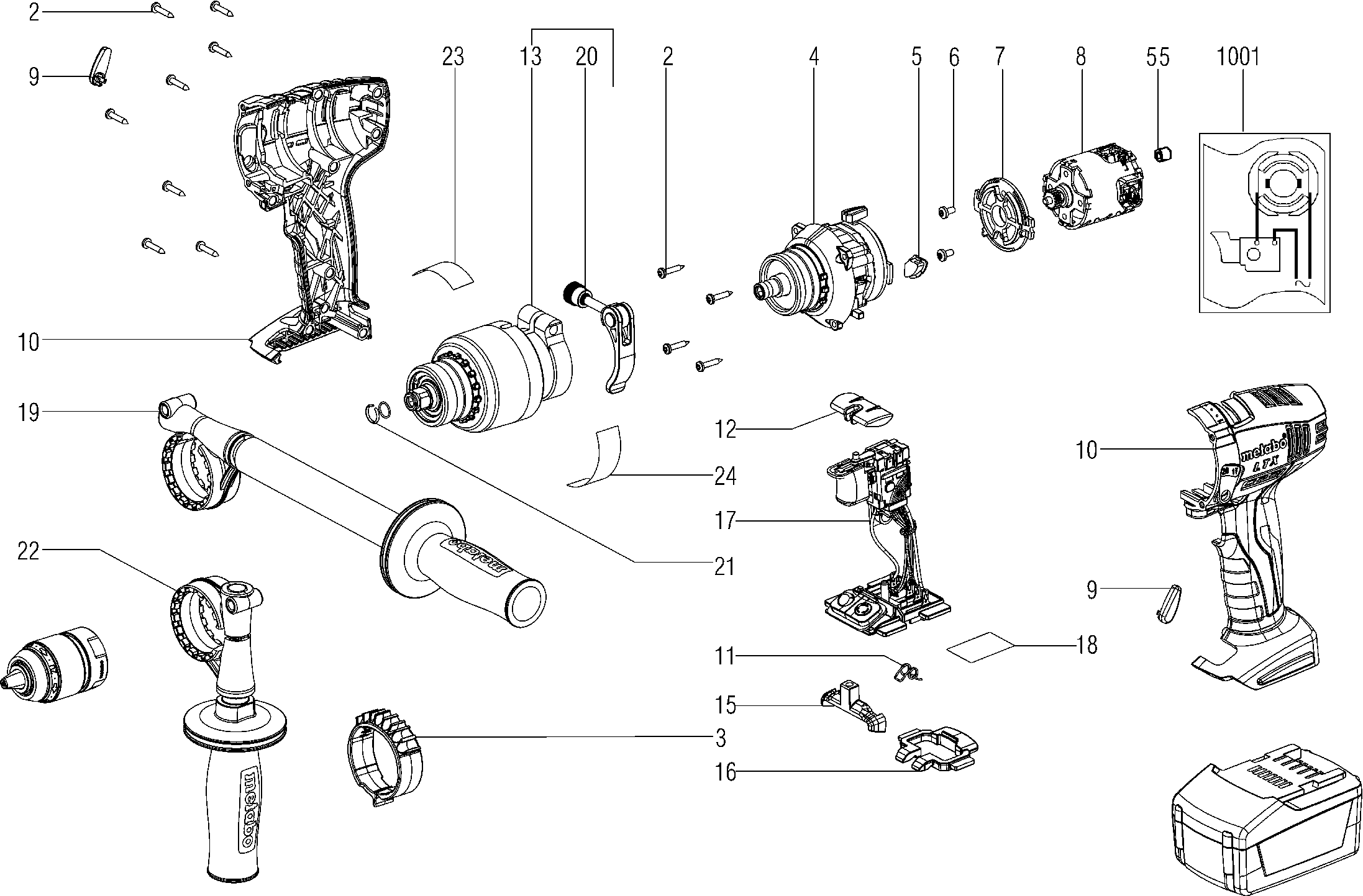

Technical drawing of model Metabo 02114000 ( BS18LTX-X3QUICK )

Spare parts list of model Metabo 02114000 ( BS18LTX-X3QUICK )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Self-tap. fill. h. screw
2 141113180 1.55 1.88
Screwdriver-bit depot
3 343396590 1.67 2.02
Aandrijving compl.
4 316049780 87.60 106.00
Electric Unit, 6-20V
5 343081780 21.64 26.18
Fillister head screw
6 141119850 1.55 1.88
Motorflens
7 343393960 1.55 1.88
Gelijkstroommotor,18 V
8 317003690 113.82 137.72
Schakel-element
9 343394150 1.55 1.88
Huis m.deksel
10 343394810 32.27 39.05
Thrust Spring
11 342021670 1.55 1.88
Schakelschuif
12 343394800 1.55 1.88
Attachment for 100Nm LTX
13 316052150 121.19 146.64
Flat spring
14 342050860 1.55 1.88
Pressure plate
15 343394770 1.55 1.88
Schakelschuif
16 343394790 1.55 1.88
Electronic switch 18 V Pulse
17 343408680 87.60 106.00
No information available, not orderable
18 338056710
No information available, not orderable
19 314001330
Spanelement
20 316049900 4.51 5.46
C/O-ring Set (10x)
21 316049910 3.02 3.65
Side support handle compl.
22 314001030 12.23 14.80
Aanduidingsplaatje
23 338123790 1.55 1.88
Metabo Shield Patent Pending
24 338123360 1.55 1.88
Ferrite sleeve OD9.5*ID4.75*9.5
55 143160070 2.28 2.76
No information available, not orderable
1001 338504870
