Here you will find all available parts and drawings of the 'Metabo 02109420 ( BS18LTXQUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

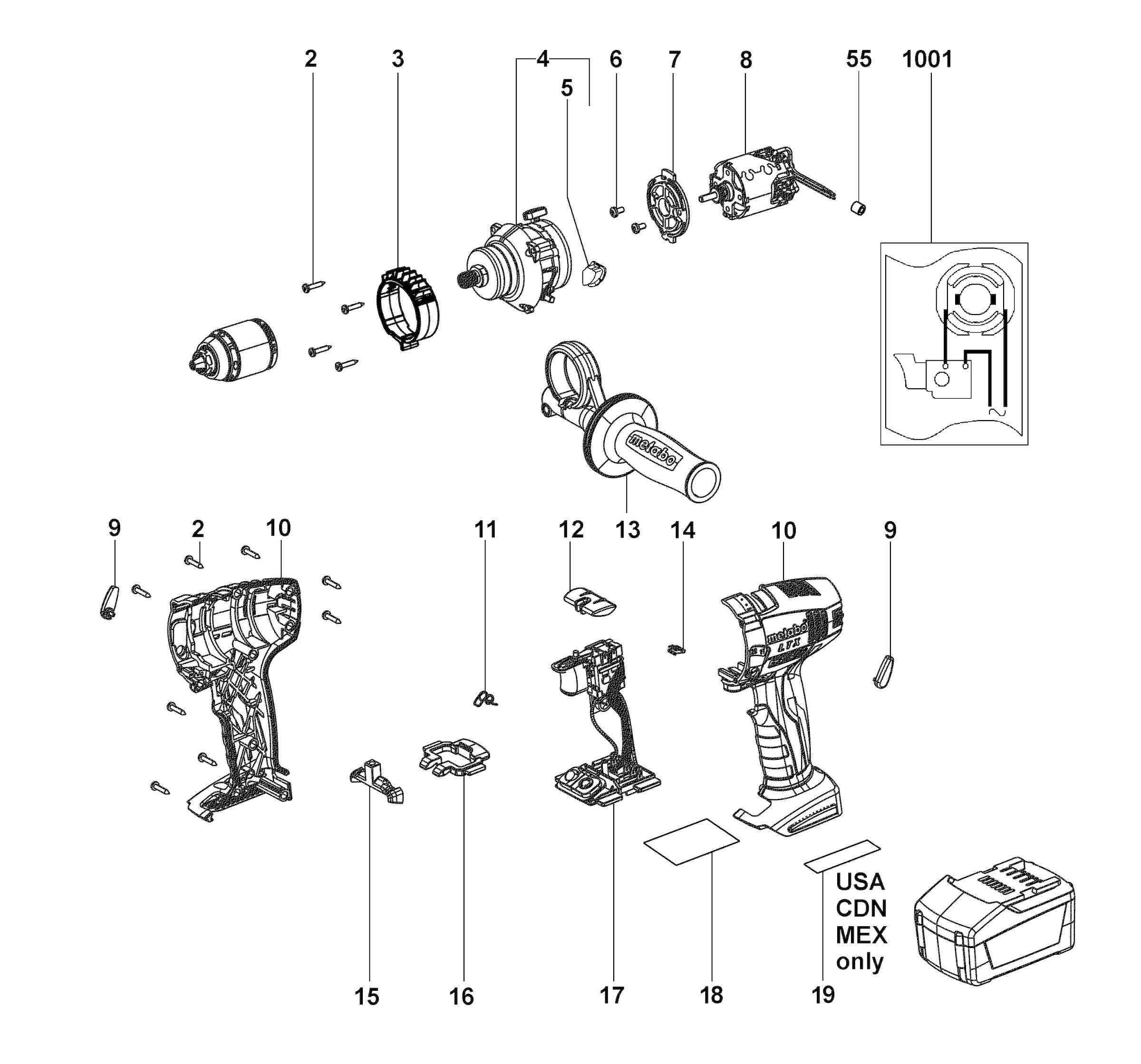

Technical drawing of model Metabo 02109420 ( BS18LTXQUICK )
Spare parts list of model Metabo 02109420 ( BS18LTXQUICK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tap. fill. h. screw | ||||
| 2 | 141113180 | 1.55 | 1.88 | |
| Screwdriver-bit depot | ||||
| 3 | 343396590 | 1.67 | 2.02 | |
| Aandrijving compl. | ||||
| 4 | 316049780 | 87.60 | 106.00 | |
| Electric Unit, 6-20V | ||||
| 5 | 343081780 | 21.64 | 26.18 | |
| Fillister head screw | ||||
| 6 | 141119850 | 1.55 | 1.88 | |
| Motorflens | ||||
| 7 | 343393960 | 1.55 | 1.88 | |
| Gelijkstroommotor,18 V | ||||
| 8 | 317003690 | 113.82 | 137.72 | |
| Schakel-element | ||||
| 9 | 343394150 | 1.55 | 1.88 | |
| Huis m.deksel | ||||
| 10 | 343394810 | 32.27 | 39.05 | |
| Thrust Spring | ||||
| 11 | 342021670 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 12 | 343394800 | 1.55 | 1.88 | |
| Handgreep compl. | ||||
| 13 | 314001140 | 12.23 | 14.80 | |
| Flat spring | ||||
| 14 | 342050860 | 1.55 | 1.88 | |
| Pressure plate | ||||
| 15 | 343394770 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 16 | 343394790 | 1.55 | 1.88 | |
| Electronic switch 18 V Pulse | ||||
| 17 | 343408680 | 87.60 | 106.00 | |
| Typeplaatje | ||||
| 18 | 338054370 | 1.55 | 1.88 | |
| Serial Indicator Plate 40x14 | ||||
| 19 | 338121750 | 1.55 | 1.88 | |
| Ferrite sleeve OD9.5*ID4.75*9.5 | ||||
| 55 | 143160070 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 1001 | 338504870 | |||
