Here you will find all available parts and drawings of the 'Metabo 02354000 (BS18LTX-3BLI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

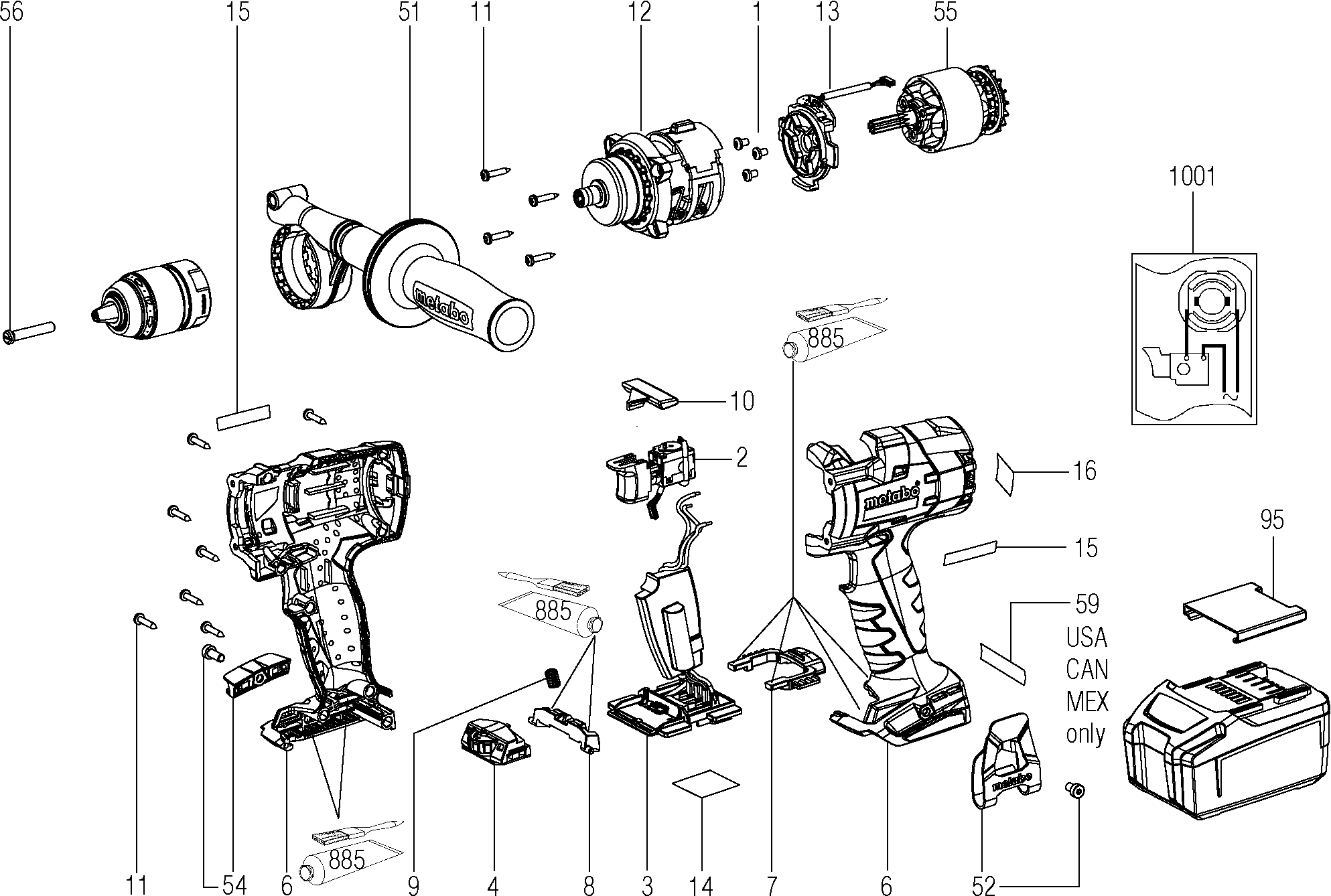

Technical drawing of model Metabo 02354000 (BS18LTX-3BLI)
Spare parts list of model Metabo 02354000 (BS18LTX-3BLI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Fillister head screw | ||||
| 1 | 141122220 | 1.79 | 2.17 | |
| POTENTIOMETER SWITCH | ||||
| 2 | 316081550 | 15.31 | 18.53 | |
| Elektro.unit compl. | ||||
| 3 | 343085740 | 126.62 | 153.21 | |
| Stelwiel compl. | ||||
| 4 | 343083610 | 21.22 | 25.68 | |
| Huis m.deksel | ||||
| 6 | 343438360 | 29.97 | 36.26 | |
| Vastzetschuif | ||||
| 7 | 343438580 | 1.79 | 2.17 | |
| Vergrendelstuk | ||||
| 8 | 343430520 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 9 | 342004070 | 1.67 | 2.02 | |
| Schakelschuif ,R/L | ||||
| 10 | 343433260 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 11 | 141113180 | 1.67 | 2.02 | |
| Aandrijving compl.,BS | ||||
| 12 | 316062160 | 111.19 | 134.54 | |
| Flange with electronics | ||||
| 13 | 316065130 | 18.28 | 22.12 | |
| Typeplaatje | ||||
| 14 | 338066630 | 1.67 | 2.02 | |
| Typeplaatje,SB 18 LTX BL I | ||||
| 15 | 338127610 | 1.67 | 2.02 | |
| Identification plate | ||||
| 16 | 338129940 | 1.79 | 2.17 | |
| Handgreep compl. | ||||
| 51 | 314001020 | 13.93 | 16.86 | |
| Hook | ||||
| 52 | 339137270 | 2.43 | 2.94 | |
| Screwdriver-bit depot | ||||
| 54 | 343448690 | 2.43 | 2.94 | |
| Motor complete | ||||
| 55 | 316063770 | 161.95 | 195.96 | |
| Cilinderkopschroef | ||||
| 56 | 341701940 | 1.79 | 2.17 | |
| Cover cap | ||||
| 95 | 343439680 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 885 | 136010950 | |||
| No information available, not orderable | ||||
| 1001 | 338506100 | |||
