Here you will find all available parts and drawings of the 'Metabo 01750000 ( BS175 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

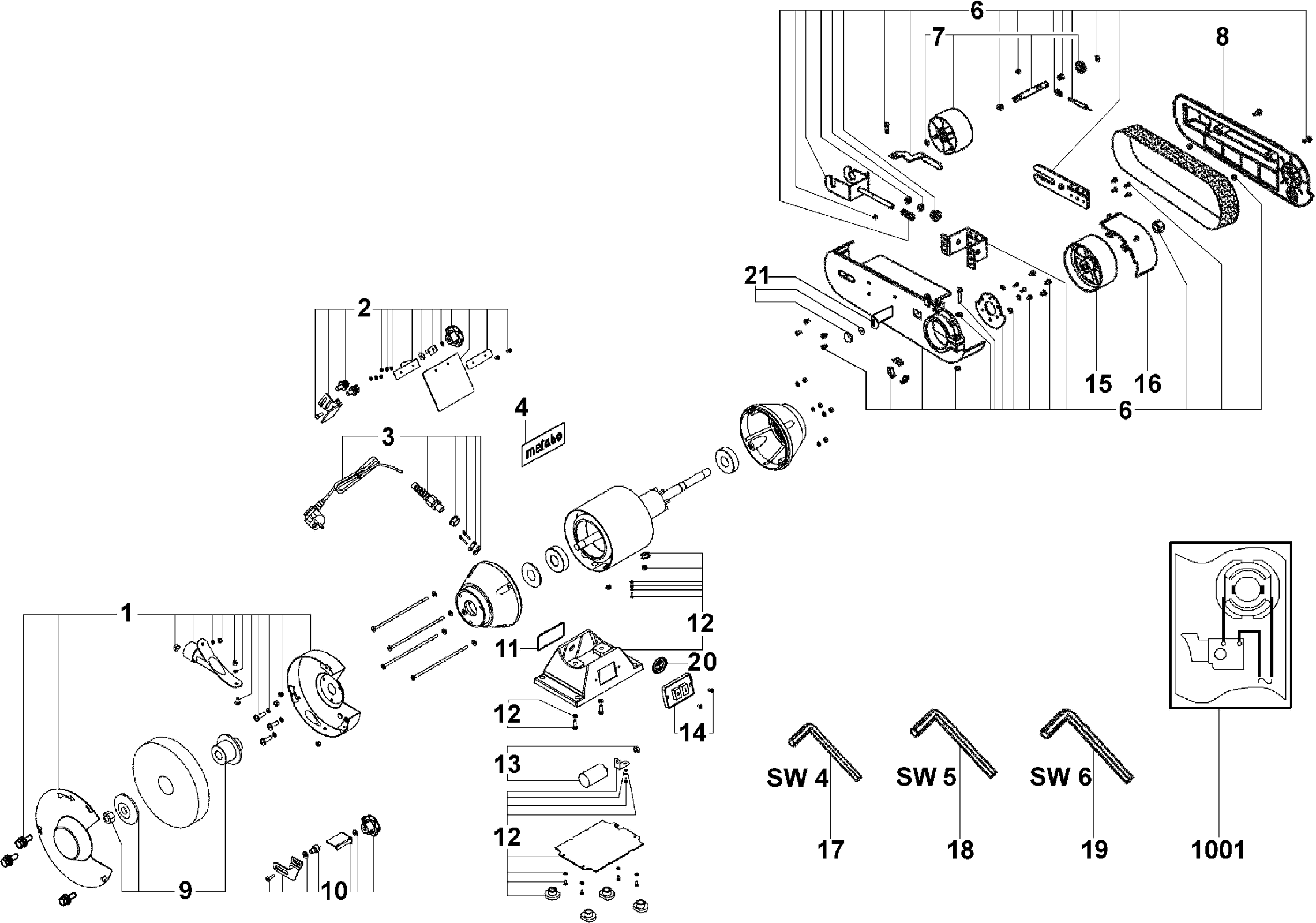

Technical drawing of model Metabo 01750000 ( BS175 )
Spare parts list of model Metabo 01750000 ( BS175 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Beschermkap compl.links | ||||
| 1 | 316046490 | 48.48 | 58.66 | |
| Oogbescherming compl.links | ||||
| 2 | 316046530 | 10.38 | 12.56 | |
| Cable with plug 230 V | ||||
| 3 | 344498200 | 12.23 | 14.80 | |
| Metabo-plaatje | ||||
| 4 | 338122300 | 1.55 | 1.88 | |
| Grinding Facility | ||||
| 6 | 316046760 | 213.88 | 258.79 | |
| Complete Steering wheel | ||||
| 7 | 316046180 | 26.95 | 32.61 | |
| Cover | ||||
| 8 | 343398460 | 12.23 | 14.80 | |
| Spanflens compl.linkerzijde | ||||
| 9 | 316046500 | 18.80 | 22.75 | |
| Steunhoek compl.links | ||||
| 10 | 316046550 | 4.51 | 5.46 | |
| Typeplaatje | ||||
| 11 | 338053620 | 1.55 | 1.88 | |
| Voet compl. | ||||
| 12 | 316046560 | 53.86 | 65.17 | |
| Condensator compl. | ||||
| 13 | 343254610 | 7.22 | 8.74 | |
| Schakelaar compl. | ||||
| 14 | 343409350 | 26.95 | 32.61 | |
| Aandrijfrol | ||||
| 15 | 341201050 | 24.23 | 29.32 | |
| Lower Cover | ||||
| 16 | 343398450 | 3.02 | 3.65 | |
| Inbussleutel | ||||
| 17 | 344161530 | 1.67 | 2.02 | |
| Angle screwdriver | ||||
| 18 | 344161520 | 1.67 | 2.02 | |
| Inbussleutel | ||||
| 19 | 344161510 | 1.67 | 2.02 | |
| Safety Glasses Identification Plate | ||||
| 20 | 338122630 | 1.55 | 1.88 | |
| Geleider compl. | ||||
| 21 | 316052790 | 3.02 | 3.65 | |
| RUBBER CABLE WITH PLUG | ||||
| 43 | 1009621039 | 43.15 | 52.21 | |
| No information available, not orderable | ||||
| 1001 | 338505170 | |||
