Here you will find all available parts and drawings of the 'Metabo 0100400000-11 (BKS400PLUS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

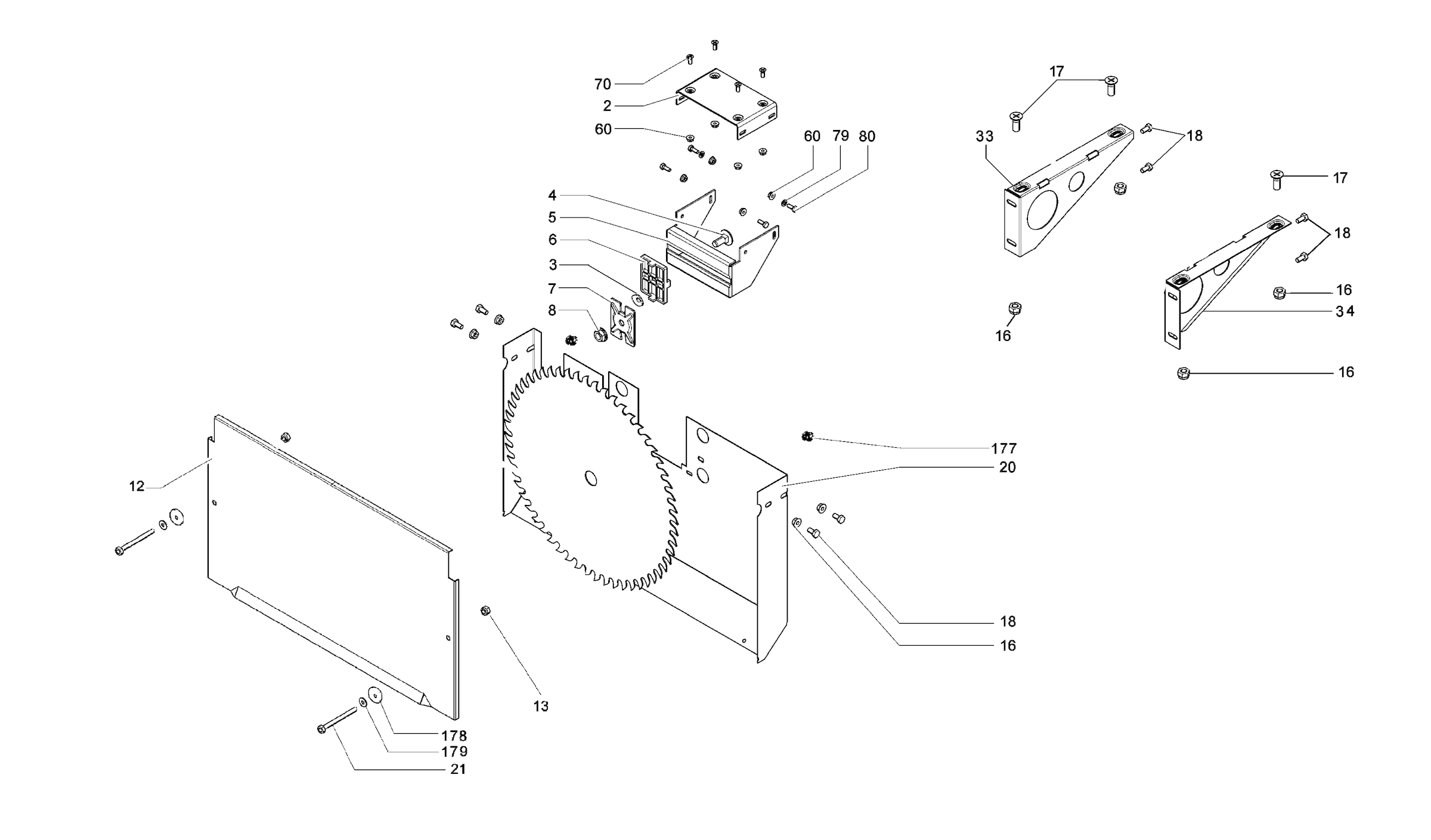

Technical drawing of model Metabo 0100400000-11 (BKS400PLUS)
Spare parts list of model Metabo 0100400000-11 (BKS400PLUS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SUPPORT BL 2.5X195X100 | ||||
| 2 | 1382206289 | 3.71 | 4.49 | |
| DISC SPRING | ||||
| 3 | 7053063343 | 1.55 | 1.88 | |
| Lock bolt with square insert M 12X40 VER | ||||
| 4 | 6110149253 | 1.68 | 2.03 | |
| TABLETOP BL 2.50X736X1071 | ||||
| 5 | 1382731987 | 18.80 | 22.75 | |
| Spac. wedge hol CS 70 ET-BG | ||||
| 6 | 2380075353 | 10.38 | 12.56 | |
| PRESSURE PLATE BL 2.99X80X60 | ||||
| 7 | 1382213749 | 1.68 | 2.03 | |
| Nut | ||||
| 8 | 6209002432 | 4.51 | 5.46 | |
| CHIP ENCLOSURE LID BL 1.5X684X391 | ||||
| 12 | 1382206327 | 60.59 | 73.31 | |
| Self-locking hexagon nut | ||||
| 13 | 6202002305 | 1.56 | 1.89 | |
| Flange nut | ||||
| 16 | 6209110995 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 17 | 6131009460 | |||
| Hexagonal screw | ||||
| 18 | 6103001178 | 1.56 | 1.89 | |
| CHIP ENCLOSURE BL 1.5X812X410 | ||||
| 20 | 1382206319 | 37.65 | 45.56 | |
| Hex screw M 8X90 verz. | ||||
| 21 | 6101022046 | 1.68 | 2.03 | |
| FUSE LEVER BL 2.50X30X100 | ||||
| 24 | 1392205418 | 3.71 | 4.49 | |
| Washer | ||||
| 27 | 141150050 | 1.56 | 1.89 | |
| SUPPORT PLATE BL 2X321X168 FRONT | ||||
| 33 | 1382206300 | 12.23 | 14.80 | |
| SUPPORT PLATE BL 2X321X168 REAR | ||||
| 34 | 1382206335 | 12.23 | 14.80 | |
| Zeskantschroef | ||||
| 41 | 141113330 | 1.68 | 2.03 | |
| Washer | ||||
| 52 | 141150010 | 1.56 | 1.89 | |
| Hexagonal screw M 10X20 curved. | ||||
| 59 | 6103005270 | 1.56 | 1.89 | |
| Flange nut | ||||
| 60 | 6209114230 | 1.56 | 1.89 | |
| COUNTERSUNK SCREW M.CROSS M 6X16 VE | ||||
| 70 | 6131047582 | 1.56 | 1.89 | |
| Self-tapp. counters. screw | ||||
| 71 | 141123420 | 1.56 | 1.89 | |
| TABLETOP BL 2.50X736X1071 | ||||
| 72 | 1382731405 | 161.61 | 195.55 | |
| Self-locking hexagon nut | ||||
| 73 | 6202002305 | 1.56 | 1.89 | |
| Compression Spring | ||||
| 74 | 7051207240 | 1.55 | 1.88 | |
| LIFT ARC 2.99X90X112 | ||||
| 75 | 1492103230 | 3.71 | 4.49 | |
| Table Insert Profile 549,5 ±0,3 mm | ||||
| 76 | 1393205551 | 21.64 | 26.18 | |
| CROSS MEMBER BL 2.50X86X656 | ||||
| 77 | 1392205035 | 11.74 | 14.21 | |
| Washer | ||||
| 79 | 141150130 | 1.56 | 1.89 | |
| Zeskantschroef | ||||
| 80 | 141113290 | 1.56 | 1.89 | |
| Fixing clamp | ||||
| 82 | 8242051328 | 2.28 | 2.76 | |
| EXTENSION PLATE BL 2.00X572X832 TKHS315M | ||||
| 90 | 1382693309 | 94.12 | 113.89 | |
| Zeskantschroef | ||||
| 91 | 141114860 | 1.68 | 2.03 | |
| ANGLE PLATE BL 2.50X30X116 | ||||
| 92 | 1382693856 | 12.23 | 14.80 | |
| Moer zeskant | ||||
| 93 | 141132030 | 1.56 | 1.89 | |
| DIAGONAL BRACE BL 2,5X30X591 | ||||
| 94 | 1382641074 | 8.89 | 10.76 | |
| Leg BKH/BKS | ||||
| 95 | 1010730674 | 43.15 | 52.21 | |
| STUT BL 1,5X118X703 | ||||
| 96 | 1382641031 | 16.25 | 19.66 | |
| DIAGONAL BRACE BL 2,5X30X830 | ||||
| 97 | 1382641058 | 18.80 | 22.75 | |
| Screw 6KT 17x30 M 8 | ||||
| 98 | 1395205516 | 3.02 | 3.65 | |
| Cylinder head screw | ||||
| 99 | 6127059207 | 1.56 | 1.89 | |
| SUPPORT BL 1.00X70X885 TVL-BKH/BKS | ||||
| 100 | 1382706559 | 16.25 | 19.66 | |
| TABLETOP cpl | ||||
| 110 | 1382731340 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 111 | 6103030259 | |||
| Washer | ||||
| 112 | 141151340 | 1.56 | 1.89 | |
| Hexagonal screw M 6X35 curved. | ||||
| 113 | 6103004916 | 1.56 | 1.89 | |
| PASSING SPRING D=1,5 X 180 | ||||
| 114 | 7051731284 | 8.89 | 10.76 | |
| BEARING BLOCK COMPLETE BKH/BKS-Plus | ||||
| 115 | 1010731972 | 16.25 | 19.66 | |
| GUIDE COMPLETE BKH/BKS-Plus | ||||
| 116 | 1010731964 | 74.13 | 89.70 | |
| PASSING SPRING D=1,5 X 180 | ||||
| 117 | 7051731292 | 8.89 | 10.76 | |
| SLEEVE RD 18X5 | ||||
| 118 | 1485731306 | 4.51 | 5.46 | |
| SLEEVE RD 18X5 | ||||
| 119 | 1381731312 | 1.56 | 1.89 | |
| Protection Cap, complete BKH/BKS Plus | ||||
| 120 | 1010731956 | 161.61 | 195.55 | |
| SPLITTER BL 3,00X214X304 BKH/BKS400 | ||||
| 121 | 1482731367 | 148.53 | 179.72 | |
| Hexagon safety nut | ||||
| 122 | 141130650 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 123 | 2391202772 | |||
| COUNTERSUNK SCREW M.SLOT M 6X20 VER | ||||
| 124 | 6130019585 | 1.56 | 1.89 | |
| Zeskante moer | ||||
| 125 | 141130100 | 1.56 | 1.89 | |
| GUIDE 140x30x53 | ||||
| 126 | 1381730669 | 74.13 | 89.70 | |
| Cilinderkopschroef | ||||
| 127 | 141113940 | 1.56 | 1.89 | |
| Parallel stop BKH/BKS-Plus | ||||
| 130 | 1010731743 | 187.73 | 227.15 | |
| Slotted bolt with square insert M 6X40 VERZ | ||||
| 131 | 6110000616 | 1.56 | 1.89 | |
| RUNNER GUIDE PLATE | ||||
| 132 | 1392201587 | 1.56 | 1.89 | |
| SLOT BOLT 60X25 BLACK | ||||
| 133 | 1391019971 | 1.68 | 2.03 | |
| Parallel stop BKH/BKS | ||||
| 134 | 1010731450 | 67.33 | 81.47 | |
| KNOB | ||||
| 135 | 7005658068 | 2.28 | 2.76 | |
| FRONT PROFILE | ||||
| 136 | 1383730720 | 53.86 | 65.17 | |
| SPACING SLEEVE RD 15/6X12 | ||||
| 137 | 6442100576 | 2.28 | 2.76 | |
| CABLE CLIP | ||||
| 138 | 7052078118 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 139 | 141122870 | |||
| BOLT WITH HEAD | ||||
| 140 | 6632111175 | 2.28 | 2.76 | |
| CHIPBOARD ,BL 1X26X91.5 | ||||
| 141 | 1392205620 | 1.68 | 2.03 | |
| STARLOCK | ||||
| 142 | 7016050711 | 1.55 | 1.88 | |
| CLAMP CENTER | ||||
| 143 | 1380731386 | 7.22 | 8.74 | |
| Handle | ||||
| 144 | 1381731843 | 11.74 | 14.21 | |
| SLOT BOLT WITH SQUARE INSERT M 8X25 VERZ | ||||
| 145 | 6110000640 | 1.56 | 1.89 | |
| Place screw M.crosshead | ||||
| 146 | 6172015687 | 1.56 | 1.89 | |
| END PIECE GUIDE. BL 2X26X35 | ||||
| 147 | 1492091649 | 5.87 | 7.10 | |
| GUIDE PROFILE 543.5 MM | ||||
| 148 | 1383731590 | 37.65 | 45.56 | |
| Holder BL 2.99x79x207 | ||||
| 150 | 1482730767 | 18.80 | 22.75 | |
| FLANGE PLUG RD 25 1-3 | ||||
| 151 | 1381730715 | 1.56 | 1.89 | |
| Countersunk screw | ||||
| 152 | 6172028215 | 1.56 | 1.89 | |
| Angle Gauge | ||||
| 153 | 1110205593 | 11.74 | 14.21 | |
| Countersunk screw | ||||
| 154 | 6172091014 | 1.56 | 1.89 | |
| Vernier Scale 1.00 | ||||
| 155 | 1110205607 | 18.80 | 22.75 | |
| HOLDER VERNIER SCALE | ||||
| 156 | 2391205615 | 2.28 | 2.76 | |
| Hexagonal flat nut | ||||
| 157 | 6205029131 | 1.56 | 1.89 | |
| Adjusting screw | ||||
| 158 | 6161029309 | 1.56 | 1.89 | |
| FITTING BOLT SW 19X42 | ||||
| 159 | 1395205400 | 48.48 | 58.66 | |
| Spring washer B 12 VERZ. | ||||
| 160 | 6302085941 | 1.56 | 1.89 | |
| Extension | ||||
| 161 | 2380730793 | 10.38 | 12.56 | |
| No longer available, no replacement | ||||
| 162 | 141110270 | |||
| No information available, not orderable | ||||
| 163 | 1390205739 | |||
| Zeskantschroef | ||||
| 164 | 141110290 | 1.68 | 2.03 | |
| Washer | ||||
| 165 | 141151940 | 1.56 | 1.89 | |
| ANGULAR GUIDE | ||||
| 166 | 2010200922 | 43.15 | 52.21 | |
| No longer available, no replacement | ||||
| 167 | 2391205470 | |||
| SQUARE BOLT WITH SQUARE INSERT M 10X30 COAT | ||||
| 168 | 6110091603 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 169 | 1485730741 | |||
| SLIDE HANDLE GRIP RED | ||||
| 170 | 1388680470 | 37.65 | 45.56 | |
| KEY | ||||
| 171 | 1492102829 | 8.89 | 10.76 | |
| Pushrod | ||||
| 172 | 1394201630 | 7.22 | 8.74 | |
| GUIDE PIECE | ||||
| 173 | 2391205283 | 7.22 | 8.74 | |
| ANGLE STOP | ||||
| 175 | 1010014146 | 134.27 | 162.47 | |
| Clamping lever with internal thread M 10 IG 18 mm | ||||
| 176 | 7006073730 | 10.38 | 12.56 | |
| CAGE NUT M 8 SHEET STRENGTH 1,8-3,2 | ||||
| 177 | 6264139374 | 1.68 | 2.03 | |
| DISC SPRING | ||||
| 178 | 7053075104 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 179 | 6305002486 | |||
