Here you will find all available parts and drawings of the 'Metabo 0104003000-10 ( BKS400PLUS3,10WNB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

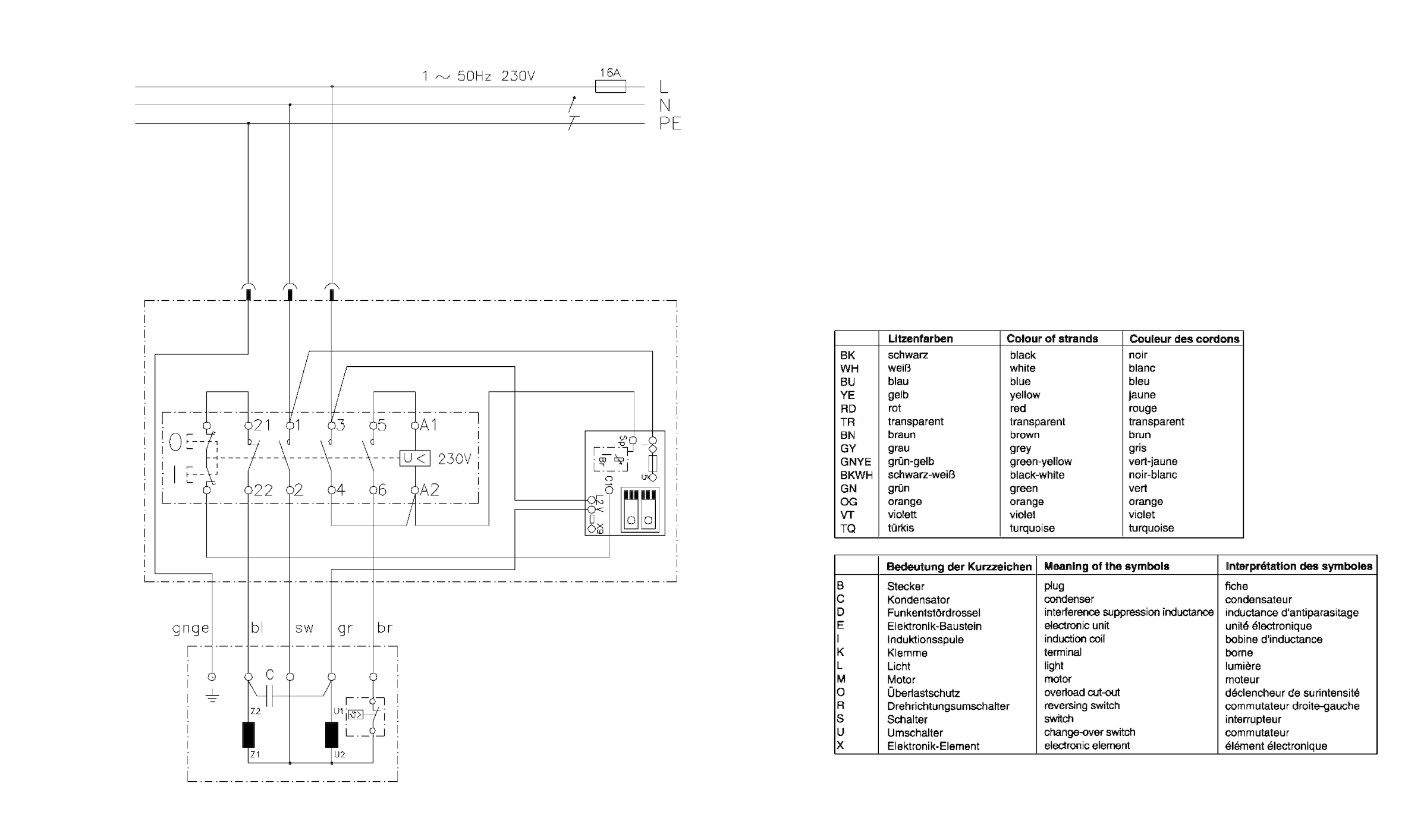

Technical drawing of model Metabo 0104003000-10 ( BKS400PLUS3,10WNB )

Spare parts list of model Metabo 0104003000-10 ( BKS400PLUS3,10WNB )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
SUPPORT BL 2.5X195X100
2 1382206289 3.71 4.49
DISC SPRING
3 7053063343 1.55 1.88
Lock bolt with square insert M 12X40 VER
4 6110149253 1.67 2.02
TABLETOP BL 2.50X736X1071
5 1382731987 18.80 22.75
Spac. wedge hol CS 70 ET-BG
6 2380075353 10.38 12.56
PRESSURE PLATE BL 2.99X80X60
7 1382213749 1.67 2.02
Nut
8 6209002432 4.51 5.46
Counterflange RD 112 SW 46x26
9 2390205247 21.64 26.18
Lock Washer B 13 VERZ.
10 6305002508 1.55 1.88
Zeskantschroef
11 141122670 4.51 5.46
CHIP ENCLOSURE LID BL 1.5X684X391
12 1382206327 60.59 73.31
Self-locking hexagon nut
13 6202002305 1.55 1.88
Motor Mount BL 2.99X134X230
14 1482206294 8.89 10.76
Wedge TSF 55
15 6721059322 1.55 1.88
Flange nut
16 6209110995 1.55 1.88
No information available, not orderable
17 6131009460
Hexagonal screw
18 6103001178 1.55 1.88
FLANGE RD 20
19 1390205208 43.15 52.21
CHIP ENCLOSURE BL 1.5X812X410
20 1382206319 37.65 45.56
Hex screw M 8X90 verz.
21 6101022046 1.67 2.02
Hexagonal Screw M 6X16 curved. Spot Coating
23 6103001356 1.55 1.88
Washer
27 141150050 1.55 1.88
SUPPORT PLATE BL 2X321X168 FRONT
33 1382206300 12.23 14.80
SUPPORT PLATE BL 2X321X168 REAR
34 1382206335 12.23 14.80
Zeskantschroef
41 141113330 1.67 2.02
Washer
52 141150010 1.55 1.88
Hexagonal screw M 10X20 curved.
59 6103005270 1.55 1.88
Flange nut
60 6209114230 1.55 1.88
COUNTERSUNK SCREW M.CROSS M 6X16 VE
70 6131047582 1.55 1.88
Self-tapp. counters. screw
71 141123420 1.55 1.88
TABLETOP BL 2.50X736X1071
72 1382731405 161.61 195.55
Self-locking hexagon nut
73 6202002305 1.55 1.88
Compression Spring
74 7051207240 1.55 1.88
LIFT ARC 2.99X90X112
75 1492103230 3.71 4.49
Table Insert Profile 549,5 ±0,3 mm
76 1393205551 21.64 26.18
CROSS MEMBER BL 2.50X86X656
77 1392205035 11.74 14.21
SWITCH PLATE BL 2.99X85X180
78 1382214133 16.25 19.66
Washer
79 141150130 1.55 1.88
Zeskantschroef
80 141113290 1.55 1.88
SSK-switch UC230V K700VB/TAZ/ST3/KA3
81 8132722820 213.88 258.79
Fixing clamp
82 8242051328 2.28 2.76
CAPACITOR 35 F+50 F CABLE
84 8050724019 148.53 179.72
No information available, not orderable
88 1010675185
EXTENSION PLATE BL 2.00X572X832 TKHS315M
90 1382693309 94.12 113.89
Zeskantschroef
91 141114860 1.67 2.02
ANGLE PLATE BL 2.50X30X116
92 1382693856 12.23 14.80
Moer zeskant
93 141132030 1.55 1.88
DIAGONAL BRACE BL 2,5X30X591
94 1382641074 8.89 10.76
Leg BKH/BKS
95 1010730674 43.15 52.21
STUT BL 1,5X118X703
96 1382641031 16.25 19.66
DIAGONAL BRACE BL 2,5X30X830
97 1382641058 18.80 22.75
Screw 6KT 17x30 M 8
98 1395205516 3.02 3.65
Cylinder head screw
99 6127059207 1.55 1.88
SUPPORT BL 1.00X70X885 TVL-BKH/BKS
100 1382706559 16.25 19.66
TABLETOP cpl
110 1382731340 37.65 45.56
No information available, not orderable
111 6103030259
Washer
112 141151340 1.55 1.88
Hexagonal screw M 6X35 curved.
113 6103004916 1.55 1.88
PASSING SPRING D=1,5 X 180
114 7051731284 8.89 10.76
BEARING BLOCK COMPLETE BKH/BKS-Plus
115 1010731972 16.25 19.66
GUIDE COMPLETE BKH/BKS-Plus
116 1010731964 74.13 89.70
PASSING SPRING D=1,5 X 180
117 7051731292 8.89 10.76
SLEEVE RD 18X5
118 1485731306 4.51 5.46
SLEEVE RD 18X5
119 1381731312 1.55 1.88
Protection Cap, complete BKH/BKS Plus
120 1010731956 161.61 195.55
SPLITTER BL 3,00X214X304 BKH/BKS400
121 1482731367 148.53 179.72
Hexagon safety nut
122 141130650 1.67 2.02
No longer available, no replacement
123 2391202772
COUNTERSUNK SCREW M.SLOT M 6X20 VER
124 6130019585 1.55 1.88
Zeskante moer
125 141130100 1.55 1.88
GUIDE 140x30x53
126 1381730669 74.13 89.70
Cilinderkopschroef
127 141113940 1.55 1.88
Parallel stop BKH/BKS-Plus
130 1010731743 187.73 227.15
Slotted bolt with square insert M 6X40 VERZ
131 6110000616 1.55 1.88
RUNNER GUIDE PLATE
132 1392201587 1.55 1.88
SLOT BOLT 60X25 BLACK
133 1391019971 1.67 2.02
Parallel stop BKH/BKS
134 1010731450 67.33 81.47
KNOB
135 7005658068 2.28 2.76
FRONT PROFILE
136 1383730720 53.86 65.17
SPACING SLEEVE RD 15/6X12
137 6442100576 2.28 2.76
CABLE CLIP
138 7052078118 2.28 2.76
No information available, not orderable
139 141122870
BOLT WITH HEAD
140 6632111175 2.28 2.76
CHIPBOARD ,BL 1X26X91.5
141 1392205620 1.67 2.02
STARLOCK
142 7016050711 1.55 1.88
CLAMP CENTER
143 1380731386 7.22 8.74
Handle
144 1381731843 11.74 14.21
SLOT BOLT WITH SQUARE INSERT M 8X25 VERZ
145 6110000640 1.55 1.88
Place screw M.crosshead
146 6172015687 1.55 1.88
END PIECE GUIDE. BL 2X26X35
147 1492091649 5.87 7.10
GUIDE PROFILE 543.5 MM
148 1383731590 37.65 45.56
Holder BL 2.99x79x207
150 1482730767 18.80 22.75
FLANGE PLUG RD 25 1-3
151 1381730715 1.55 1.88
Countersunk screw
152 6172028215 1.55 1.88
Angle Gauge
153 1110205593 11.74 14.21
Countersunk screw
154 6172091014 1.55 1.88
Vernier Scale 1.00
155 1110205607 18.80 22.75
HOLDER VERNIER SCALE
156 2391205615 2.28 2.76
Hexagonal flat nut
157 6205029131 1.55 1.88
Adjusting screw
158 6161029309 1.55 1.88
FITTING BOLT SW 19X42
159 1395205400 48.48 58.66
Spring washer B 12 VERZ.
160 6302085941 1.55 1.88
Extension
161 2380730793 10.38 12.56
No longer available, no replacement
162 141110270
No information available, not orderable
163 1390205739
Zeskantschroef
164 141110290 1.67 2.02
Washer
165 141151940 1.55 1.88
ANGULAR GUIDE
166 2010200922 43.15 52.21
No longer available, no replacement
167 2391205470
SQUARE BOLT WITH SQUARE INSERT M 10X30 COAT
168 6110091603 1.55 1.88
No longer available, no replacement
169 1485730741
SLIDE HANDLE GRIP RED
170 1388680470 37.65 45.56
KEY
171 1492102829 8.89 10.76
Pushrod
172 1394201630 7.22 8.74
GUIDE PIECE
173 2391205283 7.22 8.74
ANGLE STOP
175 1010014146 134.27 162.47
Clamping lever with internal thread M 10 IG 18 mm
176 7006073730 10.38 12.56
