Here you will find all available parts and drawings of the 'Metabo 18108001 (BHE2643)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

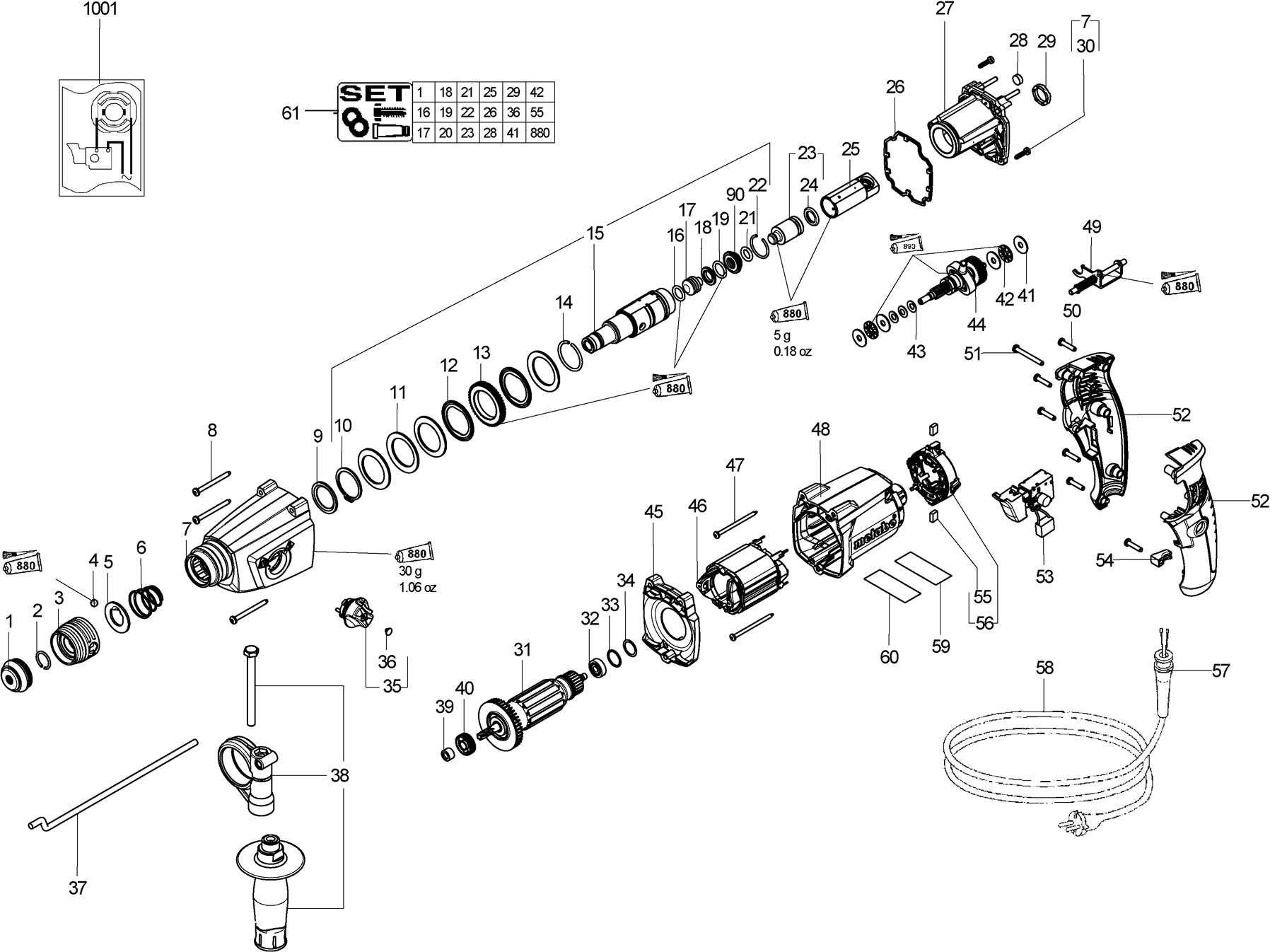

Technical drawing of model Metabo 18108001 (BHE2643)
Spare parts list of model Metabo 18108001 (BHE2643)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubberen kap | ||||
| 1 | 344099390 | 1.56 | 1.89 | |
| Circlip | ||||
| 2 | 342022340 | 1.56 | 1.89 | |
| Verstelring | ||||
| 3 | 343432920 | 4.51 | 5.46 | |
| Ball | ||||
| 4 | 143115330 | 1.56 | 1.89 | |
| Washer | ||||
| 5 | 339007650 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 6 | 342003890 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 7 | 316045660 | 37.65 | 45.56 | |
| Self-tap. fill. h. screw | ||||
| 8 | 141123610 | 1.56 | 1.89 | |
| Support Disk | ||||
| 9 | 141153750 | 1.68 | 2.03 | |
| Retaining ring | ||||
| 10 | 141180170 | 1.56 | 1.89 | |
| Schotelveer | ||||
| 11 | 342070340 | 3.02 | 3.65 | |
| Friction Disc | ||||
| 12 | 339004870 | 1.68 | 2.03 | |
| Spur gear | ||||
| 13 | 340002750 | 21.64 | 26.18 | |
| Circlip | ||||
| 14 | 141181290 | 1.56 | 1.89 | |
| Boorhuls compl. | ||||
| 15 | 316052960 | 32.27 | 39.05 | |
| O-ring | ||||
| 16 | 143194790 | 1.56 | 1.89 | |
| Dopper compl. | ||||
| 17 | 316054870 | 8.89 | 10.76 | |
| Dempingsring | ||||
| 18 | 341210600 | 2.28 | 2.76 | |
| O-ring | ||||
| 19 | 143194640 | 1.68 | 2.03 | |
| Vangerhuls compl. | ||||
| 20 | 316054880 | 16.25 | 19.66 | |
| O-ring | ||||
| 21 | 143193920 | 5.87 | 7.10 | |
| Borgveer-ring | ||||
| 22 | 141181860 | 1.56 | 1.89 | |
| Plunjer compl. | ||||
| 23 | 316048010 | 12.23 | 14.80 | |
| Profile-plunger-ring | ||||
| 24 | 344093140 | 4.51 | 5.46 | |
| Bekrachtigingshuls compl. | ||||
| 25 | 341210790 | 11.74 | 14.21 | |
| sealing ring | ||||
| 26 | 342022350 | 1.56 | 1.89 | |
| Tandwielflens compl. | ||||
| 27 | 316045680 | 24.23 | 29.32 | |
| Sealing felt | ||||
| 28 | 344070670 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 29 | 344095920 | 1.56 | 1.89 | |
| Ball cylinder head Thread Form | ||||
| 30 | 141119440 | 1.56 | 1.89 | |
| Anker compl.,230V | ||||
| 31 | 310012200 | 37.65 | 45.56 | |
| Kogellager 6x19x 6 | ||||
| 32 | 143115660 | 2.28 | 2.76 | |
| Washer | ||||
| 33 | 141153400 | 1.68 | 2.03 | |
| O-ring | ||||
| 34 | 143195230 | 1.56 | 1.89 | |
| Schakelknop compl. | ||||
| 35 | 316052990 | 4.51 | 5.46 | |
| Seal | ||||
| 36 | 343398340 | 1.56 | 1.89 | |
| Dieptegeleider | ||||
| 37 | 341511630 | 4.51 | 5.46 | |
| Handgreep compl. | ||||
| 38 | 314000840 | 8.89 | 10.76 | |
| Centrifugeerschijf | ||||
| 39 | 343398310 | 1.56 | 1.89 | |
| Kogellager, 8X 22X 7 | ||||
| 40 | 143115890 | 4.51 | 5.46 | |
| Axial washer | ||||
| 41 | 143115300 | 1.56 | 1.89 | |
| Axial needle bearing | ||||
| 42 | 143115310 | 3.02 | 3.65 | |
| Schotelveer | ||||
| 43 | 141154920 | 1.68 | 2.03 | |
| Tandwielas compl. | ||||
| 44 | 316054890 | 67.33 | 81.47 | |
| Flange | ||||
| 45 | 343398300 | 3.02 | 3.65 | |
| Field | ||||
| 46 | 311012630 | 26.95 | 32.61 | |
| Self-tap. fill. h. screw | ||||
| 47 | 341722860 | 1.56 | 1.89 | |
| Motor housing | ||||
| 48 | 343398290 | 11.74 | 14.21 | |
| Schakel-element compl. | ||||
| 49 | 316045600 | 4.51 | 5.46 | |
| Self-tap fill h screw | ||||
| 50 | 141116020 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 51 | 141116990 | 1.68 | 2.03 | |
| Pistol grip 2-piece | ||||
| 52 | 343398280 | 11.74 | 14.21 | |
| Elektro.schakelaar zonder stelwiel,230V | ||||
| 53 | 343411660 | 16.25 | 19.66 | |
| Cable clip | ||||
| 54 | 343362490 | 1.68 | 2.03 | |
| Koolborstelset,230 V | ||||
| 55 | 316046950 | 12.23 | 14.80 | |
| Carbon brush holder module, 230V - V-EI. 85 | ||||
| 56 | 316051990 | 12.23 | 14.80 | |
| Kabelbescherming | ||||
| 57 | 344101140 | 2.28 | 2.76 | |
| Cable with CEE-plug | ||||
| 58 | 344489060 | 18.80 | 22.75 | |
| Typeplaatje | ||||
| 59 | 338055940 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 61 | 316057080 | |||
| Vangerhuls | ||||
| 90 | 341059290 | 4.51 | 5.46 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 18.80 | 22.75 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 890 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338505160 | |||
