Here you will find all available parts and drawings of the 'Metabo 00321002 (BF18LTX90)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

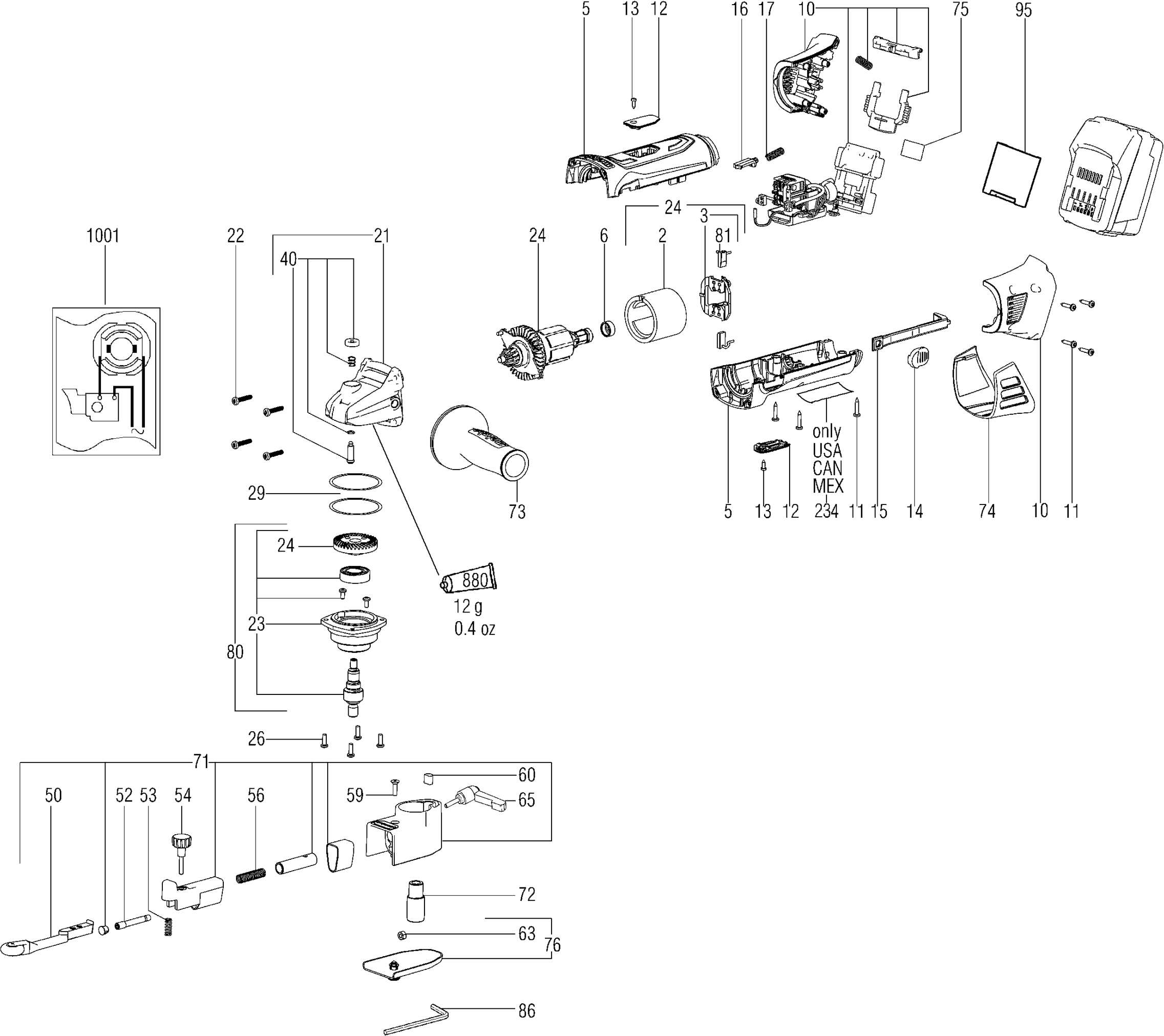

Technical drawing of model Metabo 00321002 (BF18LTX90)
Spare parts list of model Metabo 00321002 (BF18LTX90)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field package compl., 2 poles | ||||
| 2 | 311011880 | 57.79 | 69.93 | |
| Carbon brush holder compl., 18 V | ||||
| 3 | 316053210 | 13.93 | 16.86 | |
| Motor Housing | ||||
| 5 | 343398580 | 24.26 | 29.35 | |
| Bus rubber | ||||
| 6 | 344098740 | 1.67 | 2.02 | |
| Battery shell black | ||||
| 8 | 343430800 | 9.36 | 11.33 | |
| Huis compl. | ||||
| 10 | 316049680 | 100.68 | 121.82 | |
| Self-tap. fill. h. screw | ||||
| 11 | 141113180 | 1.67 | 2.02 | |
| Koolborsteldeksel | ||||
| 12 | 343398600 | 1.67 | 2.02 | |
| Self-tapp. fill. h. screw | ||||
| 13 | 141119900 | 1.67 | 2.02 | |
| Switch slide ,H/L | ||||
| 14 | 343397810 | 1.67 | 2.02 | |
| Schakelstang | ||||
| 15 | 339136560 | 3.20 | 3.87 | |
| Steunstift | ||||
| 16 | 343398620 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 17 | 342003030 | 1.67 | 2.02 | |
| Tandwielhuis compl. | ||||
| 21 | 316056610 | 27.16 | 32.86 | |
| Self-tap. fill. h. screw | ||||
| 22 | 141117060 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 23 | 318001440 | |||
| Aandrijving m.Anker compl. | ||||
| 24 | 316061840 | 122.46 | 148.18 | |
| Lensschroef | ||||
| 26 | 141124090 | 1.67 | 2.02 | |
| Compensating washer | ||||
| 29 | 339011860 | 1.67 | 2.02 | |
| Spindle stop compl. | ||||
| 40 | 316040610 | 3.20 | 3.87 | |
| No information available, not orderable | ||||
| 50 | 626379000 | |||
| Geleidingsstang | ||||
| 52 | 341515510 | 94.99 | 114.94 | |
| Pressure spring | ||||
| 53 | 342003670 | 9.36 | 11.33 | |
| Verstelknop | ||||
| 54 | 341102270 | 35.72 | 43.22 | |
| Pressure spring | ||||
| 56 | 342003680 | 9.36 | 11.33 | |
| Countersunk screw, N 8-32 UNCx1/2" | ||||
| 59 | 341704530 | 1.67 | 2.02 | |
| Clamping Piece | ||||
| 60 | 344600810 | 1.79 | 2.17 | |
| Cilinderkopschroef | ||||
| 61 | 141113600 | 1.79 | 2.17 | |
| Zeskante moer | ||||
| 63 | 141130090 | 1.67 | 2.02 | |
| Spanhendel | ||||
| 65 | 341112940 | 18.28 | 22.12 | |
| Band file attachment | ||||
| 71 | 316067150 | 161.95 | 195.96 | |
| Aandrijfrol | ||||
| 72 | 341201070 | 21.22 | 25.68 | |
| Handgreep extra compl. | ||||
| 73 | 316046590 | 9.36 | 11.33 | |
| Dust filter | ||||
| 74 | 343398890 | 6.05 | 7.32 | |
| Typeplaatje | ||||
| 75 | 338055480 | 1.67 | 2.02 | |
| Band file attachment | ||||
| 76 | 316067150 | 161.95 | 195.96 | |
| Flange compl.,M10 | ||||
| 80 | 316048820 | 70.83 | 85.70 | |
| Koolborstelset | ||||
| 81 | 316060540 | 10.82 | 13.09 | |
| Cover cap | ||||
| 95 | 343439680 | 1.67 | 2.02 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 41.32 | 50.00 | |
| No information available, not orderable | ||||
| 1001 | 338505280 | |||
