Here you will find all available parts and drawings of the 'Metabo 00557100 ( BE560 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

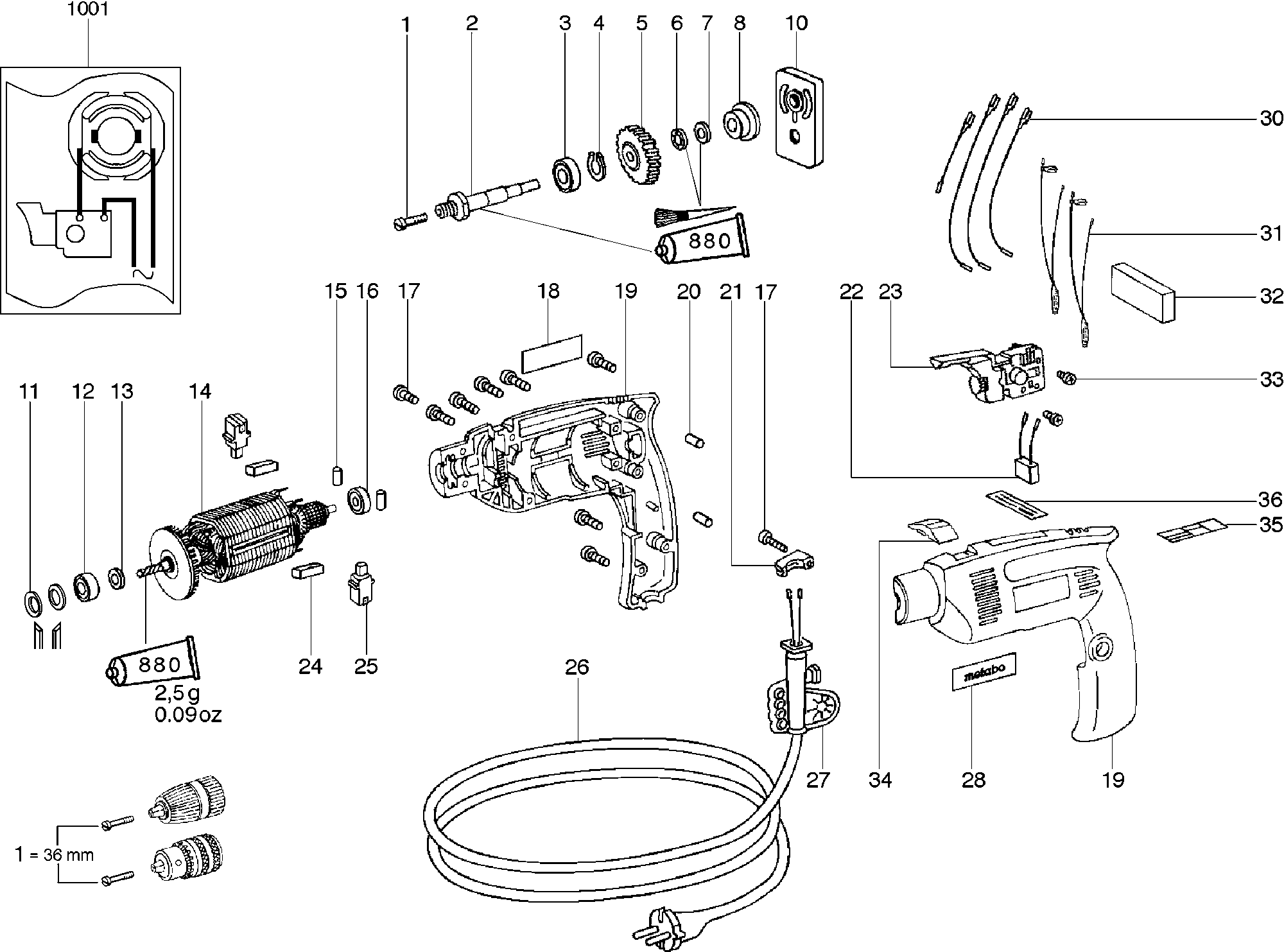

Technical drawing of model Metabo 00557100 ( BE560 )
Spare parts list of model Metabo 00557100 ( BE560 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341701940 | 1.67 | 2.02 | |
| Spindle | ||||
| 2 | 341603410 | 24.23 | 29.32 | |
| Kogellager 12x28x 8 | ||||
| 3 | 143115640 | 2.28 | 2.76 | |
| RETAINING RING | ||||
| 4 | 141180060 | 1.55 | 1.88 | |
| Spur gear | ||||
| 5 | 341054650 | 13.48 | 16.31 | |
| Kogelhouder | ||||
| 6 | 320050260 | 3.71 | 4.49 | |
| Washer | ||||
| 7 | 339005870 | 1.55 | 1.88 | |
| Pressure plate | ||||
| 8 | 341055040 | 8.89 | 10.76 | |
| Tandwielflens compl. | ||||
| 10 | 316026010 | 13.48 | 16.31 | |
| Disc spring | ||||
| 11 | 141150590 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 12 | 143113400 | |||
| Washer | ||||
| 13 | 341055170 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 14 | 316027100 | |||
| Rubber stop | ||||
| 15 | 344091420 | 1.55 | 1.88 | |
| Kogellager 6x19x 6 | ||||
| 16 | 143115660 | 2.28 | 2.76 | |
| Self-tap fill h screw | ||||
| 17 | 141116020 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 18 | 338040270 | |||
| No information available, not orderable | ||||
| 19 | 343371830 | |||
| Rubber stop | ||||
| 20 | 344092220 | 1.55 | 1.88 | |
| Cable clip | ||||
| 21 | 343362490 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 22 | 343254010 | |||
| Elektronische schakelaar | ||||
| 23 | 343409570 | 18.80 | 22.75 | |
| Rubber stop | ||||
| 24 | 344093350 | 1.55 | 1.88 | |
| Koolborstel set | ||||
| 25 | 316033870 | 12.23 | 14.80 | |
| Cable with CEE plug | ||||
| 26 | 344485880 | 12.23 | 14.80 | |
| Kabeldoorvoer | ||||
| 27 | 344100590 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 28 | 338115220 | |||
| Connection wire set | ||||
| 30 | 344493140 | 4.51 | 5.46 | |
| Smoorspoel | ||||
| 31 | 343253940 | 5.87 | 7.10 | |
| Inleg licht ontvlambaar | ||||
| 32 | 344103000 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 33 | 141116970 | 1.67 | 2.02 | |
| Sealing slide | ||||
| 34 | 343371960 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 35 | 338115270 | |||
| No information available, not orderable | ||||
| 36 | 399999990 | |||
| Can of grease UNIM GL402 | ||||
| 880 | 344130650 | 11.74 | 14.21 | |
