Here you will find all available parts and drawings of the 'Metabo 00831000 (BE1020)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

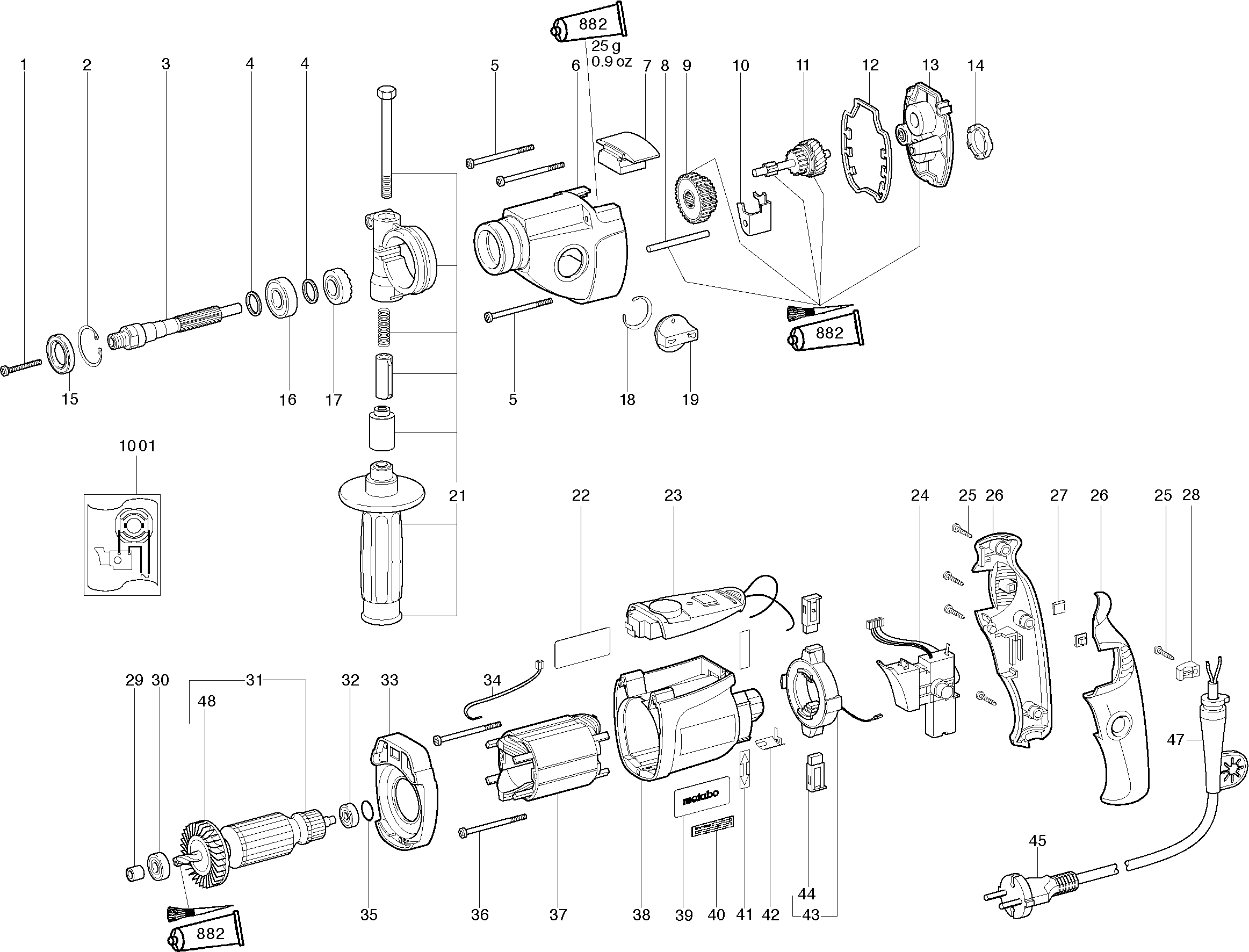

Technical drawing of model Metabo 00831000 (BE1020)
Spare parts list of model Metabo 00831000 (BE1020)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341701940 | 1.79 | 2.17 | |
| Retaining ring | ||||
| 2 | 141181680 | 1.67 | 2.02 | |
| Drill spindle | ||||
| 3 | 341603640 | 27.16 | 32.86 | |
| Ring | ||||
| 4 | 339006750 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 5 | 141122490 | 1.79 | 2.17 | |
| Tandwielhuis compl. | ||||
| 6 | 316035300 | 52.36 | 63.36 | |
| Afdekking m. Pakking | ||||
| 7 | 343378830 | 3.20 | 3.87 | |
| Guide pin | ||||
| 8 | 341540010 | 4.78 | 5.78 | |
| Sliding gear | ||||
| 9 | 340004010 | 9.36 | 11.33 | |
| Schakelvork | ||||
| 10 | 339129270 | 1.79 | 2.17 | |
| Veiligheidskoppeling | ||||
| 11 | 316030380 | 64.44 | 77.97 | |
| Vormpakking | ||||
| 12 | 344095910 | 1.79 | 2.17 | |
| Tandwielflens compl. | ||||
| 13 | 316031000 | 57.79 | 69.93 | |
| Rubber buffer | ||||
| 14 | 344095920 | 1.67 | 2.02 | |
| Gegolfde dichtring | ||||
| 15 | 339210830 | 2.43 | 2.94 | |
| Ball bearing 15x32x9 | ||||
| 16 | 143110220 | 21.22 | 25.68 | |
| Slotted disc | ||||
| 17 | 341055650 | 3.89 | 4.71 | |
| Half-moon washer | ||||
| 18 | 141155810 | 1.67 | 2.02 | |
| Schakelknop compl. | ||||
| 19 | 316029530 | 3.20 | 3.87 | |
| Handgreep compl. | ||||
| 21 | 314000790 | 24.26 | 29.35 | |
| No information available, not orderable | ||||
| 22 | 338043760 | |||
| VTC Electronics Signal | ||||
| 23 | 343077510 | 77.08 | 93.27 | |
| Potentiometer switch | ||||
| 24 | 343406880 | 27.16 | 32.86 | |
| Self-tap. fill. h. screw | ||||
| 25 | 141117060 | 1.79 | 2.17 | |
| Two-part pistol grip | ||||
| 26 | 343393020 | 9.36 | 11.33 | |
| No information available, not orderable | ||||
| 27 | 343378650 | |||
| Cable clip | ||||
| 28 | 343362490 | 1.79 | 2.17 | |
| Afdichtring | ||||
| 29 | 343376040 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 30 | 143113400 | |||
| Anker 230 V | ||||
| 31 | 310007880 | 83.19 | 100.66 | |
| Kogellager 6x19x 6 | ||||
| 32 | 143115660 | 2.43 | 2.94 | |
| Tussenflens | ||||
| 33 | 343374270 | 6.05 | 7.32 | |
| No longer available, no replacement | ||||
| 34 | 343078020 | |||
| O-ring | ||||
| 35 | 143192430 | 1.79 | 2.17 | |
| Self-tap. fill. h. screw | ||||
| 36 | 141118260 | 1.67 | 2.02 | |
| Field | ||||
| 37 | 311009810 | 21.22 | 25.68 | |
| Motor housing | ||||
| 38 | 315012650 | 15.31 | 18.53 | |
| No longer available, no replacement | ||||
| 39 | 338122160 | |||
| No information available, not orderable | ||||
| 40 | 399999990 | |||
| Aanduidingsplaatje | ||||
| 41 | 338115410 | 1.67 | 2.02 | |
| Carbon Brush Contact | ||||
| 42 | 339129390 | 3.20 | 3.87 | |
| Carbon Brush Holder Module R+L | ||||
| 43 | 316028790 | 29.97 | 36.26 | |
| Koolborstel set 230 V | ||||
| 44 | 316034960 | 15.31 | 18.53 | |
| Kabel m. CEE-stekker | ||||
| 45 | 344493180 | 24.26 | 29.35 | |
| Kabelbescherming | ||||
| 47 | 344101160 | 2.43 | 2.94 | |
| Waaier m. stofbescherming | ||||
| 48 | 316035740 | 12.19 | 14.75 | |
| Grease tube 50 gr. 1,8oz | ||||
| 882 | 344130970 | 12.19 | 14.75 | |
| No information available, not orderable | ||||
| 1001 | 338502250 | |||
