Here you will find all available parts and drawings of the 'Metabo 00806000 ( BDE1100 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

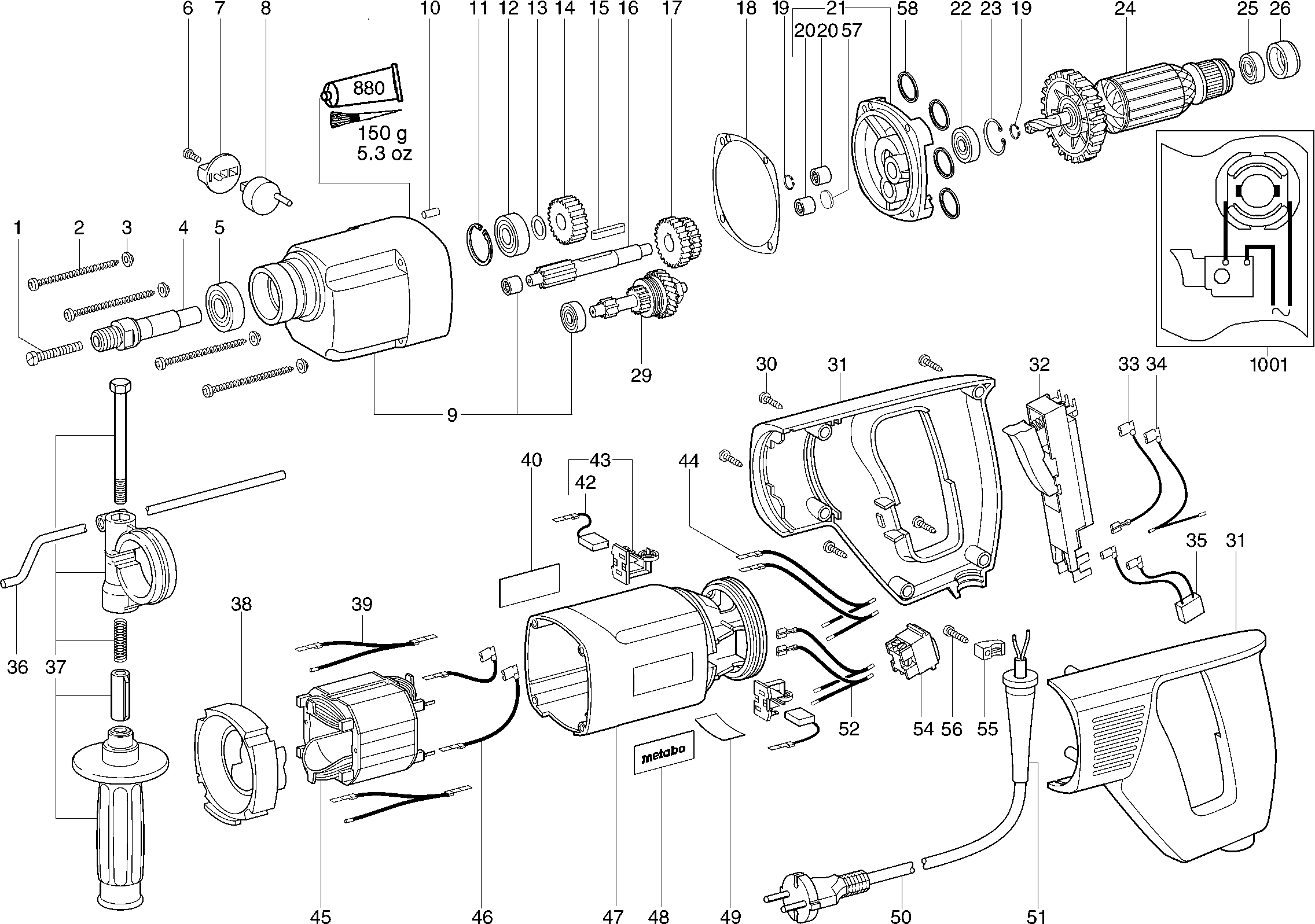

Technical drawing of model Metabo 00806000 ( BDE1100 )

Spare parts list of model Metabo 00806000 ( BDE1100 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cilinderkopschroef
1 341701940 1.67 2.02
Self-tap. fill. h. screw
2 141118700 1.67 2.02
Gasket
3 339210910 1.55 1.88
Spindle
4 341603790 74.13 89.70
Ball Bearing 15x35x11
5 143111520 16.25 19.66
Cylinder head screw
6 141111070 1.55 1.88
Control knob complete
7 316049410 18.80 22.75
Tandwielhuis compl.
8 316032920 32.27 39.05
Tandwielhuis compl.
9 316032790 121.19 146.64
No information available, not orderable
10 141160350
Retaining ring
11 141180360 1.67 2.02
Kogellager 12x28x 8
12 143113860 12.23 14.80
Washer
13 141152150 1.67 2.02
Spindle wheel
14 340003430 43.15 52.21
PRALLEL KEY
15 141154910 1.55 1.88
Axis of gear block
16 340003410 53.86 65.17
Gear block
17 340003420 60.59 73.31
Gasket
18 339210850 3.02 3.65
Retaining ring
19 141180040 1.55 1.88
No information available, not orderable
20 143111460
No information available, not orderable
21 316032800
Ball Bearing 10x26x8
22 143111120 16.25 19.66
Retaining ring
23 141180350 1.67 2.02
Anker 230 V
24 310008290 148.53 179.72
Kogellager 8x22x 7
25 143115800 2.28 2.76
Rubber bearing ring
26 344096020 1.67 2.02
Veiligheidskoppeling
29 316032820 121.19 146.64
Self-tap fill h screw
30 141116020 1.67 2.02
Spa-greep 2-delig
31 343377080 32.27 39.05
Axle plate
32 343407310 80.81 97.78
Electronic switch
32 343412750 43.15 52.21
No information available, not orderable
33 399999990
No information available, not orderable
34 399999990
Condensator
35 343254180 7.22 8.74
Dieptegeleider
36 341511630 4.51 5.46
Handgreep compl.
37 314000790 21.64 26.18
Luchtgeleidingsschijf
38 339150970 5.87 7.10
No information available, not orderable
39 399999990
Typeplaatje
40 338042660 1.55 1.88
Koolborstel set
42 316035080 21.64 26.18
Koolborstelhouder compl.
43 316033220 16.25 19.66
Verbindingsdraad
44 344494870 2.28 2.76
Field
45 311010040 48.48 58.66
Verbindingsdraad
46 344494860 2.28 2.76
Motor housing
47 315012780 16.25 19.66
No longer available, no replacement
48 338122160
No information available, not orderable
49 399999990
Kabel m. CEE-stekker
50 344493180 21.64 26.18
Kabeldoorvoer
51 344100970 1.67 2.02
Verbindingsdraad
52 344494880 1.67 2.02
Omschakelaar
54 343407330 32.27 39.05
Cable clip
55 343362490 1.67 2.02
Self-tap. fill. h. screw
56 141117060 1.67 2.02
Washer
57 339000770 1.55 1.88
No information available, not orderable
58 143195080
Grease
880 344131050 48.48 58.66
No information available, not orderable
1001 338502500
