Here you will find all available parts and drawings of the 'Metabo 0910018450-11 ( BASISDRAAGSYSTEEMUK220/PK200 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

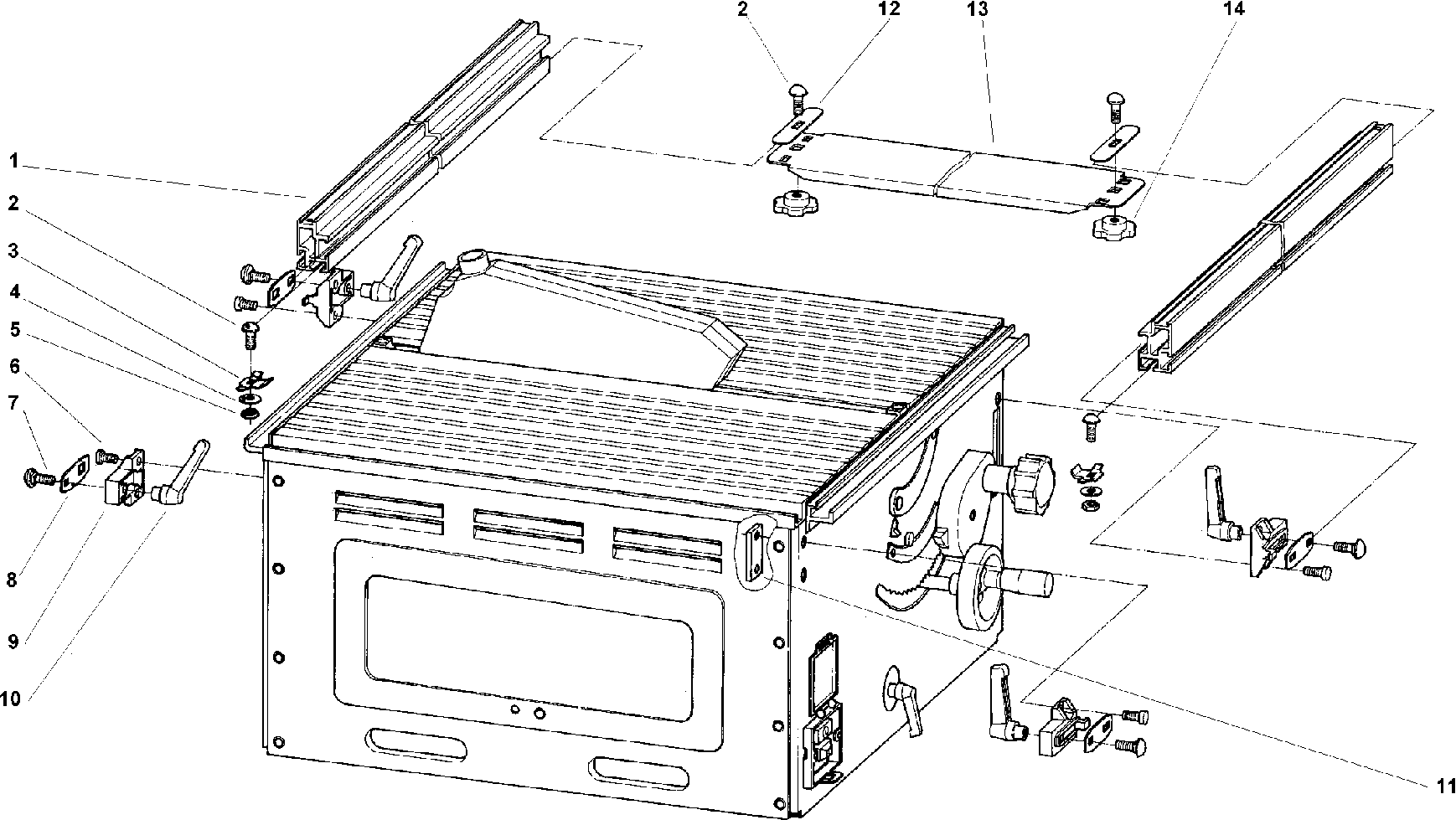

Technical drawing of model Metabo 0910018450-11 ( BASISDRAAGSYSTEEMUK220/PK200 )
Spare parts list of model Metabo 0910018450-11 ( BASISDRAAGSYSTEEMUK220/PK200 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 1383222385 | |||
| Positioning plate BL 2.99X33.5X36 | ||||
| 3 | 1482222486 | 1.67 | 2.02 | |
| Washer | ||||
| 4 | 141150130 | 1.55 | 1.88 | |
| Flange nut | ||||
| 5 | 6209114230 | 1.55 | 1.88 | |
| Cylinder head screw | ||||
| 6 | 6121023081 | 1.55 | 1.88 | |
| Flat head bolt | ||||
| 7 | 6110031325 | 1.55 | 1.88 | |
| CLAMP PLATE BL 2.99X18.5X55 | ||||
| 8 | 1382222217 | 1.67 | 2.02 | |
| ANGLE PLATE | ||||
| 9 | 1380222201 | 5.87 | 7.10 | |
| Chuck lever OSC 18 | ||||
| 10 | 7006072385 | 5.87 | 7.10 | |
| HOLDER FL 16X5X48 /2XM6 | ||||
| 11 | 1482222788 | 3.71 | 4.49 | |
| RUNNER GUIDE PLATE | ||||
| 12 | 1392201587 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 13 | 1382222772 | |||
| STAR KNOB NUT RD40/M 6 (DIN 934) GALVANIZED | ||||
| 14 | 7000025458 | 1.67 | 2.02 | |
