Here you will find all available parts and drawings of the 'Metabo 01535000 ( BASIC250-50WOF )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

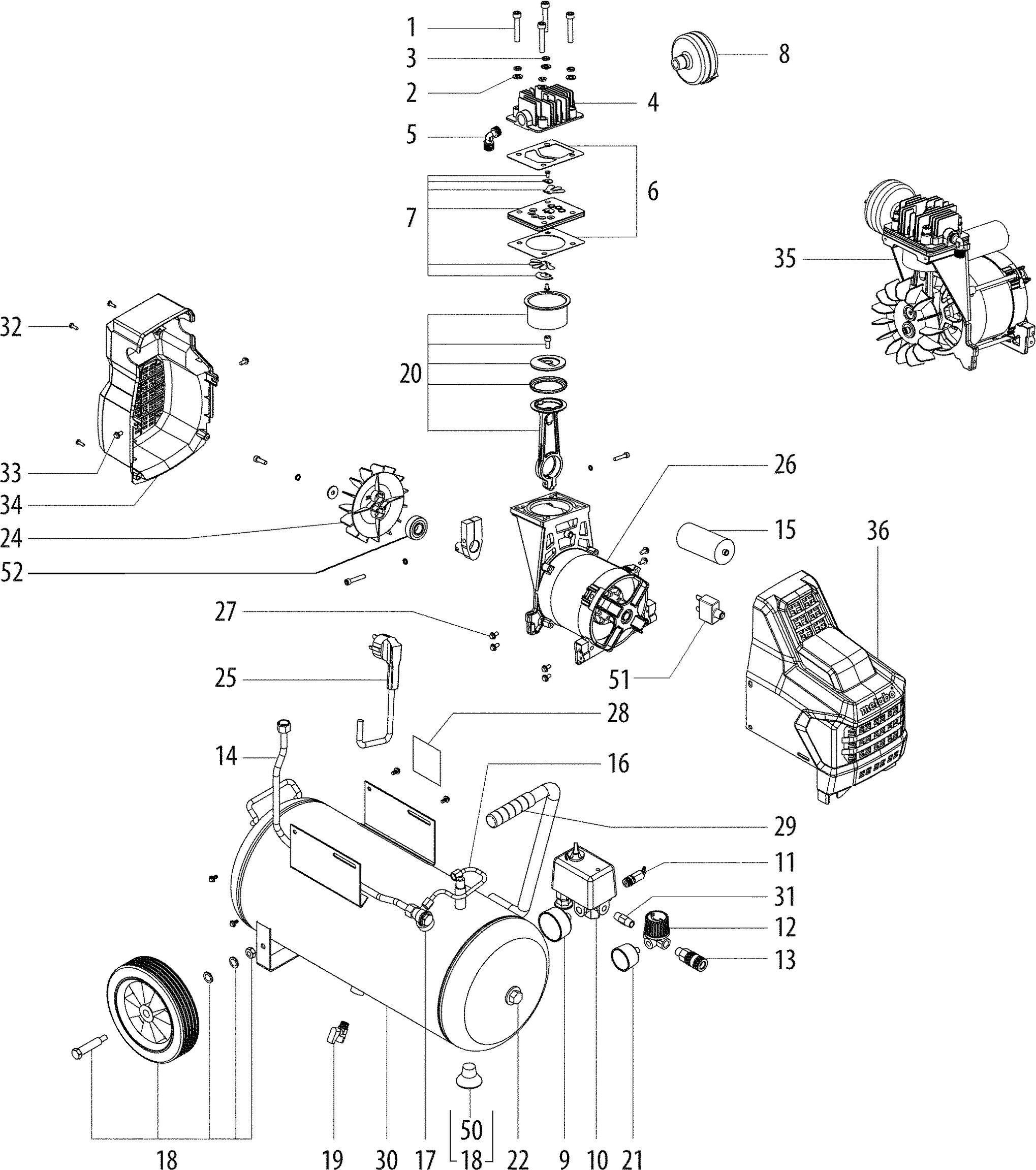

Technical drawing of model Metabo 01535000 ( BASIC250-50WOF )
Spare parts list of model Metabo 01535000 ( BASIC250-50WOF )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Schroef,M8x45 | ||||
| 1 | 141124320 | 1.55 | 1.88 | |
| Washer | ||||
| 2 | 141156000 | 1.55 | 1.88 | |
| Lock washer | ||||
| 3 | 141156690 | 1.55 | 1.88 | |
| CILINDERKOP ET | ||||
| 4 | 315418700 | 12.23 | 14.80 | |
| Angle screw connection 3/8"X10 MM ET | ||||
| 5 | 341721910 | 2.28 | 2.76 | |
| Pakking set | ||||
| 6 | 316092860 | 1.55 | 1.88 | |
| Seal Plate Set | ||||
| 7 | 316058200 | 11.74 | 14.21 | |
| LUCHTFILTER | ||||
| 8 | 341164790 | 5.20 | 6.29 | |
| Pressure Gauge Rear Connection RD 40 R1/8 | ||||
| 9 | 341164680 | 7.22 | 8.74 | |
| Drukschakelaar | ||||
| 10 | 343411060 | 53.86 | 65.17 | |
| SAFETY VALVE 1/4"A/8 BAR ET | ||||
| 11 | 341164650 | 8.89 | 10.76 | |
| Reduction Valve RP-192 1/4"I-A ET | ||||
| 12 | 341164670 | 10.38 | 12.56 | |
| SNEL-AANSLUITKOPPELING R 1/4" AG | ||||
| 13 | 341210870 | 7.22 | 8.74 | |
| PERSLEIDING | ||||
| 14 | 343440100 | 4.51 | 5.46 | |
| Condensator | ||||
| 15 | 343254860 | 11.74 | 14.21 | |
| Tube | ||||
| 16 | 315418710 | 3.02 | 3.65 | |
| CHECK VALV | ||||
| 17 | 341164620 | 7.22 | 8.74 | |
| Wheelset Ø250 Ø20 | ||||
| 18 | 316058160 | 13.48 | 16.31 | |
| Ball drain valve 3/8" | ||||
| 19 | 341165010 | 24.23 | 29.32 | |
| Water Drain Valve R | ||||
| 19 | 341164800 | 5.87 | 7.10 | |
| Drijfstang | ||||
| 20 | 316058180 | 43.15 | 52.21 | |
| Pressure Gauge Rear Connection RD 40 R1/4 | ||||
| 21 | 341164690 | 8.89 | 10.76 | |
| SLUITSCHROEF R 1/2" VERZ. | ||||
| 22 | 341721920 | 1.55 | 1.88 | |
| Fan blade complete | ||||
| 24 | 316058220 | 2.28 | 2.76 | |
| RUBBER CABLE 3GX1.5X3000 A=437.1U B=70 GE | ||||
| 25 | 344499900 | 10.38 | 12.56 | |
| Motor compl. | ||||
| 26 | 317004420 | 201.99 | 244.41 | |
| Cilinderkopschroef | ||||
| 27 | 141124330 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 28 | 338067630 | 1.55 | 1.88 | |
| Handle | ||||
| 29 | 343440190 | 3.71 | 4.49 | |
| Container | ||||
| 30 | 341164830 | 213.88 | 258.79 | |
| DOUBLE NIPPLE R 1/4" | ||||
| 31 | 341164640 | 1.67 | 2.02 | |
| Zeskantschroef | ||||
| 32 | 141121830 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 33 | 141124340 | 1.55 | 1.88 | |
| Covering hood | ||||
| 34 | 343440110 | 5.18 | 6.27 | |
| VERDICHTER cpl. | ||||
| 35 | 316059370 | 296.22 | 358.43 | |
| Covering hood, motor | ||||
| 36 | 343440030 | 8.89 | 10.76 | |
| RUBBER CABLE WITH PLUG | ||||
| 43 | 1009621039 | 43.15 | 52.21 | |
| Rubberen voet | ||||
| 50 | 344113530 | 1.55 | 1.88 | |
| Motor protection switch, 6A | ||||
| 51 | 343411820 | 5.87 | 7.10 | |
| BALL BEARING 17X40X12 6203-2RS1 | ||||
| 52 | 143116240 | 4.51 | 5.46 | |
