Here you will find all available parts and drawings of the 'Metabo 0910050028-10 (BASECARRIERSYSTEMEXTENSION)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

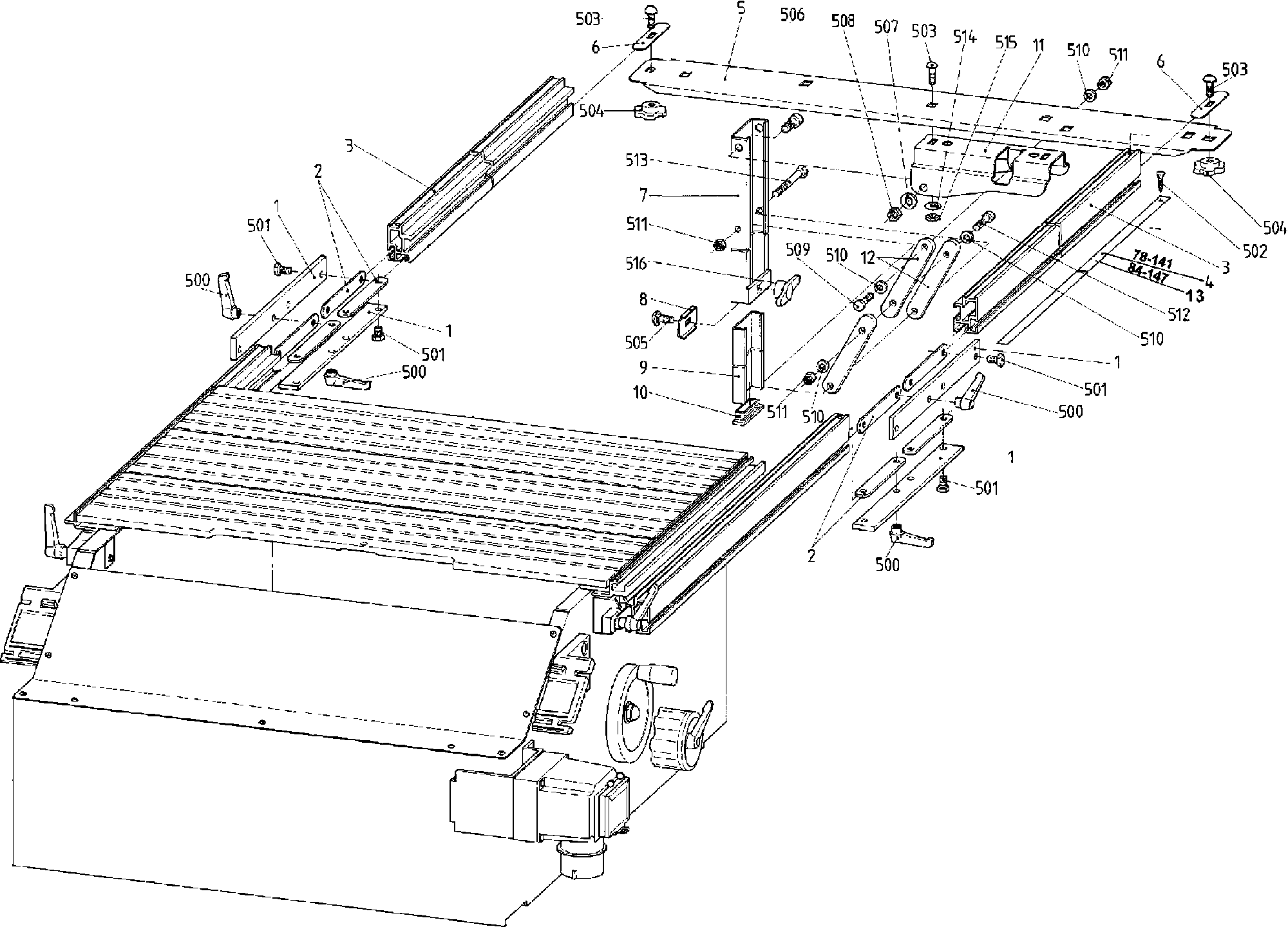

Technical drawing of model Metabo 0910050028-10 (BASECARRIERSYSTEMEXTENSION)
Spare parts list of model Metabo 0910050028-10 (BASECARRIERSYSTEMEXTENSION)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 1482211611 | |||
| No information available, not orderable | ||||
| 2 | 1482211603 | |||
| No information available, not orderable | ||||
| 3 | 1383217136 | |||
| No information available, not orderable | ||||
| 4 | 1142211595 | |||
| No information available, not orderable | ||||
| 5 | 1382217426 | |||
| RUNNER GUIDE PLATE | ||||
| 6 | 1392201587 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 7 | 1010222687 | |||
| No information available, not orderable | ||||
| 8 | 1482222729 | |||
| No information available, not orderable | ||||
| 9 | 1382222713 | |||
| SLOT BOLT 60X25 BLACK | ||||
| 10 | 1391019971 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 11 | 1482222664 | |||
| No information available, not orderable | ||||
| 12 | 1482222672 | |||
| No information available, not orderable | ||||
| 13 | 1142222872 | |||
| No longer available, no replacement | ||||
| 500 | 7006108681 | |||
| Zeskantschroef | ||||
| 501 | 141113290 | 1.56 | 1.89 | |
| Countersunk screw | ||||
| 502 | 6172091014 | 1.56 | 1.89 | |
| Slotted bolt with square insert | ||||
| 503 | 6110000594 | 1.56 | 1.89 | |
| STAR KNOB NUT RD40/M 6 (DIN 934) GALVANIZED | ||||
| 504 | 7000025458 | 1.67 | 2.02 | |
| Slotted bolt with square insert | ||||
| 505 | 6110000608 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 506 | 141113990 | 1.68 | 2.03 | |
| Washer | ||||
| 507 | 141151340 | 1.56 | 1.89 | |
| Self-locking hexagon nut | ||||
| 508 | 6202002305 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 509 | 6121023081 | 1.56 | 1.89 | |
| Disc spring | ||||
| 510 | 141155660 | 1.56 | 1.89 | |
| Hexagon safety nut | ||||
| 511 | 141130650 | 1.68 | 2.03 | |
| Cilinderkopschroef | ||||
| 512 | 141113870 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 513 | 141122690 | |||
| Washer | ||||
| 514 | 141150130 | 1.56 | 1.89 | |
| Flange nut | ||||
| 515 | 6209114230 | 1.56 | 1.89 | |
| Wing nut M 6 | ||||
| 516 | 7005155791 | 2.28 | 2.76 | |
