Here you will find all available parts and drawings of the 'Metabo 05052000 ( BAS505PRECISIONWNB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

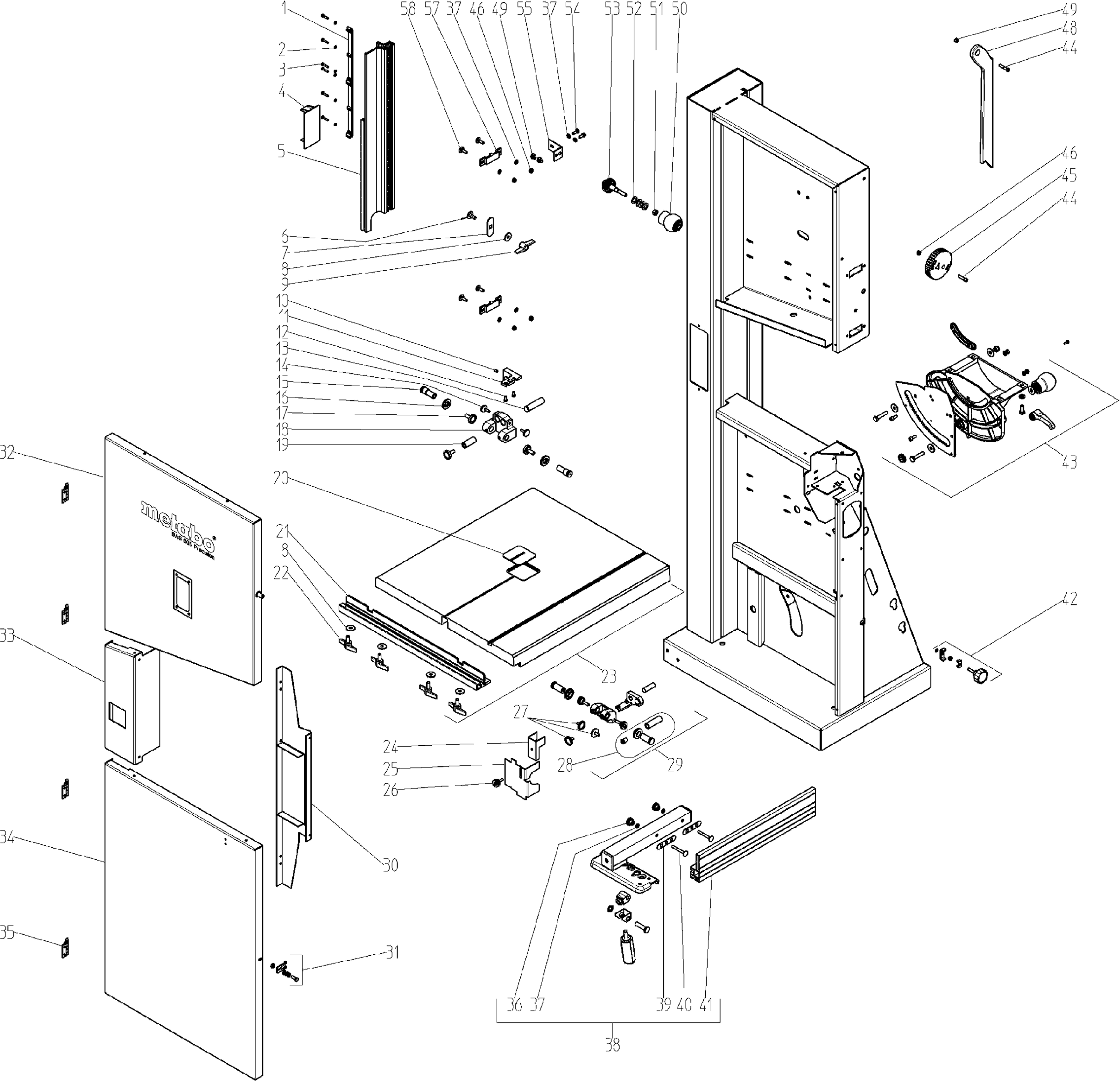

Technical drawing of model Metabo 05052000 ( BAS505PRECISIONWNB )

Spare parts list of model Metabo 05052000 ( BAS505PRECISIONWNB )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Gear Rod 13 MM
1 1380085514 3.02 3.65
Tandveerring
2 141150430 1.55 1.88
SELF-TAPPING SCREW WITH CROSSHEAD M 4X20 GALV.
3 6123084703 1.55 1.88
Slide 64.8X120
4 1381419360 10.38 12.56
SLIDE TUBE PROFILE 600 MM
5 1383419430 113.82 137.72
SCREW GUIDE BL 1.5X22X60
7 1382083667 1.55 1.88
Washer
8 141151340 1.55 1.88
KNOB
9 7005135529 1.67 2.02
Adjusting screw
10 6163121261 1.55 1.88
Three roller guide holder above
11 1380406469 16.25 19.66
No information available, not orderable
12 141122870
BOLT RD 16/14.5X65
13 1485409005 18.80 22.75
Knurled Nut
14 6241125058 1.67 2.02
Bearing Sleeve RD 18x46
15 1385693105 18.80 22.75
Knurled Nut M 16x1
16 1385693113 8.89 10.76
No information available, not orderable
17 1485415544
Three roller guide housing large
18 1380419161 48.48 58.66
Bushing RD 16x41
19 1385419178 12.23 14.80
INSERT DISC BL 2,00X69X70,5
20 1382692671 5.87 7.10
GUIDE PROFILE WITH SCALE BAS 505
21 1009720940 32.27 39.05
No longer available, no replacement
22 6150421509
No information available, not orderable
23 1009720924
Bandsaw Protection BL 1,50X63,5X96 BAS
24 1382713008 16.25 19.66
PROTECTION PLATE BL 1,50X103X177
25 1382693201 16.25 19.66
Knurled screw M 6X16 / RD 20 galv.
26 6143075468 1.67 2.02
WIRE GUIDE BAS 317 PRECISION
27 1009719829 10.38 12.56
No longer available, no replacement
28 1009719870
THREE ROLLER GUIDES BAS 317 PRECISION
29 1009719810 43.15 52.21
No information available, not orderable
30 1382723186
Clamping Hook
31 1009740356 13.48 16.31
Door top BL 1.50X636X702 BAS505
32 1382723127 107.70 130.32
Bending plate
33 1382723178 32.27 39.05
Door complete
34 1382723151 107.70 130.32
Screw-on hinge 40X40
35 1321712858 7.22 8.74
Knurled Nut
36 6241125058 1.67 2.02
Washer
37 141151940 1.55 1.88
SUPPORT GUIDE WITH PRE-PROFILE BAS 50
38 1009693307 43.15 52.21
RUNNER GUIDE PLATE
39 1392201587 1.55 1.88
SLOT BOLT WITH SQUARE INSERT M 6X50 VERZ
40 6110052292 1.55 1.88
No longer available, no replacement
41 1383693051
Closing system BAS 317 Precision
42 1009739676 5.18 6.27
TABLE ADJUSTMENT BAS 317 PRECISION
43 1009719942 74.13 89.70
Cilinderkopschroef
44 141113900 1.67 2.02
ROTARY KNOB LOCK
45 1381692694 5.87 7.10
Hexagon safety nut
46 141130650 1.67 2.02
Push stick
48 343433180 3.71 4.49
Zeskante moer
49 141130100 1.55 1.88
PLASTIC HANDLE
50 1388698264 5.18 6.27
Flange nut
51 6209110995 1.55 1.88
Disc spring
52 141150540 1.55 1.88
SETTING SHAFT
53 1009008876 74.13 89.70
Zeskantschroef
54 141113290 1.55 1.88
STOP CORNER BL 1.5X33X82
55 1382046028 2.28 2.76
GUIDANCE PROFILE
57 1380404164 5.87 7.10
Slotted bolt with square insert
58 6110000608 1.55 1.88
SSK SWITCH WN N=4000
59 8132743291 213.88 258.79
Switch Box BL 2,00x120,5x270
60 1382692981 80.81 97.78
DRILL SCREW WITH HEXAGON
61 6144063978 1.55 1.88
Self-tapp. counters. screw
62 141123420 1.55 1.88
Retaining ring
63 141180110 1.67 2.02
LOWER BAND SAW ROLL COMPLETE
64 1009010870 405.62 490.80
Hexagon nut M 20X1,5 verz.
65 6200046208 1.67 2.02
SPRING WASHER B 20 COATED.
66 6301047329 1.55 1.88
BEARING BOLT BOTTOM RD 25X170 BAS505
67 1485721688 37.65 45.56
Pin Tap with Morse Taper M 6X12 VERZ.
68 6161050910 1.55 1.88
V-BELT SHEAVE 2-STAGE SPZ DW 116X1 BOHRU
69 7240043275 60.59 73.31
No information available, not orderable
70 1009744823
Flange nut
71 6209620098 1.55 1.88
LEAF SPRING BAS 317
72 7052740210 1.55 1.88
Fillister head screw
73 141113040 1.55 1.88
V-Belt
74 7230664514 16.25 19.66
EXTRACTION PIECE WITH THROUGH PROTECTION BAS505
76 1009707596 21.64 26.18
E-MOTOR 1,50 WNB RE.-M.BR. (BAS)
77 8012688483 348.32 421.47
Fan housing 120/13
78 1331408847 3.02 3.65
VENTILATORBLAD 120/13 WELLEND. 16
79 1331408839 2.28 2.76
Band wheel for band saw 445X2,5X24 65 SHO
80 7232047415 26.95 32.61
THREAD ROD M 8X94
81 1485208140 2.28 2.76
Hexagonal screw
82 6103001178 1.55 1.88
No longer available, no replacement
84 1009732620
Cylinder pin 10 h11X100
85 6500087283 3.71 4.49
STARLOCK
86 7016050711 1.55 1.88
CLAMPING FRAME BL 2,99X152,5X256,5 BAS505
87 1382721493 43.15 52.21
PRESSURE SPRING D=7,5/DE=40/LO=160
88 7051697094 18.80 22.75
BLADE TENSION DISPLAY BAS505 BL 1.50X16X180
89 1382721540 5.87 7.10
STICKER TRANS./BLACK 16X90 BLADE TENSION
90 1141721468 7.22 8.74
Hexagon nut M 16X1,5 verz.
91 6200050477 1.55 1.88
SPRING WASHER B 16 COATED.
92 6301000292 1.55 1.88
Bearing pin RD 21X70 BAS505
93 1485704023 21.64 26.18
TOP BAND SAW ROLL COMPLETE
94 1388198580 256.98 310.95
SPACER SLEEVE RD 10,7/8,5X50 GALV.
95 6442084643 4.51 5.46
Brush Bar
96 9132081414 8.89 10.76
SQUARE BOLT WITH SQUARE INSERT M 8X100 COAT
97 6110082701 1.67 2.02
No longer available, no replacement
98 141110270
Countersunk screw
99 6172001821 1.55 1.88
Washer
100 141150010 1.55 1.88
No information available, not orderable
101 1382721523
Key A 3x3X8 Verz.
102 6721060355 2.28 2.76
SPINDLE HEIGHT ADJUSTMENT RD 20X304.5
103 1485692866 60.59 73.31
No longer available, no replacement
104 7104693142
Handwheel
105 7003079524 16.25 19.66
Self-locking hexagon nut
106 6202002305 1.55 1.88
Capacitor 30uF/450V 35 X 90
107 8050732160 21.64 26.18
No information available, not orderable
1001 338505600
