Here you will find all available parts and drawings of the 'Metabo 0090505000-13 ( BAS505GWNB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

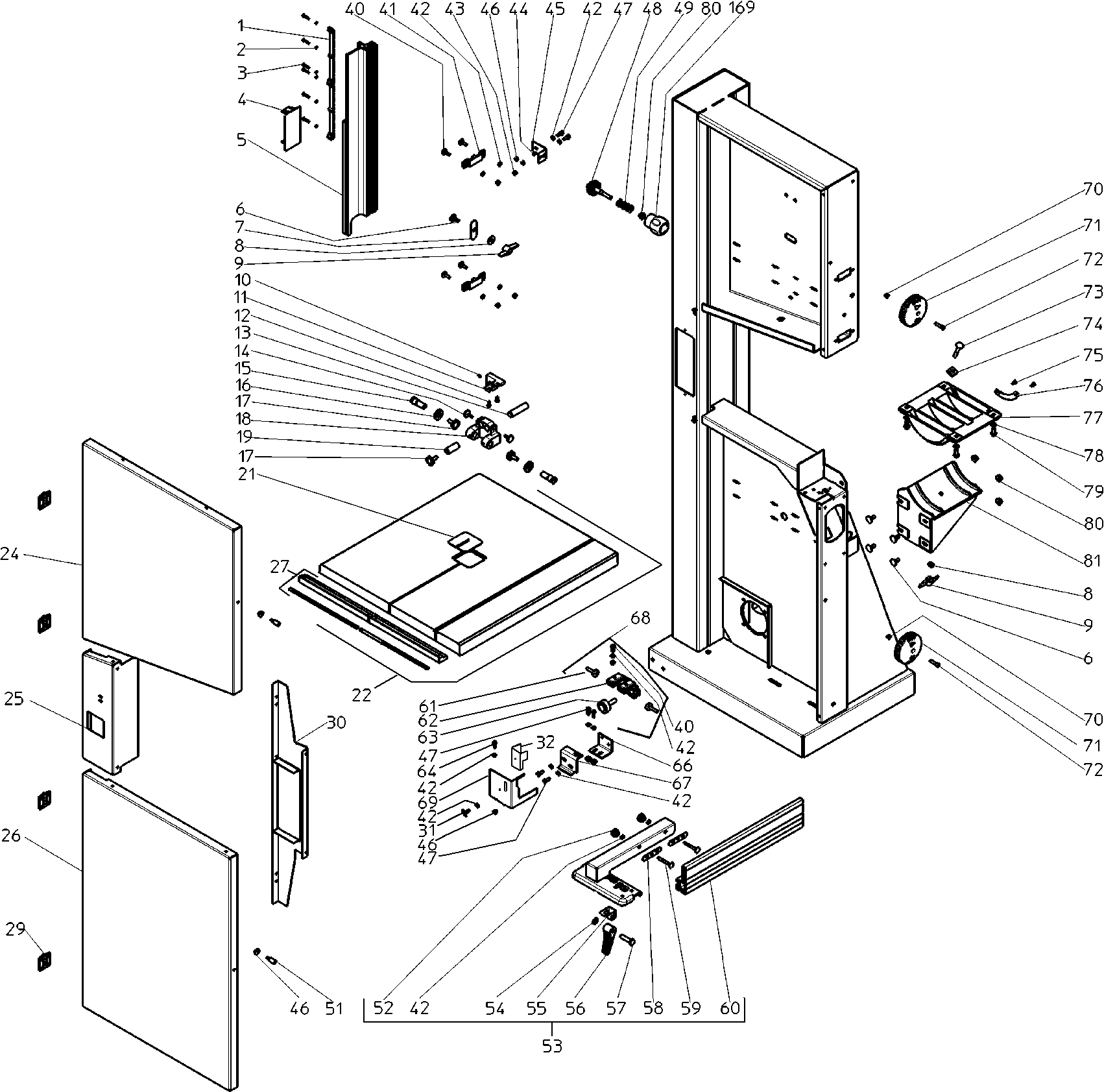

Technical drawing of model Metabo 0090505000-13 ( BAS505GWNB )

Spare parts list of model Metabo 0090505000-13 ( BAS505GWNB )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Gear Rod 13 MM
1 1380085514 3.02 3.65
Tandveerring
2 141150430 1.55 1.88
SELF-TAPPING SCREW WITH CROSSHEAD M 4X20 GALV.
3 6123084703 1.55 1.88
Slide 64.8X120
4 1381419360 10.38 12.56
SLIDE TUBE PROFILE 600 MM
5 1383419430 113.82 137.72
Flat head bolt
6 6110017942 1.55 1.88
SCREW GUIDE BL 1.5X22X60
7 1382083667 1.55 1.88
Washer
8 141151340 1.55 1.88
KNOB
9 7005135529 1.67 2.02
Adjusting screw
10 6163121261 1.55 1.88
Three roller guide holder above
11 1380406469 16.25 19.66
No information available, not orderable
12 141122870
BOLT RD 16/14.5X65
13 1485409005 18.80 22.75
Knurled screw flat M 5X16 verz.
14 7009120054 2.28 2.76
Bearing Sleeve RD 18x46
15 1385693105 18.80 22.75
Knurled Nut M 16x1
16 1385693113 8.89 10.76
ROLLER RD 25/8X28
17 1485681171 37.65 45.56
Three roller guide housing large
18 1380419161 48.48 58.66
Bushing RD 16x41
19 1385419178 12.23 14.80
INSERT DISC BL 2,00X69X70,5
21 1382692671 5.87 7.10
No information available, not orderable
22 1009720924
No information available, not orderable
24 1382721264
No information available, not orderable
25 1382721426
No information available, not orderable
26 1382721299
GUIDE PROFILE WITH SCALE BAS 505
27 1009720940 32.27 39.05
Screw-on hinge 40X40
29 1321712858 7.22 8.74
No information available, not orderable
30 1382721442
Thumb Screw M6 x 12
31 341112750 1.55 1.88
Bandsaw Protection BL 1,50X63,5X96 BAS
32 1382713008 16.25 19.66
Slotted bolt with square insert
40 6110000608 1.55 1.88
GUIDANCE PROFILE
41 1380404164 5.87 7.10
Washer
42 141151940 1.55 1.88
Zeskante moer
43 141130100 1.55 1.88
Retaining ring
44 141180020 1.55 1.88
STOP CORNER BL 1.5X33X82
45 1382046028 2.28 2.76
Flange nut
46 6209114230 1.55 1.88
Zeskantschroef
47 141113290 1.55 1.88
SETTING SHAFT
48 1009008876 74.13 89.70
Disc spring
49 141150540 1.55 1.88
No information available, not orderable
51 1485693129
Knurled Nut
52 6241125058 1.67 2.02
No information available, not orderable
53 1009693021
STARLOCK
54 7016050711 1.55 1.88
CHIPBOARD ,BL 1X26X91.5
55 1392205620 1.67 2.02
CLAMP CENTER
56 2390205484 7.22 8.74
BOLT WITH HEAD
57 6632111175 2.28 2.76
RUNNER GUIDE PLATE
58 1392201587 1.55 1.88
SLOT BOLT WITH SQUARE INSERT M 6X50 VERZ
59 6110052292 1.55 1.88
No longer available, no replacement
60 1383693051
No longer available, no replacement
61 1009010935
No information available, not orderable
62 2380113670
No information available, not orderable
63 1009010951
Cilinderkopschroef
64 141113890 1.67 2.02
No information available, not orderable
66 1382700330
No information available, not orderable
67 1382697100
No information available, not orderable
68 1009692785
No information available, not orderable
69 1382697126
Hexagon safety nut
70 141130650 1.67 2.02
ROTARY KNOB LOCK
71 1381692694 5.87 7.10
SQUARE BOLT WITH SQUARE INSERT M 8X50 COAT
73 6110080245 1.55 1.88
No information available, not orderable
74 1381092115
Place screw M.crosshead
75 6172015687 1.55 1.88
No information available, not orderable
76 1141403490
No information available, not orderable
77 1380062506
Flap Disc
78 6304001745 1.55 1.88
Hexagonal screw
79 6103001178 1.55 1.88
Flange nut
80 6209110995 1.55 1.88
No information available, not orderable
81 2380062510
Hexagon nut M 16X1,5 verz.
91 6200050477 1.55 1.88
SPRING WASHER B 16 COATED.
92 6301000292 1.55 1.88
Bearing pin RD 21X70 BAS505
93 1485704023 21.64 26.18
TOP BAND SAW ROLL COMPLETE
94 1388198580 256.98 310.95
Retaining ring
95 141180110 1.67 2.02
No information available, not orderable
96 8132719552
Flange nut
97 6209620098 1.55 1.88
No information available, not orderable
98 1382697002
No information available, not orderable
99 6200199675
Fillister head screw
100 141111430 1.67 2.02
Switch Box BL 2,00x120,5x270
101 1382692981 80.81 97.78
DRILL SCREW WITH HEXAGON
102 6144063978 1.55 1.88
Self-tapp. counters. screw
103 141123420 1.55 1.88
Brush Bar
104 9132081414 8.89 10.76
SQUARE BOLT WITH SQUARE INSERT M 8X100 COAT
105 6110082701 1.67 2.02
SPACER SLEEVE RD 10,7/8,5X50 GALV.
106 6442084643 4.51 5.46
Cylinder pin 10 h11X100
116 6500087283 3.71 4.49
Cilinderkopschroef
118 141113900 1.67 2.02
Push stick
119 343433180 3.71 4.49
LOWER BAND SAW ROLL COMPLETE
120 1009010870 405.62 490.80
Hexagon nut M 20X1,5 verz.
121 6200046208 1.67 2.02
SPRING WASHER B 20 COATED.
122 6301047329 1.55 1.88
BEARING BOLT BOTTOM RD 25X170 BAS505
123 1485721688 37.65 45.56
No longer available, no replacement
124 141110270
Pin Tap with Morse Taper M 6X12 VERZ.
125 6161050910 1.55 1.88
No information available, not orderable
126 7240045014
BALL BEARING 17X40X12 6203-2RS1
127 143116240 4.51 5.46
No information available, not orderable
128 1009010927
CLAMPING FRAME BL 2,99X152,5X256,5 BAS505
140 1382721493 43.15 52.21
PRESSURE SPRING D=7,5/DE=40/LO=160
141 7051697094 18.80 22.75
pressure plate ISC 240 komplett
142 1009732639 24.23 29.32
Key A 3x3X8 Verz.
143 6721060355 2.28 2.76
SPINDLE HEIGHT ADJUSTMENT RD 20X304.5
144 1485692866 60.59 73.31
No longer available, no replacement
145 7104693142
Handwheel
146 7003079524 16.25 19.66
Self-locking hexagon nut
147 6202002305 1.55 1.88
No longer available, no replacement
148 1009732620
FAN BLADE WITH FAN ET
152 1010689259 11.74 14.21
E-MOTOR 1,50 WNB RE.-M.BR. (BAS)
153 8012688483 348.32 421.47
Capacitor 30uF/450V 35 X 90
154 8050732160 21.64 26.18
EXTRACTION PIECE WITH THROUGH PROTECTION BAS505
155 1009707596 21.64 26.18
No information available, not orderable
156 6621007910
No information available, not orderable
160 7230047396
No information available, not orderable
161 7230047400
No information available, not orderable
162 9101178894
PIN KEY SW 3 BLACK
163 9102029329 2.28 2.76
No information available, not orderable
165 1382721582
No information available, not orderable
166 1382721620
THREAD ROD M 8X94
167 1485208140 2.28 2.76
DISC SPRING
168 7053075104 1.55 1.88
PLASTIC HANDLE
169 1388698264 5.18 6.27
No information available, not orderable
170 1382721566
Washer
172 141150010 1.55 1.88
STICKER TRANS./BLACK 16X90 BLADE TENSION
173 1141721468 7.22 8.74
BLADE TENSION DISPLAY BAS505 BL 1.50X16X180
174 1382721540 5.87 7.10
Zeskantschroef
175 141110320 1.67 2.02
