Here you will find all available parts and drawings of the 'Metabo 0090317100-10 (BAS317PRECISIONDNB)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

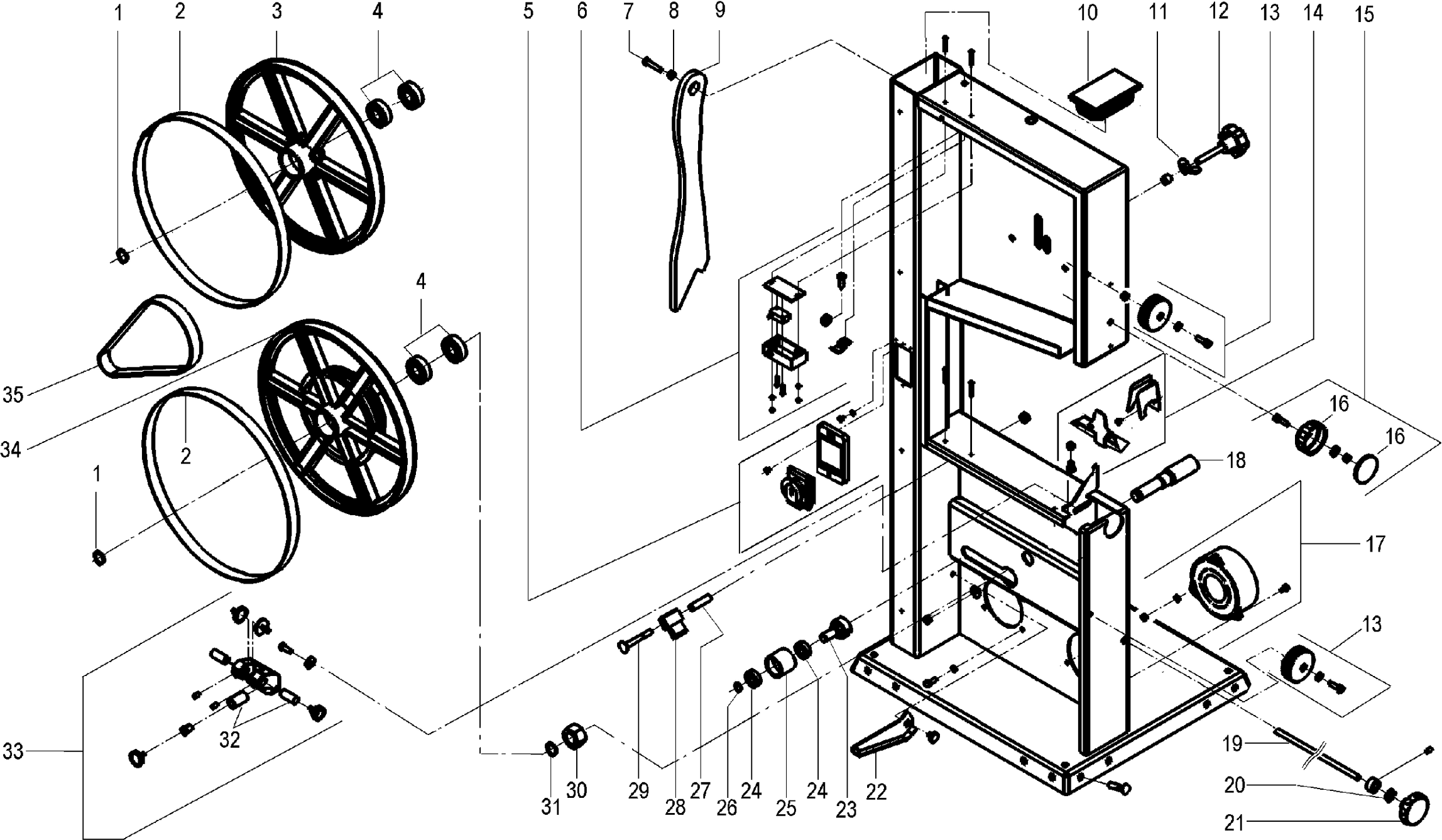

Technical drawing of model Metabo 0090317100-10 (BAS317PRECISIONDNB)
Spare parts list of model Metabo 0090317100-10 (BAS317PRECISIONDNB)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Band Saw Wheel Band 310x2,5x20 | ||||
| 2 | 344101930 | 9.36 | 11.33 | |
| Roll of band saw above | ||||
| 3 | 315419740 | 64.44 | 77.97 | |
| Ball bearing 17X40X12 6203-2Z | ||||
| 4 | 7100047254 | 9.36 | 11.33 | |
| No information available, not orderable | ||||
| 5 | 1009719977 | |||
| SAFETY SWITCH WITH CABLE BAS 317 | ||||
| 6 | 1009719748 | 7.58 | 9.17 | |
| Zeskantschroef | ||||
| 7 | 141110320 | 1.79 | 2.17 | |
| Zeskante moer | ||||
| 8 | 141131010 | 1.67 | 2.02 | |
| KNOB | ||||
| 11 | 7005135529 | 1.79 | 2.17 | |
| STAR KNOB SCREW M 8X65 (DIN 558) GALVANIZED | ||||
| 12 | 7001047374 | 3.89 | 4.71 | |
| DOORKNOB BAS 317 PRECISION | ||||
| 13 | 1009719845 | 3.89 | 4.71 | |
| BESCHERMING LINTZAAG BAS 317 PRECISION | ||||
| 14 | 1009719888 | 6.05 | 7.32 | |
| AXLE WITH GEAR ET | ||||
| 15 | 1388681035 | 2.43 | 2.94 | |
| STAR KNOB HEIGHT ADJUSTMENT ET | ||||
| 16 | 1381681013 | 2.43 | 2.94 | |
| Bearing pin RD 25X124 BOTTOM | ||||
| 18 | 1485051518 | 35.72 | 43.22 | |
| STAR KNOB NUT M 10 / RD 63 GALVANIZED | ||||
| 21 | 7000074122 | 3.20 | 3.87 | |
| FUSE LEVER ET | ||||
| 22 | 1382666301 | 3.20 | 3.87 | |
| No longer available, no replacement | ||||
| 23 | 1485400172 | |||
| Ball bearing 12X28X8 6001-2Z | ||||
| 24 | 7100086764 | 9.36 | 11.33 | |
| TENSION ROLLER RD 35X28 | ||||
| 25 | 1485400180 | 29.97 | 36.26 | |
| No information available, not orderable | ||||
| 27 | 6442084643 | |||
| Brush Bar | ||||
| 28 | 9132081414 | 9.36 | 11.33 | |
| SQUARE BOLT WITH SQUARE INSERT M 8X100 COAT | ||||
| 29 | 6110082701 | 1.79 | 2.17 | |
| Hexagon nut M 20X1,5 verz. | ||||
| 30 | 6200046208 | 1.79 | 2.17 | |
| THREE ROLLER GUIDES BAS 317 PRECISION | ||||
| 33 | 1009719861 | 46.99 | 56.86 | |
| Lower Band Saw Roller | ||||
| 34 | 1380421352 | 126.62 | 153.21 | |
| V-GROOVE 4 PJ 610 | ||||
| 35 | 7233190017 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 36 | 1009719985 | |||
| No longer available, no replacement | ||||
| 40 | 1009719802 | |||
| THREE ROLLER GUIDES BAS 317 PRECISION | ||||
| 41 | 1009719810 | 70.83 | 85.70 | |
| WIRE GUIDE BAS 317 PRECISION | ||||
| 42 | 1009719829 | 10.82 | 13.09 | |
| BEARING SLEEVE BAS 317 PRECISION | ||||
| 43 | 1009719837 | 24.26 | 29.35 | |
| GELEIDINGSPROFIEL BAS 317 PRECISION | ||||
| 44 | 1009719896 | 46.99 | 56.86 | |
| Zeskantschroef | ||||
| 45 | 141113330 | 1.79 | 2.17 | |
| No longer available, no replacement | ||||
| 47 | 6150421509 | |||
| No longer available, no replacement | ||||
| 49 | 1381404400 | |||
| No information available, not orderable | ||||
| 50 | 1380421212 | |||
| TABLE ADJUSTMENT BAS 317 PRECISION | ||||
| 51 | 1009719942 | 77.08 | 93.27 | |
| No longer available, no replacement | ||||
| 52 | 1009719918 | |||
| PARALLELGELEIDER BAS 317 PRECISION | ||||
| 53 | 1009719900 | 64.44 | 77.97 | |
| Box for shavings ET | ||||
| 60 | 1381666324 | 41.32 | 50.00 | |
| No information available, not orderable | ||||
| 61 | 1009719969 | |||
| STAR KNOB NUT M 8 (DIN 934) GALVANIZED | ||||
| 62 | 7000028937 | 2.43 | 2.94 | |
| ADJUSTING DEVICE BAS 317 | ||||
| 63 | 1009719772 | 10.82 | 13.09 | |
| RAPID-RELEASE BAS 317 | ||||
| 64 | 1009719764 | 12.19 | 14.75 | |
| RAPID-RELEASE LEVER BAS 317 | ||||
| 65 | 1009719756 | 7.58 | 9.17 | |
| HAAKSE GELEIDER BAS 317 PRECISION | ||||
| 66 | 1009719926 | 46.99 | 56.86 | |
| BAS-MOTOR 0,74 DN 3X230/400 V | ||||
| 68 | 1009003793 | 281.70 | 340.86 | |
| 2-stage V-groove pulley 4JX62 / RDA 62X47 | ||||
| 69 | 7240419429 | 64.44 | 77.97 | |
| Toothed lock washer | ||||
| 70 | 141150410 | 1.79 | 2.17 | |
| Hexagonal screw | ||||
| 71 | 6103001127 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 72 | 1009719799 | |||
| Fan housing BAS 316 | ||||
| 75 | 1382705951 | 10.82 | 13.09 | |
