Here you will find all available parts and drawings of the 'Metabo 19008000 ( BAS261PRECISION )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

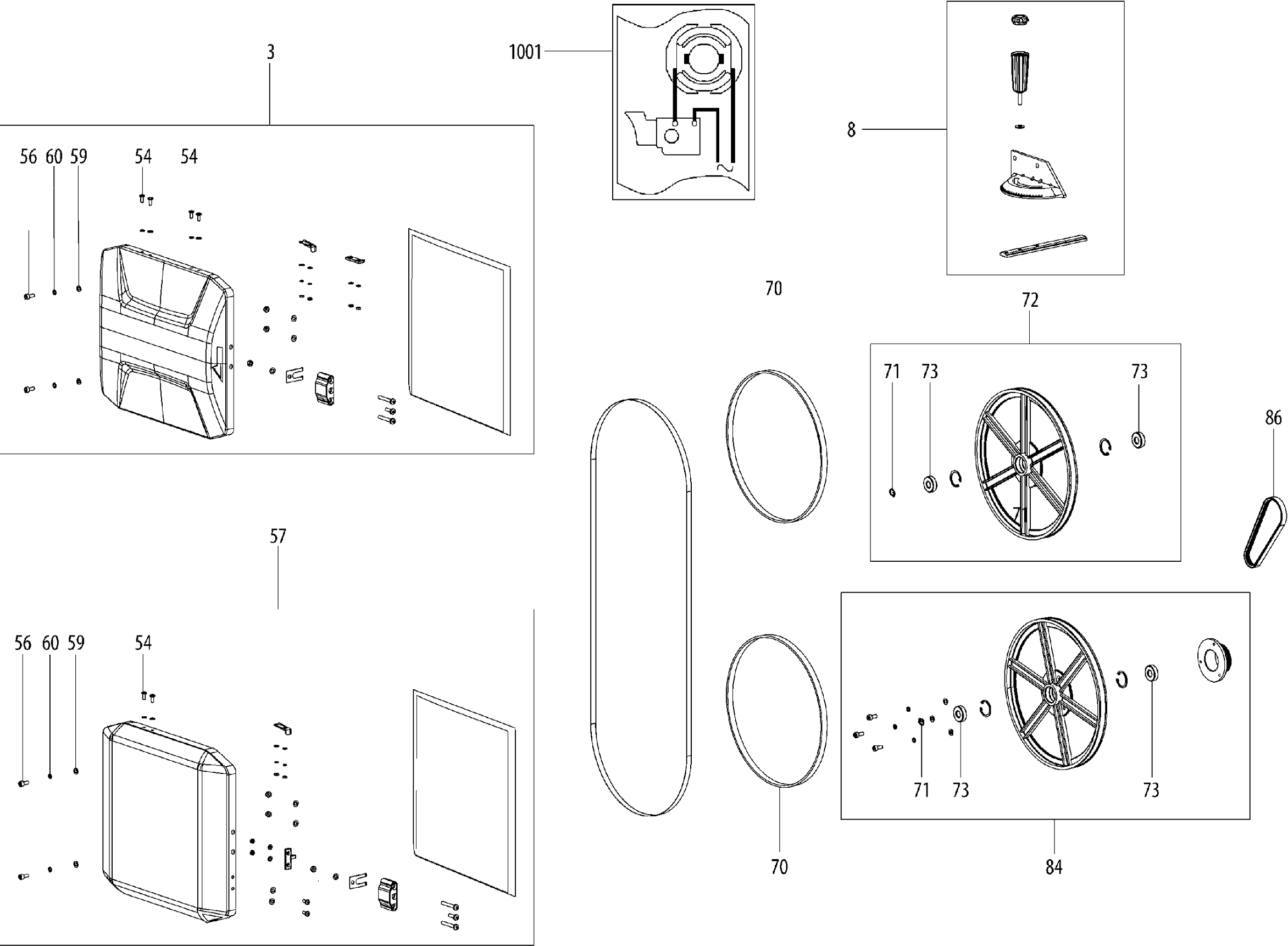

Technical drawing of model Metabo 19008000 ( BAS261PRECISION )
Spare parts list of model Metabo 19008000 ( BAS261PRECISION )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Typeplaatje | ||||
| 1 | 338067090 | 1.55 | 1.88 | |
| Door compl. | ||||
| 3 | 316095890 | 32.27 | 39.05 | |
| Kogellager,10x22x6 | ||||
| 4 | 176112160 | 12.23 | 14.80 | |
| Cover cap | ||||
| 5 | 343444110 | 1.67 | 2.02 | |
| Complete roll guide | ||||
| 6 | 316095900 | 11.74 | 14.21 | |
| Schakelaar cpl. | ||||
| 7 | 316096030 | 11.74 | 14.21 | |
| Haakse geleider compl. | ||||
| 8 | 316095910 | 7.22 | 8.74 | |
| Push stick | ||||
| 9 | 343433180 | 3.71 | 4.49 | |
| Spaninrichting compl. | ||||
| 12 | 316095920 | 18.80 | 22.75 | |
| Guard button comp. | ||||
| 19 | 316095120 | 5.18 | 6.27 | |
| Kondensator 12uF | ||||
| 23 | 343255040 | 5.18 | 6.27 | |
| Motor compl.,230V | ||||
| 24 | 317004840 | 201.99 | 244.41 | |
| Table insert | ||||
| 26 | 343444200 | 1.55 | 1.88 | |
| Tafelplaat cpl. | ||||
| 27 | 316095940 | 187.73 | 227.15 | |
| Schakelaar | ||||
| 33 | 343411480 | 13.48 | 16.31 | |
| Complete brush holder | ||||
| 36 | 316095960 | 2.28 | 2.76 | |
| Complete guide roller | ||||
| 38 | 316095970 | 16.25 | 19.66 | |
| TABLE ADJUSTMENT | ||||
| 42 | 315419810 | 11.74 | 14.21 | |
| RUBBER CABLE WITH PLUG | ||||
| 43 | 1009621039 | 43.15 | 52.21 | |
| Cilinderkopschroef | ||||
| 44 | 141113850 | 1.67 | 2.02 | |
| Zeskantschroef | ||||
| 45 | 141113290 | 1.55 | 1.88 | |
| Table adjustment | ||||
| 46 | 315419800 | 10.38 | 12.56 | |
| Afzuigadapter | ||||
| 48 | 343444180 | 4.51 | 5.46 | |
| Washer | ||||
| 49 | 141150130 | 1.55 | 1.88 | |
| Lock washer | ||||
| 50 | 141155240 | 1.67 | 2.02 | |
| V-snaarschijf cpl. | ||||
| 51 | 316096040 | 3.71 | 4.49 | |
| Zeskante moer | ||||
| 52 | 141130100 | 1.55 | 1.88 | |
| Taper Pin with Morse Taper | ||||
| 53 | 141124460 | 1.55 | 1.88 | |
| Place screw M.crosshead | ||||
| 54 | 141124560 | 1.55 | 1.88 | |
| GELEIDINGSPROFIEL cpl. | ||||
| 55 | 316095980 | 13.48 | 16.31 | |
| Cilinderkopschroef | ||||
| 56 | 141113680 | 1.67 | 2.02 | |
| Deur compl. | ||||
| 57 | 316095990 | 26.95 | 32.61 | |
| LED Lamp cpl. | ||||
| 58 | 316096060 | 21.64 | 26.18 | |
| Washer | ||||
| 59 | 141190480 | 1.55 | 1.88 | |
| Spring washer | ||||
| 60 | 141150270 | 1.55 | 1.88 | |
| Parallelgeleider compl. | ||||
| 61 | 316065060 | 37.65 | 45.56 | |
| Band Saw Wheel Band | ||||
| 70 | 344101940 | 12.23 | 14.80 | |
| Retaining ring | ||||
| 71 | 141180040 | 1.55 | 1.88 | |
| Upper belt saw roller | ||||
| 72 | 316064160 | 32.27 | 39.05 | |
| KOGELLAGER | ||||
| 73 | 143115740 | 4.51 | 5.46 | |
| No longer available, no replacement | ||||
| 74 | 141110270 | |||
| LAGERBOUT ONDER | ||||
| 75 | 341519700 | 5.18 | 6.27 | |
| HOOGTEVERSTELLING COMPLEET | ||||
| 76 | 316096050 | 26.95 | 32.61 | |
| Beschermplaat | ||||
| 78 | 339148760 | 1.55 | 1.88 | |
| Vleugelschroef | ||||
| 81 | 343444230 | 1.55 | 1.88 | |
| Lintzaagwiel boven | ||||
| 84 | 316096070 | 43.15 | 52.21 | |
| Kabel compl. | ||||
| 85 | 344530970 | 18.80 | 22.75 | |
| Aandrijfriem | ||||
| 86 | 344260420 | 12.23 | 14.80 | |
| Support | ||||
| 87 | 315419870 | 3.02 | 3.65 | |
| Beschermzool | ||||
| 89 | 339148780 | 1.67 | 2.02 | |
| Door locking system | ||||
| 96 | 341166550 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 1001 | 338510170 | |||
