Here you will find all available parts and drawings of the 'Metabo 0090025100-11 ( BAS260SWIFT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

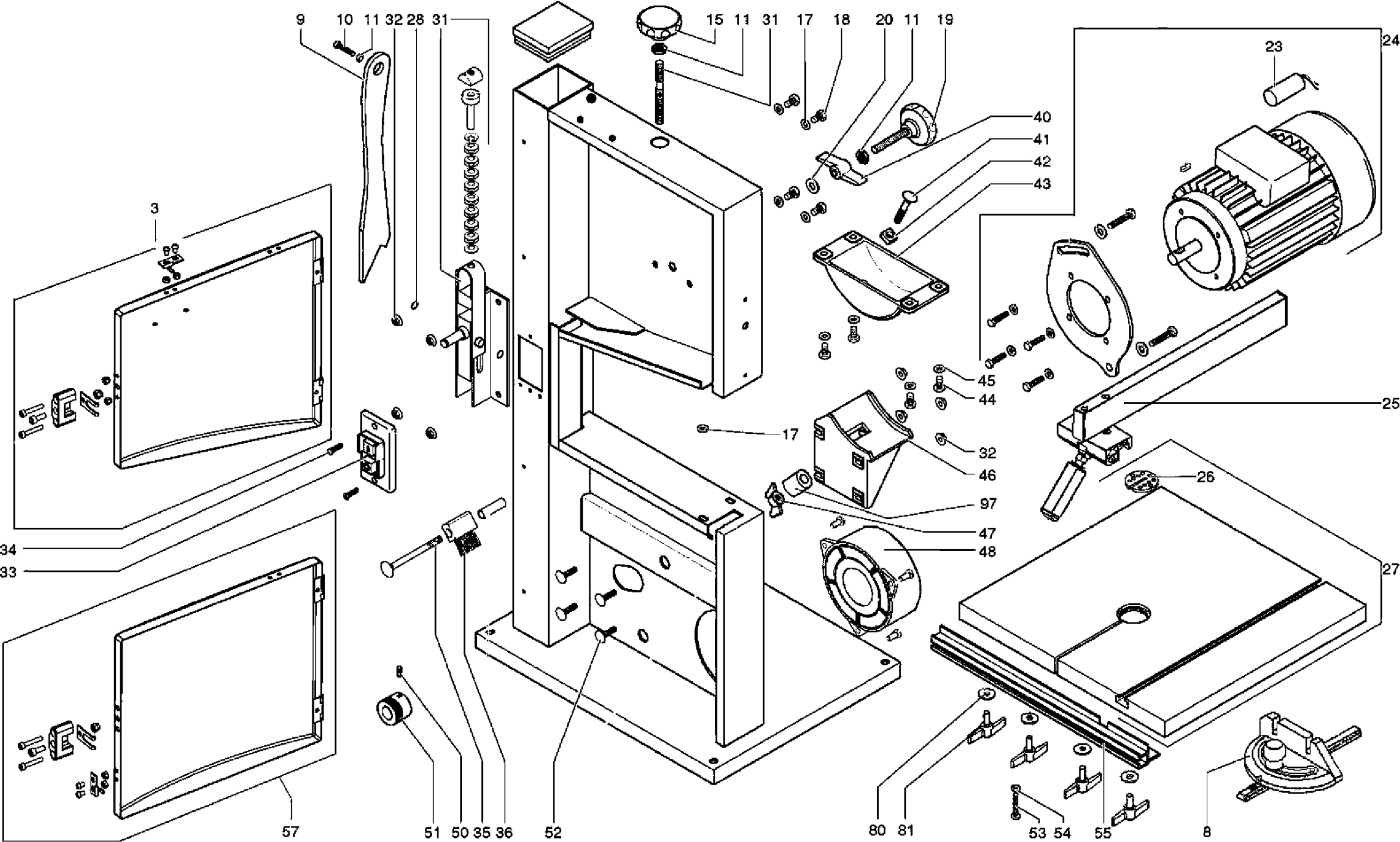

Technical drawing of model Metabo 0090025100-11 ( BAS260SWIFT )

Spare parts list of model Metabo 0090025100-11 ( BAS260SWIFT )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Upper Door BAS 260 SWIFT ET
3 1009720665 26.95 32.61
WIRE GUIDE BAS 260 SWIFT
4 1009720606 7.22 8.74
No information available, not orderable
6 1009720592
SAFETY SWITCH WITH CABLE BAS 317
7 1009719748 7.22 8.74
Right Angle Guide BAS 260 SWIFT ET
8 1009720657 26.95 32.61
Push stick
9 343433180 3.71 4.49
Zeskantschroef
10 141110320 1.67 2.02
Zeskante moer
11 141131010 1.55 1.88
STAR KNOB NUT M 8 (DIN 934) GALVANIZED
15 7000028937 2.28 2.76
Washer
17 141151940 1.55 1.88
Hexagonal screw
18 6103001127 1.55 1.88
STAR KNOB SCREW M 8X40 RD 35 GALVANIZED
19 7001087619 4.51 5.46
Washer
20 141151340 1.55 1.88
Hexagonal screw
21 6103001178 1.55 1.88
Kondensator 12uF
23 343255040 5.18 6.27
No information available, not orderable
24 1009681090
Parallel Guide BAS 260 SWIFT ET
25 1009720649 32.27 39.05
No longer available, no replacement
26 1381680920
No information available, not orderable
27 315419100
Retaining ring
28 141180020 1.55 1.88
FAN BLADE WITH FANH BAS 260
30 1009726507 7.22 8.74
Spaninrichting compl.
31 316095920 18.80 22.75
Flange nut
32 6209114230 1.55 1.88
SWITCH ET
33 1009680833 13.48 16.31
COUNTERSUNK SCREW M.CROSS M 4X10 VE
34 6131001540 1.55 1.88
No longer available, no replacement
35 6110000667
Brush Bar
36 9132081414 8.89 10.76
No information available, not orderable
38 1009720614
BEARING SLEEVE BAS 260 SWIFT ET
39 1009720622 5.87 7.10
KNOB
40 7005135529 1.67 2.02
SLOT BOLT WITH SQUARE INSERT M 6X50 VERZ
41 6110052292 1.55 1.88
SLIDING SEGMENT ET
42 1381680947 7.22 8.74
TABLE ADJUSTMENT
43 315419810 11.74 14.21
Zeskantschroef
44 141113290 1.55 1.88
Toothed lock washer
45 141150410 1.67 2.02
Table adjustment
46 315419800 10.38 12.56
STAR KNOB NUT RD40/M 6 (DIN 934) GALVANIZED
47 7000025458 1.67 2.02
No longer available, no replacement
48 1009719853
Pin Tap with Morse Taper M 6X12 VERZ.
50 6161050910 1.55 1.88
V-snaarschijf cpl.
51 316096040 3.71 4.49
Slotted bolt with square insert
52 6110000594 1.55 1.88
Zeskantschroef
53 141110290 1.67 2.02
Zeskante moer
54 141130100 1.55 1.88
Guide Profile BAS 260 SWIFT ET
55 1009720630 24.23 29.32
DOOR UNDER BAS 260 SWIFT ET
57 1009720673 26.95 32.61
Band Saw Wheel Band
70 344101940 12.23 14.80
Retaining ring
71 141180040 1.55 1.88
Upper belt saw roller
72 316064160 32.27 39.05
KOGELLAGER
73 143115740 4.51 5.46
No longer available, no replacement
74 141110270
No information available, not orderable
75 1385681085
SLIDE TUBE PROFILE ET
76 1383680960 24.23 29.32
BEARING SLEEVE BAS 260 SWIFT ET
77 1009720681 16.25 19.66
BAND SAW PROTECTION BAS 260 SWIFT
78 1009722285 5.87 7.10
No information available, not orderable
80 6305002486
No longer available, no replacement
81 6150421509
Upper belt saw roller
84 316064160 32.27 39.05
Aandrijfriem
86 344260420 12.23 14.80
Hexagonal flat nut
87 6205088367 1.55 1.88
No information available, not orderable
89 1381680998
GUIDE PIECE ET
90 1381681021 1.67 2.02
No information available, not orderable
91 6172065544
AXLE WITH GEAR ET
92 1388681035 1.67 2.02
STAR KNOB HEIGHT ADJUSTMENT ET
93 1381681013 1.67 2.02
Vergrendeling cpl.
96 316061740 10.38 12.56
SPACER SLEEVE RD 15/6X18
97 6442025779 1.55 1.88
No information available, not orderable
98 338063890
