Here you will find all available parts and drawings of the 'Metabo 0090025100-10 (BAS260SWIFT)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

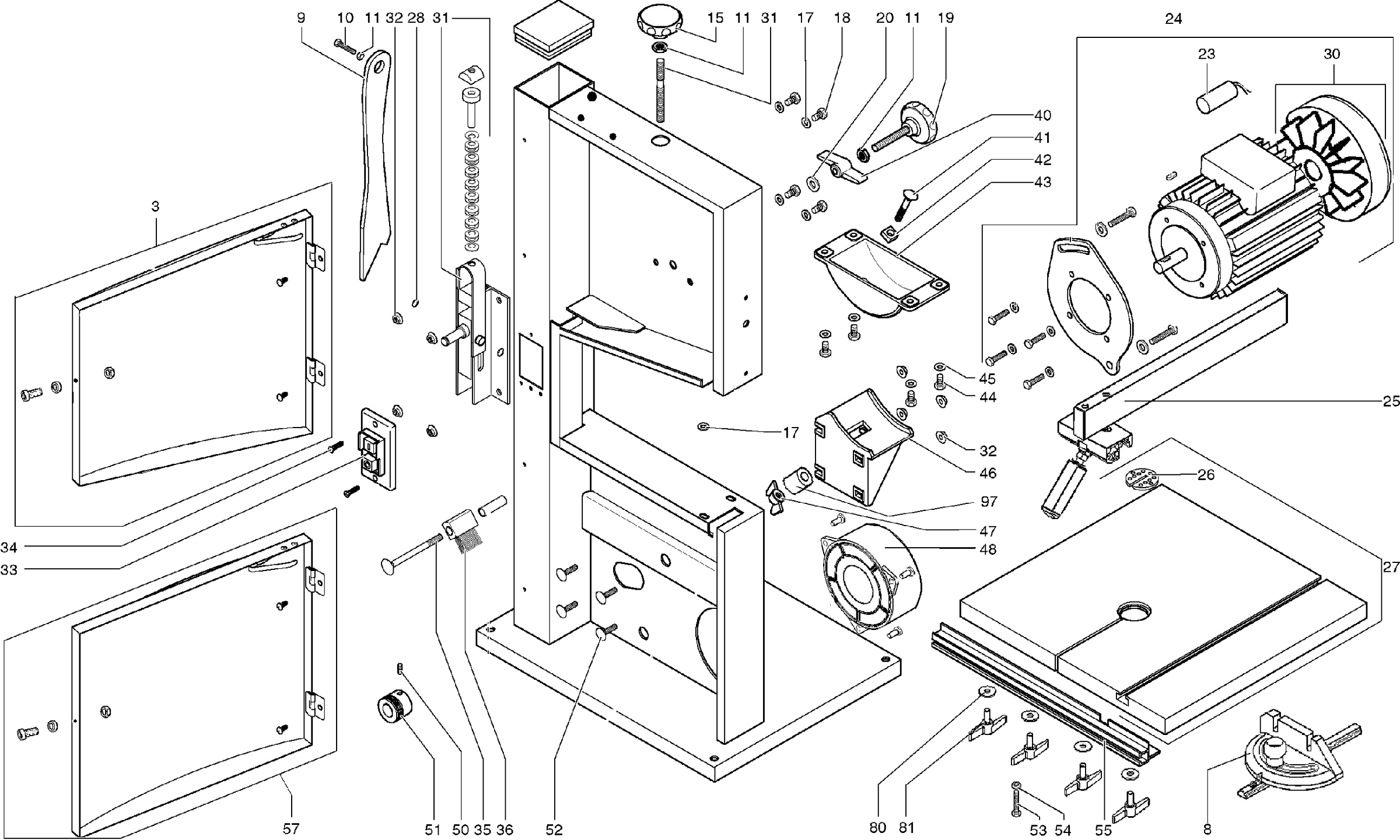

Technical drawing of model Metabo 0090025100-10 (BAS260SWIFT)
Spare parts list of model Metabo 0090025100-10 (BAS260SWIFT)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Upper Door BAS 260 SWIFT ET | ||||
| 3 | 1009720665 | 26.95 | 32.61 | |
| WIRE GUIDE BAS 260 SWIFT | ||||
| 4 | 1009720606 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 6 | 1009720592 | |||
| SAFETY SWITCH WITH CABLE BAS 317 | ||||
| 7 | 1009719748 | 7.22 | 8.74 | |
| Right Angle Guide BAS 260 SWIFT ET | ||||
| 8 | 1009720657 | 26.95 | 32.61 | |
| Push stick | ||||
| 9 | 343433180 | 3.71 | 4.49 | |
| Zeskantschroef | ||||
| 10 | 141110320 | 1.68 | 2.03 | |
| Zeskante moer | ||||
| 11 | 141131010 | 1.56 | 1.89 | |
| STAR KNOB NUT M 8 (DIN 934) GALVANIZED | ||||
| 15 | 7000028937 | 2.28 | 2.76 | |
| Washer | ||||
| 17 | 141151940 | 1.56 | 1.89 | |
| Hexagonal screw | ||||
| 18 | 6103001127 | 1.56 | 1.89 | |
| STAR KNOB SCREW M 8X40 RD 35 GALVANIZED | ||||
| 19 | 7001087619 | 4.51 | 5.46 | |
| Washer | ||||
| 20 | 141151340 | 1.56 | 1.89 | |
| Hexagonal screw | ||||
| 21 | 6103001178 | 1.56 | 1.89 | |
| Kondensator 12uF | ||||
| 23 | 343255040 | 5.18 | 6.27 | |
| No information available, not orderable | ||||
| 24 | 1009681090 | |||
| Parallel Guide BAS 260 SWIFT ET | ||||
| 25 | 1009720649 | 32.27 | 39.05 | |
| No longer available, no replacement | ||||
| 26 | 1381680920 | |||
| Band Saw Table 340X345 ET | ||||
| 27 | 1380680935 | 113.82 | 137.72 | |
| Retaining ring | ||||
| 28 | 141180020 | 1.56 | 1.89 | |
| FAN BLADE WITH FANH BAS 260 | ||||
| 30 | 1009726507 | 7.22 | 8.74 | |
| Spaninrichting compl. | ||||
| 31 | 316095920 | 18.80 | 22.75 | |
| Flange nut | ||||
| 32 | 6209114230 | 1.56 | 1.89 | |
| SWITCH ET | ||||
| 33 | 1009680833 | 13.48 | 16.31 | |
| COUNTERSUNK SCREW M.CROSS M 4X10 VE | ||||
| 34 | 6131001540 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 35 | 6110000667 | |||
| Brush Bar | ||||
| 36 | 9132081414 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 38 | 1009720614 | |||
| BEARING SLEEVE BAS 260 SWIFT ET | ||||
| 39 | 1009720622 | 5.87 | 7.10 | |
| KNOB | ||||
| 40 | 7005135529 | 1.67 | 2.02 | |
| SLOT BOLT WITH SQUARE INSERT M 6X50 VERZ | ||||
| 41 | 6110052292 | 1.56 | 1.89 | |
| SLIDING SEGMENT ET | ||||
| 42 | 1381680947 | 7.22 | 8.74 | |
| TABLE ADJUSTMENT | ||||
| 43 | 315419810 | 11.74 | 14.21 | |
| Zeskantschroef | ||||
| 44 | 141113290 | 1.56 | 1.89 | |
| Toothed lock washer | ||||
| 45 | 141150410 | 1.68 | 2.03 | |
| Table adjustment | ||||
| 46 | 315419800 | 10.38 | 12.56 | |
| STAR KNOB NUT RD40/M 6 (DIN 934) GALVANIZED | ||||
| 47 | 7000025458 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 48 | 1009719853 | |||
| Pin Tap with Morse Taper M 6X12 VERZ. | ||||
| 50 | 6161050910 | 1.56 | 1.89 | |
| V-snaarschijf cpl. | ||||
| 51 | 316096040 | 3.71 | 4.49 | |
| Slotted bolt with square insert | ||||
| 52 | 6110000594 | 1.56 | 1.89 | |
| Zeskantschroef | ||||
| 53 | 141110290 | 1.68 | 2.03 | |
| Zeskante moer | ||||
| 54 | 141130100 | 1.56 | 1.89 | |
| Guide Profile BAS 260 SWIFT ET | ||||
| 55 | 1009720630 | 24.23 | 29.32 | |
| DOOR UNDER BAS 260 SWIFT ET | ||||
| 57 | 1009720673 | 26.95 | 32.61 | |
| Band Saw Wheel Band | ||||
| 70 | 344101940 | 12.23 | 14.80 | |
| Retaining ring | ||||
| 71 | 141180040 | 1.56 | 1.89 | |
| Upper belt saw roller | ||||
| 72 | 316064160 | 32.27 | 39.05 | |
| KOGELLAGER | ||||
| 73 | 143115740 | 4.51 | 5.46 | |
| No longer available, no replacement | ||||
| 74 | 141110270 | |||
| No information available, not orderable | ||||
| 75 | 1385681085 | |||
| SLIDE TUBE PROFILE ET | ||||
| 76 | 1383680960 | 24.23 | 29.32 | |
| BEARING SLEEVE BAS 260 SWIFT ET | ||||
| 77 | 1009720681 | 16.25 | 19.66 | |
| BAND SAW PROTECTION BAS 260 SWIFT | ||||
| 78 | 1009722285 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 80 | 6305002486 | |||
| No longer available, no replacement | ||||
| 81 | 6150421509 | |||
| Upper belt saw roller | ||||
| 84 | 316064160 | 32.27 | 39.05 | |
| Aandrijfriem | ||||
| 86 | 344260420 | 12.23 | 14.80 | |
| Hexagonal flat nut | ||||
| 87 | 6205088367 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 89 | 1381680998 | |||
| GUIDE PIECE ET | ||||
| 90 | 1381681021 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 91 | 6172065544 | |||
| AXLE WITH GEAR ET | ||||
| 92 | 1388681035 | 1.68 | 2.03 | |
| STAR KNOB HEIGHT ADJUSTMENT ET | ||||
| 93 | 1381681013 | 1.68 | 2.03 | |
| DOORKNOB BAS 317 PRECISION | ||||
| 96 | 1009719845 | 3.71 | 4.49 | |
| SPACER SLEEVE RD 15/6X18 | ||||
| 97 | 6442025779 | 1.56 | 1.89 | |
