Here you will find all available parts and drawings of the 'Metabo 00531001 (BE530R+L)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

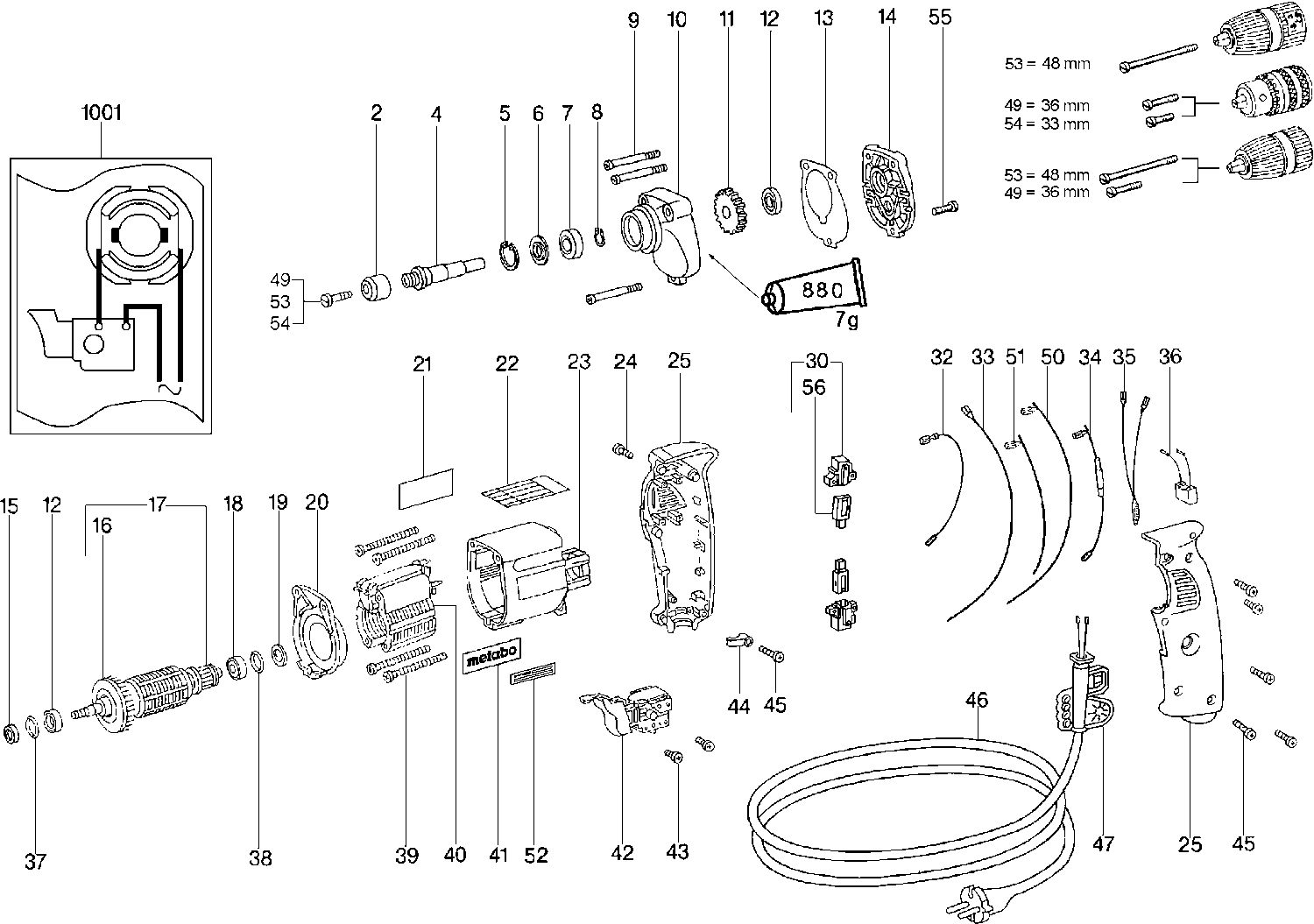

Technical drawing of model Metabo 00531001 (BE530R+L)
Spare parts list of model Metabo 00531001 (BE530R+L)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 2 | 631281000 | |||
| No information available, not orderable | ||||
| 4 | 341603290 | |||
| Retaining ring | ||||
| 5 | 141181560 | 1.67 | 2.02 | |
| Cover plate | ||||
| 6 | 343362170 | 9.36 | 11.33 | |
| Kogellager 12x28x 8 | ||||
| 7 | 143111440 | 24.26 | 29.35 | |
| RETAINING RING | ||||
| 8 | 141180060 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 9 | 341702190 | |||
| No longer available, no replacement | ||||
| 10 | 315103780 | |||
| No information available, not orderable | ||||
| 11 | 340011880 | |||
| No information available, not orderable | ||||
| 12 | 143113400 | |||
| No information available, not orderable | ||||
| 13 | 339210740 | |||
| No information available, not orderable | ||||
| 14 | 315201840 | |||
| No information available, not orderable | ||||
| 15 | 343357800 | |||
| Waaier compl. | ||||
| 16 | 330001060 | 4.78 | 5.78 | |
| No information available, not orderable | ||||
| 17 | 310007070 | |||
| Kogellager 6x19x 6 | ||||
| 18 | 143115660 | 2.43 | 2.94 | |
| Washer | ||||
| 19 | 141153400 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 20 | 343361790 | |||
| No information available, not orderable | ||||
| 21 | 338028760 | |||
| No information available, not orderable | ||||
| 22 | 338110740 | |||
| Motor housing | ||||
| 23 | 315012320 | 29.97 | 36.26 | |
| Screw | ||||
| 24 | 341702050 | 1.67 | 2.02 | |
| Pistol grip | ||||
| 25 | 343362360 | 18.28 | 22.12 | |
| Carbon brush holder compl. | ||||
| 30 | 316022880 | 13.93 | 16.86 | |
| Strand cpl. AWG18SW | ||||
| 32 | 344492790 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 33 | 344488770 | |||
| No information available, not orderable | ||||
| 34 | 344490030 | |||
| No information available, not orderable | ||||
| 35 | 344493390 | |||
| No longer available, no replacement | ||||
| 36 | 343253630 | |||
| O-ring | ||||
| 37 | 143192570 | 1.79 | 2.17 | |
| O-ring | ||||
| 38 | 143192430 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 39 | 141119420 | |||
| No information available, not orderable | ||||
| 40 | 311006730 | |||
| M-label 56x25 | ||||
| 41 | 338122370 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 42 | 343406710 | |||
| Fillister head screw | ||||
| 43 | 141116970 | 1.79 | 2.17 | |
| Cable clip | ||||
| 44 | 343362490 | 1.79 | 2.17 | |
| Screw | ||||
| 45 | 141120340 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 46 | 344493180 | 24.26 | 29.35 | |
| Kabeldoorvoer | ||||
| 47 | 344100590 | 2.43 | 2.94 | |
| Cilinderkopschroef | ||||
| 49 | 341701940 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 50 | 399999990 | |||
| No information available, not orderable | ||||
| 51 | 399999990 | |||
| No information available, not orderable | ||||
| 52 | 399999990 | |||
| Cilinderkopschroef | ||||
| 53 | 341702790 | 3.20 | 3.87 | |
| Cilinderkopschroef | ||||
| 54 | 341700990 | 3.20 | 3.87 | |
| Self-tap. fill. h. screw | ||||
| 55 | 141116840 | 1.67 | 2.02 | |
| Brush set with holder | ||||
| 56 | 316033730 | 18.28 | 22.12 | |
| Grease Tube 100 gr. GF 001 | ||||
| 880 | 344130270 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 1001 | 338501730 | |||
