Here you will find all available parts and drawings of the 'Metabo 00531000 ( BE530R+L )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

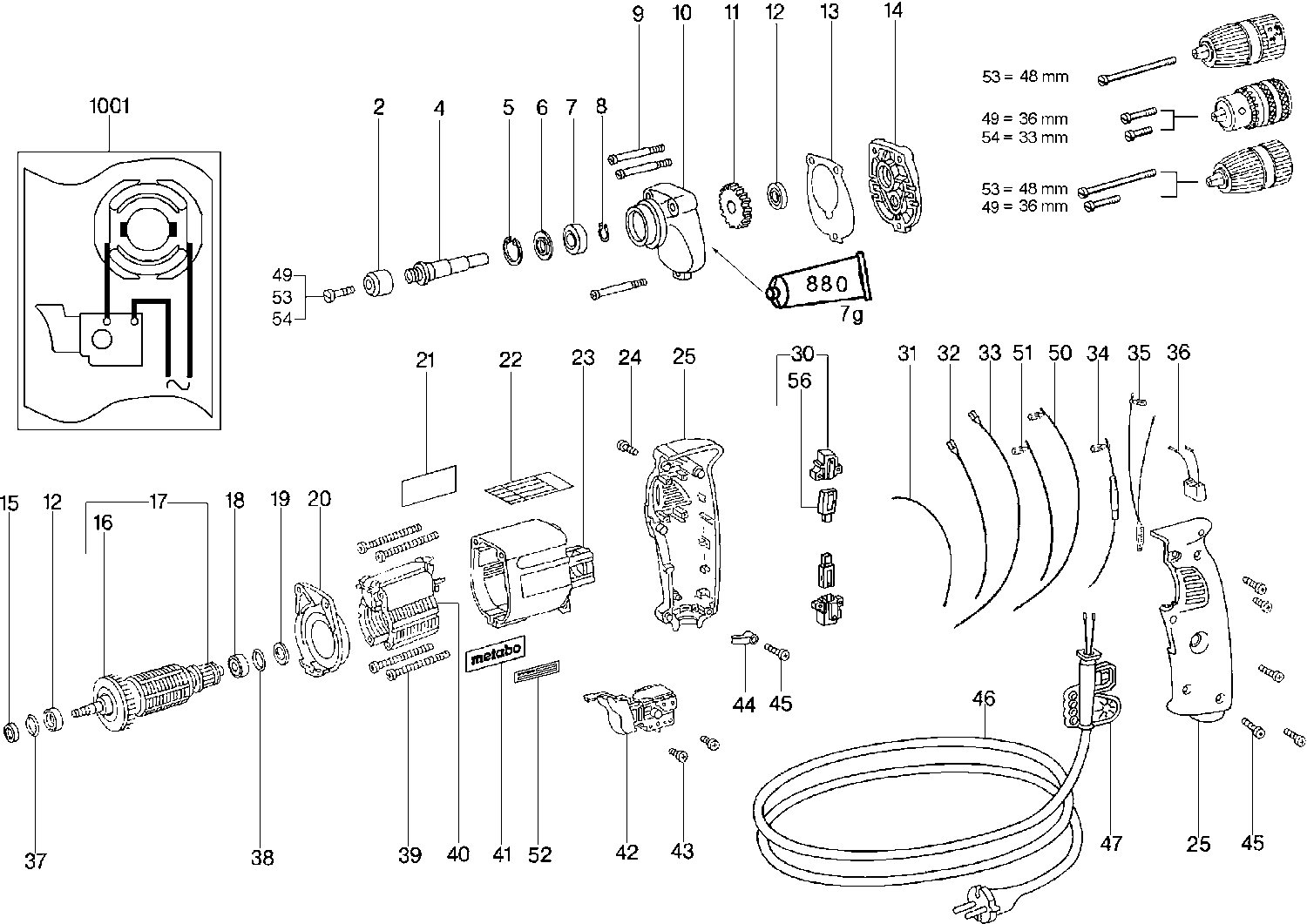

Technical drawing of model Metabo 00531000 ( BE530R+L )

Spare parts list of model Metabo 00531000 ( BE530R+L )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Reserve bit-spanbus
2 631281000 4.66 5.64
No information available, not orderable
4 341603290
Retaining ring
5 141181560 1.55 1.88
Cover plate
6 343362170 8.89 10.76
Kogellager 12x28x 8
7 143111440 21.64 26.18
RETAINING RING
8 141180060 1.55 1.88
No information available, not orderable
9 341702190
No longer available, no replacement
10 315103780
No information available, not orderable
11 340011880
No information available, not orderable
12 143113400
No information available, not orderable
13 339210740
No information available, not orderable
14 315201840
No information available, not orderable
15 343357800
Waaier compl.
16 330001060 4.51 5.46
No information available, not orderable
17 310007070
Kogellager 6x19x 6
18 143115660 2.28 2.76
Washer
19 141153400 1.67 2.02
No information available, not orderable
20 343361790
No information available, not orderable
21 338028760
No information available, not orderable
22 338109040
Motor housing
23 315012320 26.95 32.61
Screw
24 341702050 1.55 1.88
Pistol grip
25 343362360 16.25 19.66
Carbon brush holder compl.
30 316022880 12.23 14.80
No information available, not orderable
31 344489150
No information available, not orderable
32 344491770
No information available, not orderable
33 344488770
No information available, not orderable
34 344489930
No information available, not orderable
35 343253750
No longer available, no replacement
36 343253630
O-ring
37 143192570 1.67 2.02
O-ring
38 143192430 1.67 2.02
No information available, not orderable
39 141119420
No information available, not orderable
40 311006730
M-label 56x25
41 338122370 1.67 2.02
No information available, not orderable
42 343405560
Fillister head screw
43 141116970 1.67 2.02
Cable clip
44 343362490 1.67 2.02
Screw
45 141120340 1.55 1.88
No information available, not orderable
46 344485250
Kabeldoorvoer
47 344100590 2.28 2.76
Cilinderkopschroef
49 341701940 1.67 2.02
No information available, not orderable
50 399999990
No information available, not orderable
51 399999990
No information available, not orderable
52 399999990
Cilinderkopschroef
53 341702790 3.02 3.65
Cilinderkopschroef
54 341700990 3.02 3.65
Brush set with holder
56 316033730 16.25 19.66
Grease Tube 100 gr. GF 001
880 344130270 11.74 14.21
No information available, not orderable
1001 338501730
