Here you will find all available parts and drawings of the 'Metabo 00255001 ( BE250R+L )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

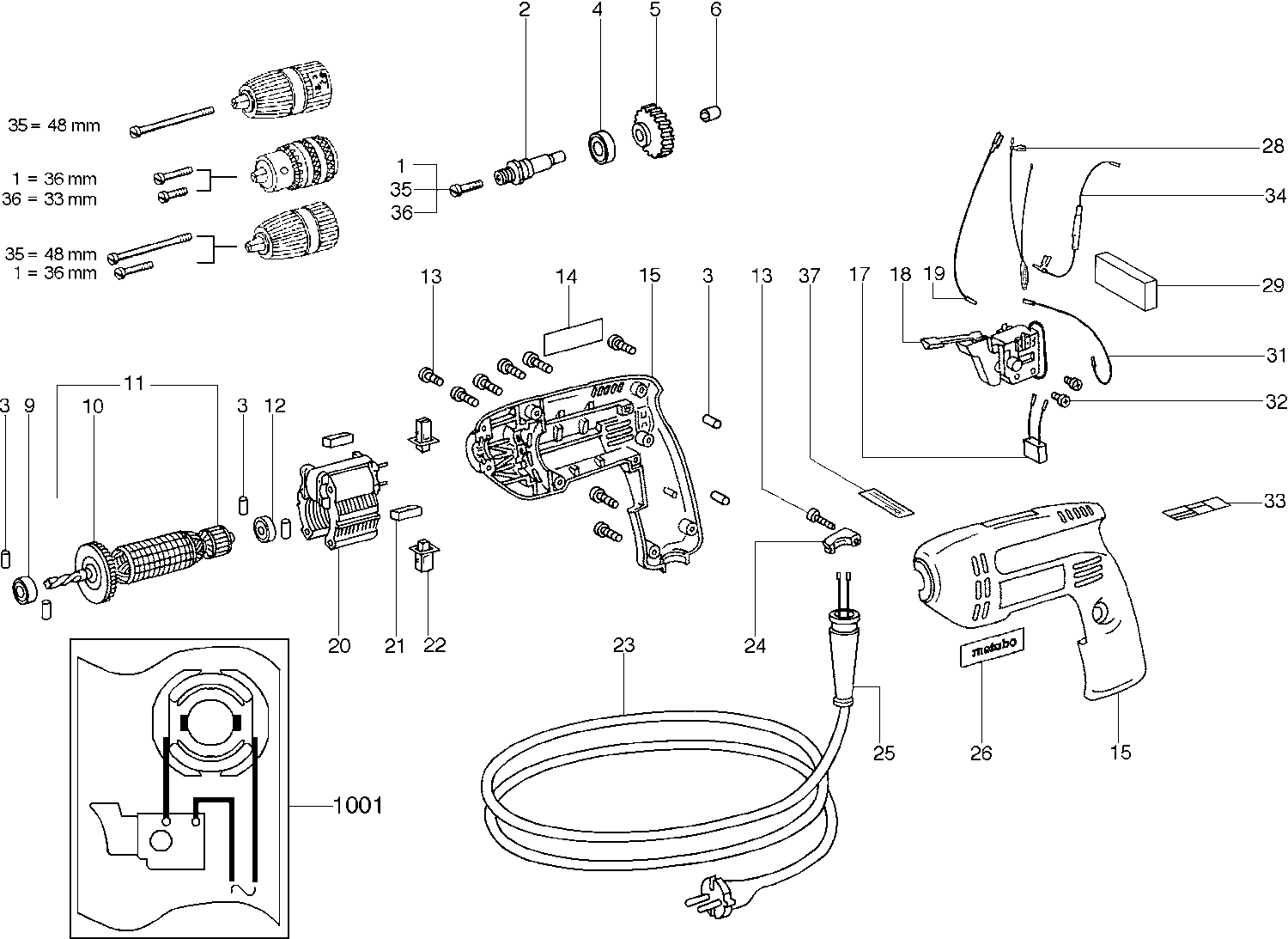

Technical drawing of model Metabo 00255001 ( BE250R+L )
Spare parts list of model Metabo 00255001 ( BE250R+L )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341701940 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 2 | 341603440 | |||
| Rubber stop | ||||
| 3 | 344092220 | 1.55 | 1.88 | |
| Kogellager 12x28x 8 | ||||
| 4 | 143115640 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 5 | 340003110 | |||
| Naaldlager | ||||
| 6 | 143113930 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 9 | 143113400 | |||
| Fan | ||||
| 10 | 330000850 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 11 | 310007510 | |||
| Kogellager 6x19x 6 | ||||
| 12 | 143115660 | 2.28 | 2.76 | |
| Self-tap fill h screw | ||||
| 13 | 141116020 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 14 | 338034730 | |||
| No information available, not orderable | ||||
| 15 | 343371560 | |||
| Condensator | ||||
| 17 | 343253780 | 4.51 | 5.46 | |
| No information available, not orderable | ||||
| 18 | 343405980 | |||
| Strand cpl. Awg18sw | ||||
| 19 | 344489950 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 20 | 311009430 | |||
| Rubber stop | ||||
| 21 | 344093350 | 1.55 | 1.88 | |
| Koolborstel set | ||||
| 22 | 316033860 | 10.38 | 12.56 | |
| Kabel m. CEE-stekker | ||||
| 23 | 344493180 | 21.64 | 26.18 | |
| Cable clip | ||||
| 24 | 343362490 | 1.67 | 2.02 | |
| Cable sleeve | ||||
| 25 | 344101080 | 1.55 | 1.88 | |
| No longer available, no replacement | ||||
| 26 | 338122160 | |||
| No information available, not orderable | ||||
| 28 | 343253760 | |||
| Inleg licht ontvlambaar | ||||
| 29 | 344103000 | 1.55 | 1.88 | |
| Verbindingsdraad compl. | ||||
| 31 | 344492810 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 32 | 141116970 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 33 | 338110720 | |||
| No information available, not orderable | ||||
| 34 | 344489780 | |||
| Cilinderkopschroef | ||||
| 35 | 341702790 | 3.02 | 3.65 | |
| Cilinderkopschroef | ||||
| 36 | 341700990 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 37 | 399999990 | |||
| No information available, not orderable | ||||
| 1001 | 338500300 | |||
