Here you will find all available parts and drawings of the 'Metabo 02059000 (ASR35HACP)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

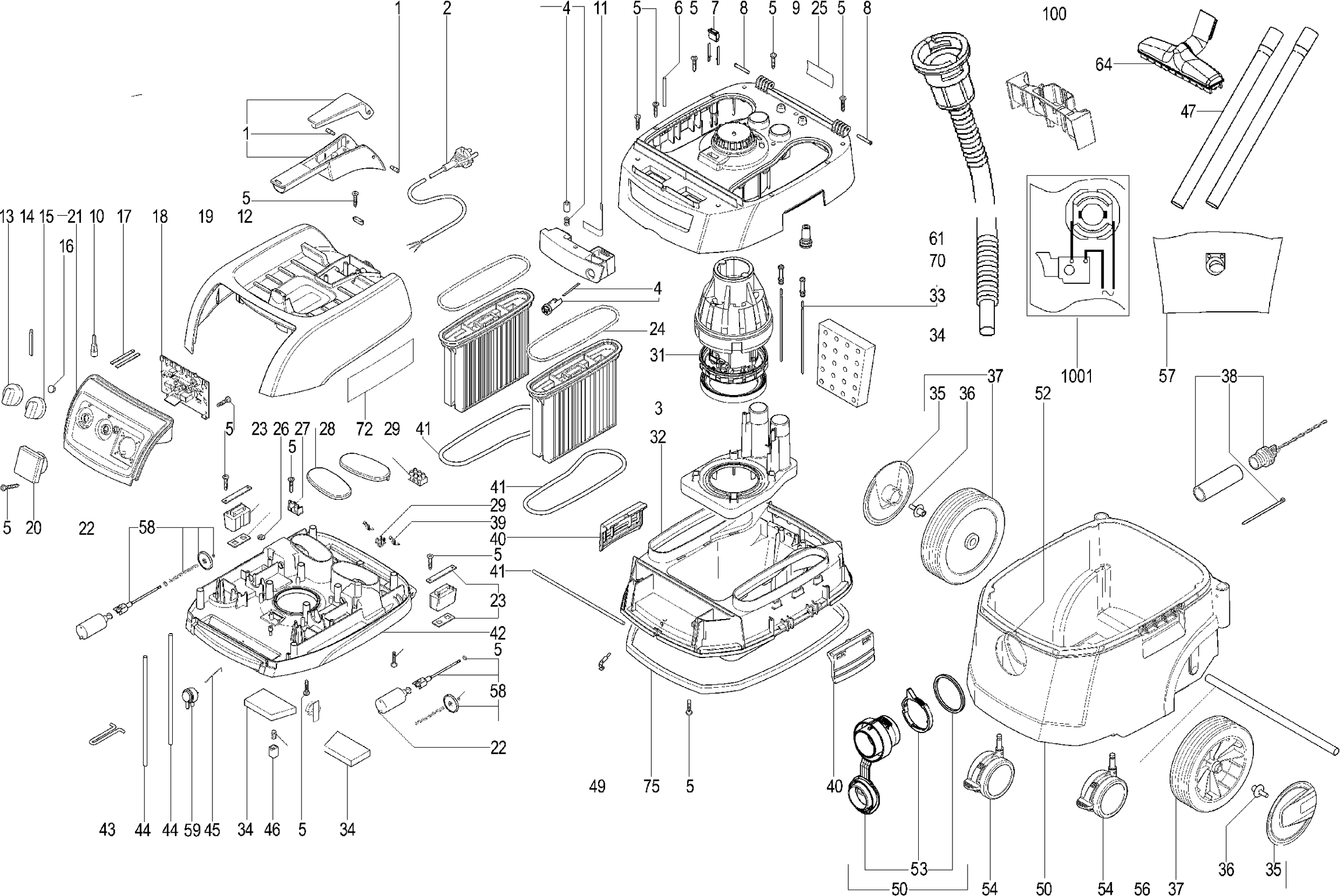

Technical drawing of model Metabo 02059000 (ASR35HACP)
Spare parts list of model Metabo 02059000 (ASR35HACP)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Greep compl. | ||||
| 1 | 316049040 | 26.95 | 32.61 | |
| Cable with plug, 230V | ||||
| 2 | 344530060 | 53.86 | 65.17 | |
| No information available, not orderable | ||||
| 3 | 630326000 | |||
| Locking device compl. | ||||
| 4 | 316049030 | 32.27 | 39.05 | |
| Particle board screw | ||||
| 5 | 141120130 | 1.68 | 2.03 | |
| Tubular rivet | ||||
| 6 | 341059770 | 3.71 | 4.49 | |
| Motorstekker compl. | ||||
| 7 | 316049190 | 3.02 | 3.65 | |
| Lagerstift | ||||
| 8 | 341515560 | 3.02 | 3.65 | |
| Motor housing | ||||
| 9 | 343430460 | 121.19 | 146.64 | |
| Shift axle | ||||
| 10 | 341604280 | 7.22 | 8.74 | |
| Flat spring | ||||
| 11 | 342002960 | 2.28 | 2.76 | |
| Cable clip | ||||
| 12 | 343378310 | 1.56 | 1.89 | |
| Schakelhendel | ||||
| 13 | 343430390 | 10.38 | 12.56 | |
| Shift axle | ||||
| 14 | 341604270 | 3.71 | 4.49 | |
| Switch pusher | ||||
| 15 | 343430970 | 5.87 | 7.10 | |
| Lichtdiode | ||||
| 16 | 343072320 | 10.38 | 12.56 | |
| Schakelveer | ||||
| 17 | 342050950 | 10.38 | 12.56 | |
| Elektronische unit | ||||
| 18 | 343084240 | 187.73 | 227.15 | |
| Cover | ||||
| 19 | 343430410 | 94.12 | 113.89 | |
| Machine-contactdoos | ||||
| 20 | 344498770 | 67.33 | 81.47 | |
| Frontplaat | ||||
| 21 | 343430420 | 60.59 | 73.31 | |
| Magnet | ||||
| 22 | 316049000 | 53.86 | 65.17 | |
| Shake device compl. | ||||
| 23 | 316049230 | 113.82 | 137.72 | |
| Shake device compl. | ||||
| 23 | 316049020 | 94.12 | 113.89 | |
| Conical nipple TI 15 | ||||
| 24 | 339012360 | 11.74 | 14.21 | |
| Typeplaatje | ||||
| 25 | 338064500 | 1.56 | 1.89 | |
| Washer | ||||
| 26 | 343430440 | 3.71 | 4.49 | |
| Motor power socket | ||||
| 27 | 316049150 | 24.23 | 29.32 | |
| Cover | ||||
| 28 | 344098990 | 3.71 | 4.49 | |
| Terminal Strip 3 pole | ||||
| 29 | 343050030 | 1.68 | 2.03 | |
| Motor Gasket ET | ||||
| 30 | 317004030 | 13.48 | 16.31 | |
| Motor-unit compl. | ||||
| 31 | 317002990 | 201.99 | 244.41 | |
| Onderste deel | ||||
| 32 | 343430470 | 148.53 | 179.72 | |
| Elektrode compl. | ||||
| 33 | 316049200 | 18.80 | 22.75 | |
| Filter set | ||||
| 34 | 344098980 | 21.64 | 26.18 | |
| Blank faceplate | ||||
| 35 | 343430500 | 5.87 | 7.10 | |
| Plug | ||||
| 36 | 343369660 | 1.68 | 2.03 | |
| Wiel compl. | ||||
| 37 | 316049220 | 37.65 | 45.56 | |
| No longer available, no replacement | ||||
| 38 | 344099040 | |||
| Contact bracket | ||||
| 39 | 339135130 | 21.64 | 26.18 | |
| Latch | ||||
| 40 | 343430480 | 8.89 | 10.76 | |
| Gasket | ||||
| 41 | 344099020 | 21.64 | 26.18 | |
| Conical nipple TI 15 | ||||
| 41 | 339012490 | 5.87 | 7.10 | |
| Draagplaat | ||||
| 42 | 343430450 | 134.27 | 162.47 | |
| Support | ||||
| 43 | 339135140 | 5.87 | 7.10 | |
| Onderdrukslang | ||||
| 44 | 344096320 | 2.28 | 2.76 | |
| Contaktdraad | ||||
| 45 | 339131340 | 1.56 | 1.89 | |
| Drukstuk compl. | ||||
| 46 | 344099050 | 12.23 | 14.80 | |
| No information available, not orderable | ||||
| 47 | 630314000 | |||
| Contact Bridge | ||||
| 49 | 342050960 | 3.71 | 4.49 | |
| Reservoir compl. | ||||
| 50 | 343430490 | 242.14 | 292.99 | |
| Circuit board compl. | ||||
| 51 | 316098440 | 53.86 | 65.17 | |
| Contact pin | ||||
| 52 | 339080840 | 3.71 | 4.49 | |
| Suction piece | ||||
| 53 | 316099070 | 60.59 | 73.31 | |
| Caster | ||||
| 54 | 341201080 | 13.48 | 16.31 | |
| Shaft | ||||
| 56 | 341604290 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 57 | 630325000 | |||
| Trekstang compl. | ||||
| 58 | 316058850 | 18.80 | 22.75 | |
| Pressure sensor | ||||
| 59 | 343084320 | 43.15 | 52.21 | |
| Gasket | ||||
| 61 | 344099730 | 5.18 | 6.27 | |
| Knie-hendel | ||||
| 62 | 341147670 | 100.74 | 121.90 | |
| Floor Suction Nozzle | ||||
| 64 | 343436630 | 48.48 | 58.66 | |
| No information available, not orderable | ||||
| 70 | 631370000 | |||
| AANDUIDINGSPLAATJE H | ||||
| 72 | 144208700 | 21.23 | 25.69 | |
| RUBBER PAD | ||||
| 75 | 344000520 | 18.80 | 22.75 | |
| Buishouder | ||||
| 100 | 343446000 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338505510 | |||
